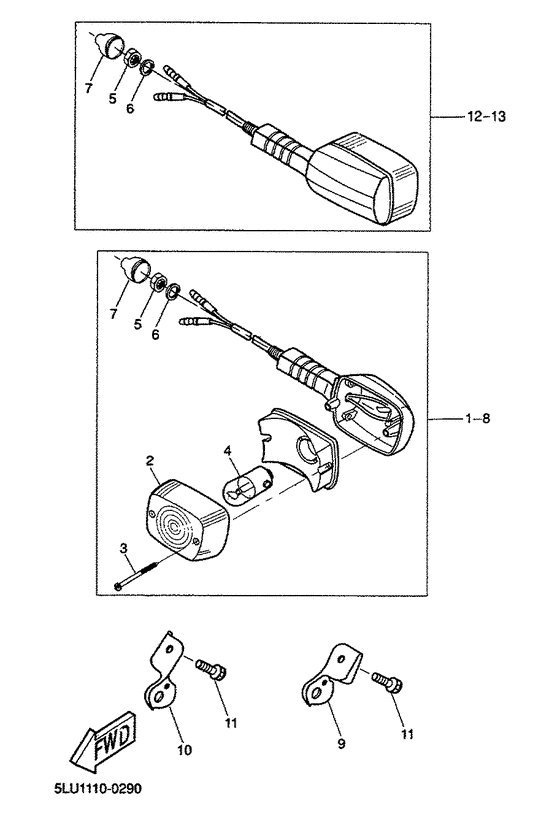

Flasher light Diagram Yamaha CW50 BW'S
- Year
- 2000
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5MS1
- Sales region
- Canada (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4UY-H3310-00-00 Front Flasher Light Assy 1 |
4UY-H3310-00-00 |
US $81.09 |
||
|
02
|
02
4UY-H3312-00-00 Lens, Flasher |
4UY-H3312-00-00 |
US $30.33 |
||
|
03
|
03
97701-40530-00 Screw, Tapping |
97701-40530-00 |
from US $2.27 |
||
| replacement | |||||
|
03
|
03
97707-40630-00 Screw, Tapping(3Ah) |
97707-40630-00 |
from US $2.50 |
||
|
04
|
04
NDH-H3311-00-01 Bulb |
NDH-H3311-00-01 |
US $8.91 |
||
| replacement | |||||
|
04
|
04
3NS-83331-00-00 Bulb |
3NS-83331-00-00 |
from US $4.82 |
||
|
05
|
05
95304-12600-00 Nut |
95304-12600-00 |
from US $2.13 |
||
|
06
|
06
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
07
|
07
10V-83365-00-00 Cap |
10V-83365-00-00 |
US $5.38 |
||
| replacement | |||||
|
07
|
07
10V-83365-01-00 Cap |
10V-83365-01-00 |
from US $4.27 |
||
|
08
|
08
4UY-H3320-00-00
Front Flasher Light Assy 2
|
4UY-H3320-00-00 |
— | ||
|
09
|
09
4BX-H3318-00-11 Stay, Flasher 1 |
4BX-H3318-00-11 |
US $14.96 |
||
| replacement | |||||
|
09
|
09
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
4BX-H3328-00-11 Stay, Flasher 2 |
4BX-H3328-00-11 |
US $13.72 |
||
|
11
|
11
95807-08012-00 Bolt, Flange |
95807-08012-00 |
from US $1.18 |
||
| replacement | |||||
|
11
|
11
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
12
|
12
4BX-H3330-00-00
Rear Flasher Light Assy 1
|
4BX-H3330-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
4BX-H3340-00-00
Rear Flasher Light Assy 2
|
4BX-H3340-00-00 |
— | ||
