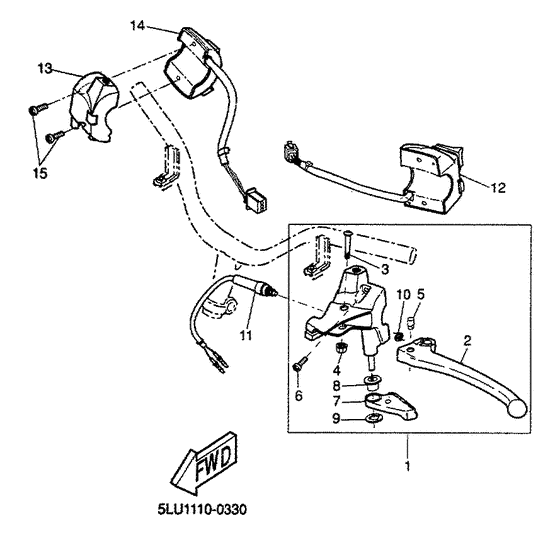

Handle switch & lever Diagram Yamaha CW50 BW'S
- Year
- 2000
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5MS1
- Sales region
- Canada (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4PA-H2910-00-00
Lever Holder Assy (Left)
|
4PA-H2910-00-00 |
— | ||
|
02
|
02
4KH-H3912-00-00 Lever 1 |
4KH-H3912-00-00 |
US $27.97 |
||
|
03
|
03
3VL-H3915-00-00 Screw, Lever Fitting |
3VL-H3915-00-00 |
from US $3.44 |
||
|
04
|
04
3VL-H3916-00-00 Nut, Lever Fitting |
3VL-H3916-00-00 |
from US $2.98 |
||
|
05
|
05
3VL-F636A-00-00 End, Wire 1 |
3VL-F636A-00-00 |
US $8.82 |
||
|
06
|
06
3VL-H3945-00-00 Bolt, Lever |
3VL-H3945-00-00 |
from US $3.12 |
||
|
07
|
07
3VL-H3941-00-00 Lever, Starter |
3VL-H3941-00-00 |
US $19.13 |
||
|
08
|
08
3VL-H3982-00-00 Collar, Decompression |
3VL-H3982-00-00 |
from US $4.96 |
||
|
09
|
09
3VL-H3943-00-00 Washer, Starter |
3VL-H3943-00-00 |
from US $1.98 |
||
|
10
|
10
4KH-H3962-00-00 Spring |
4KH-H3962-00-00 |
from US $2.27 |
||
|
11
|
11
5AD-H3980-01-00 Stop Switch Asy |
5AD-H3980-01-00 |
US $34.70 |
||
| replacement | |||||
|
11
|
11
5XL-H3980-00-00 Front Stop Switch |
5XL-H3980-00-00 |
US $36.95 |
||
|
12
|
12
4CA-H3976-11-00 Switch, Handle 1 |
4CA-H3976-11-00 |
US $112.72 |
||
| replacements | |||||
|
12
|
12
4CA-H3976-20-00 Switch Handle 1 |
4CA-H3976-20-00 |
US $112.72 |
||
|
12
|
12
4CA-H3976-21-00
Switch Handle 1
|
4CA-H3976-21-00 |
— | ||
|
13
|
13
4CU-H3987-01-00 Case, Switch Lower |
4CU-H3987-01-00 |
from US $44.90 |
||
|
14
|
14
4RW-H3972-00-00 Switch, Handle 4 |
4RW-H3972-00-00 |
US $80.73 |
||
| replacement | |||||
|
14
|
14
4RW-H3972-10-00 Switch, Handle 4 |
4RW-H3972-10-00 |
US $80.73 |
||
|
15
|
15
3VL-H3945-00-00 Bolt, Lever |
3VL-H3945-00-00 |
from US $3.12 |
||
