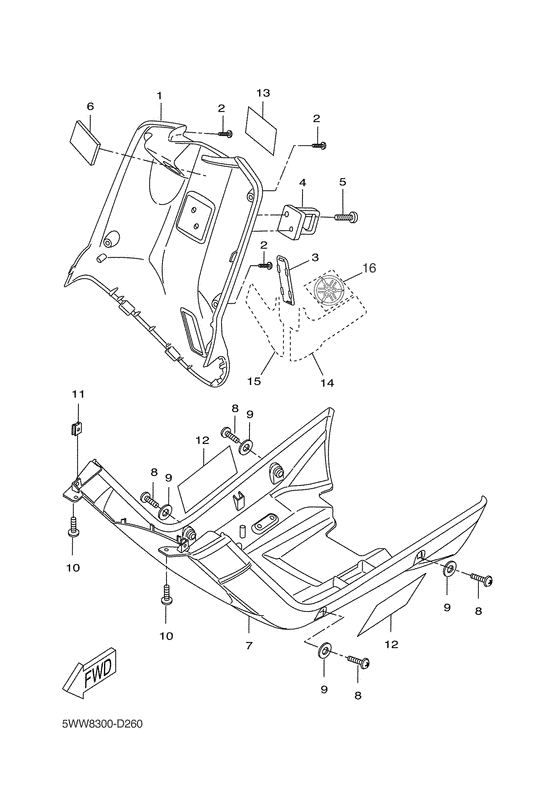

Leg shield Diagram Yamaha CW50 BW'S Grand Prix
- Year
- 2005
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 5WW8
- Sales region
- France (010)
- Engine Capacity
- 50
- Model
- CW50S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5WW-F8311-01-P6
Leg Shield 1
Smx |
5WW-F8311-01-P6 |
— | ||
|
02
|
02
90167-05X01-00 Screw M5-16 |
90167-05X01-00 |
from US $5.58 |
||
|
03
|
03
3WV-F8349-00-PB
Cap
Smx |
3WV-F8349-00-PB |
— | ||
|
04
|
04
5MF-F8379-00-00
Hook
|
5MF-F8379-00-00 |
— | ||
|
05
|
05
90111-06X00-00
Bolt,hex. Socket Button
|
90111-06X00-00 |
— | ||
|
06
|
06
5WW-F834E-00-00
Damper 3
|
5WW-F834E-00-00 |
— | ||
|
07
|
07
5WW-F8385-70-00
Cover, Under
|
5WW-F8385-70-00 |
— | ||
|
08
|
08
4SB-F8382-00-00
Screw, Special
|
4SB-F8382-00-00 |
— | ||
|
09
|
09
90201-06X08-00
Washer, Plate
|
90201-06X08-00 |
— | ||
|
10
|
10
90167-05X02-00 Screw, TappingScrew, tapping |
90167-05X02-00 |
US $4.11 |
||
|
11
|
11
901-8305X-00-00
Nut, Spring
|
901-8305X-00-00 |
— | ||
| replacement | |||||
|
11
|
11
901-8305X-03-00 Nut, Spring |
901-8305X-03-00 |
US $10.06 |
||
|
12
|
12
5WW-F8328-20-00
Emblem
|
5WW-F8328-20-00 |
— | ||
|
13
|
13
5WW-F1568-00-00 Label, Warning |
5WW-F1568-00-00 |
from US $14.73 |
||
| replacement | |||||
|
13
|
13
5WW-F1568-01-00 Label, Warning |
5WW-F1568-01-00 |
from US $14.73 |
||
|
14
|
14
5WW-F834C-00-00
Emblem, 1
|
5WW-F834C-00-00 |
— | ||
|
15
|
15
5WW-F835C-00-00
Emblem 2
|
5WW-F835C-00-00 |
— | ||
|
16
|
16
5WW-F836D-00-00
Tuning Fork Mark
|
5WW-F836D-00-00 |
— | ||
