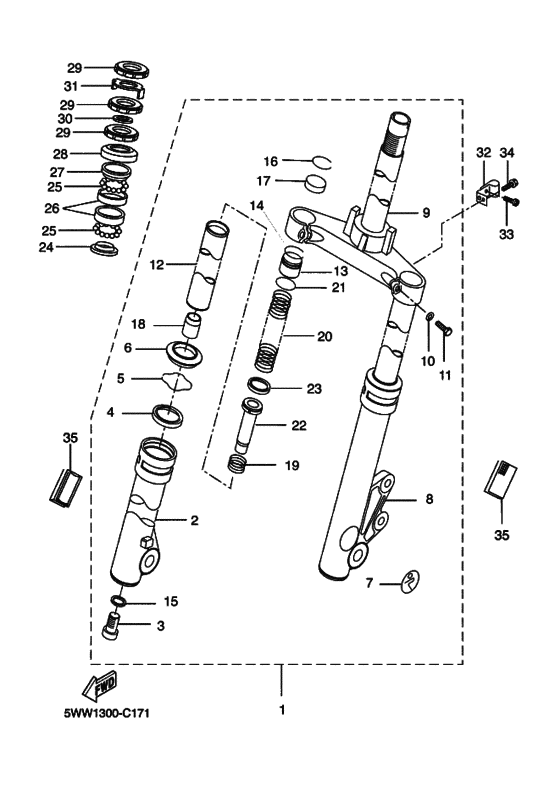

Front fork Diagram Yamaha CW50 BW'S
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 5WWB
- Sales region
- Europe (020)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5WW-F3100-00-00
Front Fork Assy
(PAIOLI) |
5WW-F3100-00-00 |
— | ||
|
2
|
2
5WW-F3136-00-00
Tube, Outer (R.h)
(PAIOLI) |
5WW-F3136-00-00 |
— | ||
|
3
|
3
5WW-F3181-00-00
Bolt, Hexagon Socket Head
(PAIOLI) |
5WW-F3181-00-00 |
— | ||
|
4
|
4
4TD-F3145-00-00
Oil Seal
(PAIOLI) |
4TD-F3145-00-00 |
— | ||
|
5
|
5
5WW-F3156-00-00
Ring, Snap
(PAIOLI) |
5WW-F3156-00-00 |
— | ||
|
6
|
6
5WW-F3144-00-00
Seal, Dust
(PAIOLI) |
5WW-F3144-00-00 |
— | ||
|
7
|
7
NU6-23108-00-00
Emblem
(PAIOLI) |
NU6-23108-00-00 |
— | ||
|
8
|
8
5WW-F3126-00-00
Tube, Outer (L.h)
(PAIOLI) |
5WW-F3126-00-00 |
— | ||
|
9
|
9
5WW-F3340-00-00
Under Bracket Comp
(PAIOLI) |
5WW-F3340-00-00 |
— | ||
|
10
|
10
5WW-F3112-00-00
Washer, Cap
(PAIOLI) |
5WW-F3112-00-00 |
— | ||
|
11
|
11
5WW-F3394-00-00
Bolt, Special
(PAIOLI) |
5WW-F3394-00-00 |
— | ||
|
12
|
12
5WW-F3110-00-00
Inner Tube Comp.1
(PAIOLI) |
5WW-F3110-00-00 |
— | ||
|
13
|
13
5WW-F3111-00-00
Bolt, Cap + O-Ring
(PAIOLI) |
5WW-F3111-00-00 |
— | ||
|
14
|
14
5WW-F3183-00-00
Circlip
(PAIOLI) |
5WW-F3183-00-00 |
— | ||
|
15
|
15
5WW-F3165-00-00
Washer, Felt
(PAIOLI) |
5WW-F3165-00-00 |
— | ||
|
16
|
16
5WW-F3153-00-00
Ring, Snap
(PAIOLI) |
5WW-F3153-00-00 |
— | ||
|
17
|
17
5WW-F3154-00-00
Cap
(PAIOLI) |
5WW-F3154-00-00 |
— | ||
|
18
|
18
5WW-F3173-00-00
Spindle, Taper
(PAIOLI) |
5WW-F3173-00-00 |
— | ||
|
19
|
19
5WW-F3151-00-00
Spring, Rebound
(PAIOLI) |
5WW-F3151-00-00 |
— | ||
|
20
|
20
5WW-F3141-00-00
Spring, Front Fork
(PAIOLI) |
5WW-F3141-00-00 |
— | ||
|
21
|
21
5WW-F3147-00-00
O-Ring
(PAIOLI) |
5WW-F3147-00-00 |
— | ||
|
22
|
22
5WW-F3171-00-00
Piston, Front Fork
(PAIOLI) |
5WW-F3171-00-00 |
— | ||
|
23
|
23
5WW-F3157-00-00
Ring, Piston
(PAIOLI) |
5WW-F3157-00-00 |
— | ||
|
24
|
24
22F-23414-01-00 Race, Ball 4 |
22F-23414-01-00 |
from US $8.22 |
||
| replacement | |||||
|
24
|
24
BP2-23414-00-00 Race, Ball |
BP2-23414-00-00 |
from US $7.45 |
||
|
25
|
25
22F-2341E-00-00 Retainer, Ball Bearing |
22F-2341E-00-00 |
from US $14.14 |
||
| replacement | |||||
|
25
|
25
BP2-2341E-00-00 Retainer, Ball Bearing |
BP2-2341E-00-00 |
from US $14.14 |
||
|
26
|
26
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
26
|
26
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
27
|
27
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
27
|
27
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
28
|
28
3VP-23416-00-00 Cover, Ball Race 2 |
3VP-23416-00-00 |
US $2.83 |
||
|
29
|
29
90179-25X00-00
Nut
|
90179-25X00-00 |
— | ||
|
30
|
30
90202-26X00-00 Washer, Plate |
90202-26X00-00 |
US $1.84 |
||
|
31
|
31
5DS-F3418-00-00 Washer, Special |
5DS-F3418-00-00 |
US $5.38 |
||
|
32
|
32
5WW-F5887-02-00
Holder, Brake Hose
|
5WW-F5887-02-00 |
— | ||
|
33
|
33
90157-05X10-00
Screw, Pan Head
|
90157-05X10-00 |
— | ||
|
34
|
34
90109-06X09-00
Bolt
|
90109-06X09-00 |
— | ||
| replacement | |||||
|
34
|
34
90109-06X05-00 Bolt |
90109-06X05-00 |
US $8.08 |
||
|
35
|
35
5HE-H5111-00-00 Reflector, Front 1 |
5HE-H5111-00-00 |
US $18.99 |
||
