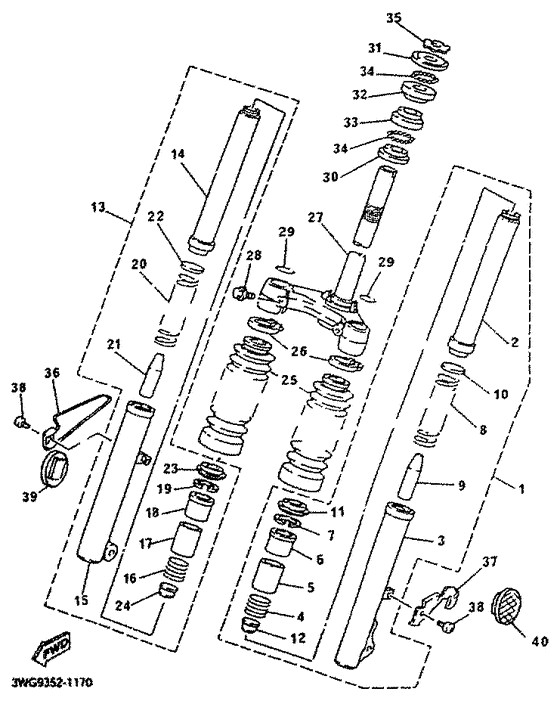

Front fork Diagram Yamaha CY50 Jog R
- Year
- 2001
- Model code
- 3WG9
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- CY50R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02
|
02
4CX-F3110-00-00
Inner Tube Comp.1
|
4CX-F3110-00-00 |
— | ||
|
03
|
03
4CX-F3106-00-33
Outer Tube Comp
(ur yamaha black) |
4CX-F3106-00-33 |
— | ||
|
04
|
04
4CX-F3151-00-00
Spring, Rebound
|
4CX-F3151-00-00 |
— | ||
|
05
|
05
4CX-F3113-00-00
Collar
|
4CX-F3113-00-00 |
— | ||
|
06
|
06
4CX-F3125-00-00
Metal, Slide 1
|
4CX-F3125-00-00 |
— | ||
|
07
|
07
93450-34064-00 Circlip, Inner |
93450-34064-00 |
US $6.38 |
||
|
08
|
08
4CX-F3141-00-00
Spring, Front Fork
|
4CX-F3141-00-00 |
— | ||
|
09
|
09
4CX-F3195-00-00
Rubber
|
4CX-F3195-00-00 |
— | ||
|
10
|
10
4CX-F3143-00-00
Seat, Spring Lower
|
4CX-F3143-00-00 |
— | ||
|
11
|
11
4CX-F3144-00-00
Seal, Dust
|
4CX-F3144-00-00 |
— | ||
|
12
|
12
4CX-F3154-00-00
Cap
|
4CX-F3154-00-00 |
— | ||
|
13
|
13
4CX-F3103-00-33
Front Fork Assy (R.h)
(ur yamaha black) |
4CX-F3103-00-33 |
— | ||
|
14
|
14
4CX-F3110-00-00
Inner Tube Comp.1
|
4CX-F3110-00-00 |
— | ||
|
15
|
15
4CX-F3107-00-33
Outer Tube Comp. (R.h)
(ur yamaha black) |
4CX-F3107-00-33 |
— | ||
|
16
|
16
4CX-F3151-00-00
Spring, Rebound
|
4CX-F3151-00-00 |
— | ||
|
17
|
17
4CX-F3113-00-00
Collar
|
4CX-F3113-00-00 |
— | ||
|
18
|
18
4CX-F3125-00-00
Metal, Slide 1
|
4CX-F3125-00-00 |
— | ||
|
19
|
19
93450-34064-00 Circlip, Inner |
93450-34064-00 |
US $6.38 |
||
|
20
|
20
4CX-F3141-00-00
Spring, Front Fork
|
4CX-F3141-00-00 |
— | ||
|
21
|
21
4CX-F3195-00-00
Rubber
|
4CX-F3195-00-00 |
— | ||
|
22
|
22
4CX-F3143-00-00
Seat, Spring Lower
|
4CX-F3143-00-00 |
— | ||
|
23
|
23
4CX-F3144-00-00
Seal, Dust
|
4CX-F3144-00-00 |
— | ||
|
24
|
24
4CX-F3154-00-00
Cap
|
4CX-F3154-00-00 |
— | ||
|
25
|
25
4CX-F3191-00-00
Boot
|
4CX-F3191-00-00 |
— | ||
|
26
|
26
90464-13804-00
Clamp
|
90464-13804-00 |
— | ||
|
27
|
27
4CX-F3340-00-00
Under Bracket Comp
|
4CX-F3340-00-00 |
— | ||
|
28
|
28
9582L-10030-00
Bolt, Flange
|
9582L-10030-00 |
— | ||
|
29
|
29
4CX-F3153-00-00
Ring, Snap
|
4CX-F3153-00-00 |
— | ||
|
30
|
30
1TK-F3414-01-00
Race Ball 4
|
1TK-F3414-01-00 |
— | ||
|
31
|
31
3WG-F3411-00-00
Race, Ball 1
|
3WG-F3411-00-00 |
— | ||
|
32
|
32
2E9-23412-00-00 Race, Ball 2 |
2E9-23412-00-00 |
from US $22.67 |
||
| replacement | |||||
|
32
|
32
2SA-23412-00-00 |
2SA-23412-00-00 |
from US $22.67 |
||
|
33
|
33
2E9-23413-01-00 Race, Ball 3 |
2E9-23413-01-00 |
US $24.41 |
||
| replacement | |||||
|
33
|
33
2SA-23413-00-00 RACE, BALL 3 |
2SA-23413-00-00 |
from US $24.41 |
||
|
34
|
34
93505-32002-00 Ball |
93505-32002-00 |
from US $1.84 |
||
|
35
|
35
1TK-F3454-00-00
Nut, Fitting 2
|
1TK-F3454-00-00 |
— | ||
|
36
|
36
4CX-F3317-00-00
Holder, Cable
|
4CX-F3317-00-00 |
— | ||
|
37
|
37
4CX-F5875-00-00
Holder, Brake Hose 1
|
4CX-F5875-00-00 |
— | ||
|
38
|
38
9890L-06010-00 Screw, Bind |
9890L-06010-00 |
from US $0.67 |
||
|
39
|
39
4SJ-H5111-00-00
Reflector, Front 1
|
4SJ-H5111-00-00 |
— | ||
| replacement | |||||
|
39
|
39
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
40
|
40
4SJ-H5111-00-00
Reflector, Front 1
|
4SJ-H5111-00-00 |
— | ||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
