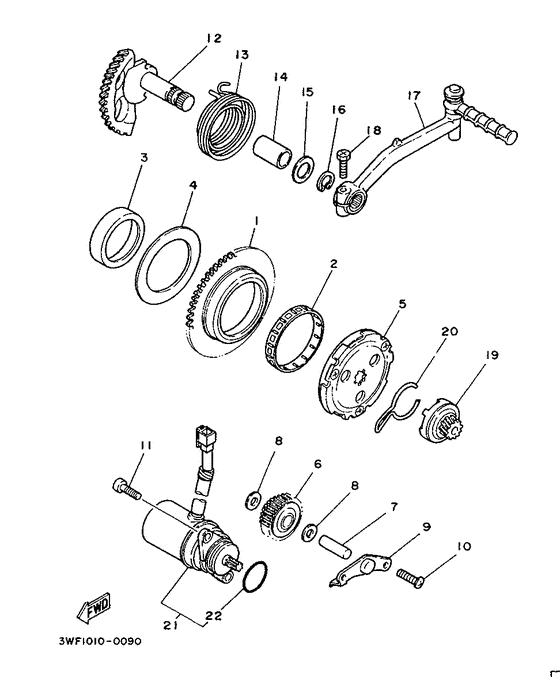

Starter Diagram Yamaha CY90 Jog 90
- Year
- 1991
- Colour
- Heat Red (HTR; 00EY)
- Model code
- 4CX1
- Sales region
- Spain (999)
- Engine Capacity
- 90
- Model
- CY90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3WF-15524-00-00 Wheel, Starter (68T) |
3WF-15524-00-00 |
US $149.21 |
||
| replacement | |||||
|
01
|
01
3VR-15524-00-00 Wheel, Starter |
3VR-15524-00-00 |
US $149.21 |
||
|
02
|
02
93310-255B7-00 Bearing |
93310-255B7-00 |
from US $28.62 |
||
|
03
|
03
3WF-15538-00-00 Boss, Gear 2 |
3WF-15538-00-00 |
from US $19.55 |
||
|
04
|
04
90201-551P8-00 Washer, Plate |
90201-551P8-00 |
from US $7.72 |
||
|
05
|
05
3WF-15570-01-00 Starter Clutch Assy |
3WF-15570-01-00 |
US $102.12 |
||
|
06
|
06
3WF-15650-00-00 Idle Gear Assy (47T) |
3WF-15650-00-00 |
US $59.89 |
||
|
07
|
07
50M-13342-00-00 Shaft |
50M-13342-00-00 |
from US $5.58 |
||
| replacement | |||||
|
07
|
07
3KJ-15659-00-00 Shaft |
3KJ-15659-00-00 |
from US $5.58 |
||
|
08
|
08
90201-084M4-00 Washer, Plate (90201-08088-00) |
90201-084M4-00 |
US $1.70 |
||
| replacement | |||||
|
08
|
08
90201-08088-00 Washer, Plate 2562171800 |
90201-08088-00 |
from US $1.71 |
||
|
09
|
09
3KJ-15532-00-00 Plate, Idle Gear |
3KJ-15532-00-00 |
from US $4.23 |
||
|
10
|
10
98501-06012-00 Screw Pan Head |
98501-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
11
|
11
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
11
|
11
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
12
|
12
3KJ-15601-00-00 Kick Shaft Assembly |
3KJ-15601-00-00 |
from US $67.59 |
||
|
13
|
13
905-08326-09-00 Spring, Torsion (32N) |
905-08326-09-00 |
from US $8.08 |
||
|
14
|
14
90380-15083-00 Bush, Solid |
90380-15083-00 |
from US $1.62 |
||
| replacement | |||||
|
14
|
14
90380-15817-00 Bush, Solid |
90380-15817-00 |
from US $4.25 |
||
|
15
|
15
90201-154E9-00 Washer, Plate (5G3) |
90201-154E9-00 |
from US $2.77 |
||
|
16
|
16
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.18 |
||
|
17
|
17
4CX-E5620-00-00
Kick Crank Assy
|
4CX-E5620-00-00 |
— | ||
| replacement | |||||
|
17
|
17
4CX-X5620-00-00
Kick Start
|
4CX-X5620-00-00 |
— | ||
|
18
|
18
97311-06025-00 Bolt |
97311-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
19
|
19
3AA-15631-00-00 Gear, Kick Pinion (10T) |
3AA-15631-00-00 |
from US $44.89 |
||
| replacement | |||||
|
19
|
19
1NT-15630-01-00 Kick Pinion Assy |
1NT-15630-01-00 |
from US $71.57 |
||
|
20
|
20
32N-15673-00-00 Clip |
32N-15673-00-00 |
from US $7.93 |
||
|
21
|
21
3WF-81800-00-00
Starting Motor Assy
|
3WF-81800-00-00 |
— | ||
| replacement | |||||
|
21
|
21
3WF-81800-01-00
Starting Motor Assy
|
3WF-81800-01-00 |
— | ||
|
22
|
22
93210-23614-00 O-Ring |
93210-23614-00 |
from US $1.81 |
||
