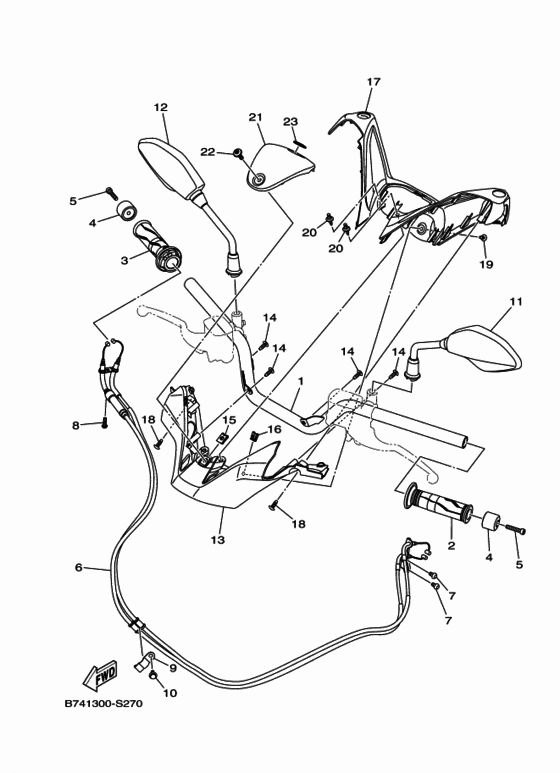

Steering handle & cable Diagram Yamaha CZD300 X-MAX
- Year
- 2017
- Colour
- Mat Dark Grayish Orange Me 1
- Model code
- B749
- Sales region
- Europe (010)
- Engine Capacity
- 300
- Color Variant
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
B74-F6110-00-00 HANDLE COMP. |
B74-F6110-00-00 |
from US $36.32 |
||
|
2
|
2
2DP-F6241-00-00 Grip |
2DP-F6241-00-00 |
from US $5.06 |
||
|
3
|
3
2DP-F6240-00-00 Grip Assy |
2DP-F6240-00-00 |
from US $4.48 |
||
|
4
|
4
1PA-F6246-10-00 END, GRIP |
1PA-F6246-10-00 |
from US $5.24 |
||
|
5
|
5
913-17060-30-00
Bolt
|
913-17060-30-00 |
— | ||
| replacement | |||||
|
5
|
5
90110-06138-00 Bolt |
90110-06138-00 |
from US $1.25 |
||
|
6
|
6
B74-F6301-00-00 THROTTLE CABLE ASSY |
B74-F6301-00-00 |
from US $55.98 |
||
|
7
|
7
92012-06010-00 Bolt, Button Head |
92012-06010-00 |
from US $1.66 |
||
|
8
|
8
92017-05016-00 Bolt, Button Head |
92017-05016-00 |
from US $1.56 |
||
|
9
|
9
B74-F637G-00-00 HOLDER, WIRE |
B74-F637G-00-00 |
from US $3.40 |
||
|
10
|
10
95022-06012-00 Bolt, Flange |
95022-06012-00 |
from US $1.18 |
||
|
11
|
11
B74-F6280-00-00 REAR VIEW MIRROR ASS |
B74-F6280-00-00 |
from US $35.98 |
||
|
12
|
12
B74-F6290-00-00 REAR VIEW MIRROR ASS |
B74-F6290-00-00 |
from US $35.98 |
||
|
13
|
13
B74-F6144-00-00 COVER, HANDLEBAR LOW |
B74-F6144-00-00 |
from US $27.34 |
||
|
14
|
14
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
14
|
14
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
15
|
15
901-83068-18-00 Nut, Spring |
901-83068-18-00 |
from US $0.71 |
||
|
16
|
16
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
16
|
16
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
17
|
17
B74-F6213-00-00 COVER, UPPER |
B74-F6213-00-00 |
from US $27.77 |
||
|
18
|
18
90167-05076-00 Screw, Tapping |
90167-05076-00 |
from US $1.66 |
||
|
19
|
19
90160-05808-00 Screw, Round Tapping |
90160-05808-00 |
from US $1.39 |
||
|
20
|
20
90269-06816-00 Rivet |
90269-06816-00 |
from US $1.39 |
||
| replacement | |||||
|
20
|
20
902-69060-81-00 Rivet |
902-69060-81-00 |
from US $2.02 |
||
|
21
|
21
B74-F6145-00-P1 COVER, HANDLE UPPERMNM3 FOR WM6,MDNOM1 |
B74-F6145-00-P1 |
from US $21.68 |
||
|
22
|
22
901-49061-04-00 Screw |
901-49061-04-00 |
from US $1.56 |
||
|
23
|
23
B74-F836B-00-00 TUNING FORK MARK |
B74-F836B-00-00 |
from US $7.85 |
||
