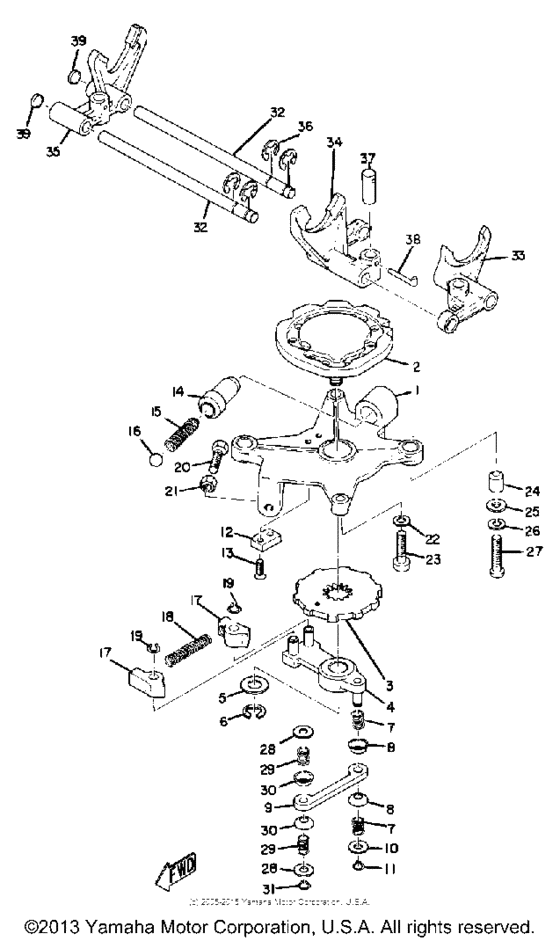

Shift shaft (A) Diagram Yamaha DS
- Year
- 1970
- Sales region
- USA
- Engine Capacity
- 600
- Model
- DS6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
170-18351-00-00
Plate, Cam Fitting
|
170-18351-00-00 |
— | ||
|
2
|
2
152-18331-00-00
Plate, Shift Cam
|
152-18331-00-00 |
— | ||
|
3
|
3
156-18333-00-00
Plate, Working
|
156-18333-00-00 |
— | ||
|
4
|
4
156-18180-00-00
Pawl Holder Assembly
|
156-18180-00-00 |
— | ||
|
5
|
5
150-18334-00-07
Shim
|
150-18334-00-07 |
— | ||
|
5
|
5
150-18334-00-08
Shim
|
150-18334-00-08 |
— | ||
|
5
|
5
150-18334-00-09
Shim, Shifter Cam
|
150-18334-00-09 |
— | ||
|
5
|
5
150-18334-00-10
Shim
|
150-18334-00-10 |
— | ||
|
6
|
6
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.42 |
||
|
7
|
7
905-01050-21-00
Spring, Compression
|
905-01050-21-00 |
— | ||
|
8
|
8
902-09060-83-00
Washer, Spec''l Shap
|
902-09060-83-00 |
— | ||
|
9
|
9
150-18335-00-00
Link, Shift
|
150-18335-00-00 |
— | ||
|
10
|
10
902-01060-46-00
Washer, Plate
|
902-01060-46-00 |
— | ||
|
11
|
11
150-18189-00-00
Clip, Pawl Lock
|
150-18189-00-00 |
— | ||
|
12
|
12
150-18352-00-00
Plate, Pawl
|
150-18352-00-00 |
— | ||
|
13
|
13
98701-04012-00 Screw, Flat Head |
98701-04012-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.36 |
||
|
14
|
14
150-18587-00-00
Bush, Stopper
|
150-18587-00-00 |
— | ||
|
15
|
15
905-01160-98-00
Spring, Compression
|
905-01160-98-00 |
— | ||
|
16
|
16
93513-32008-00 Ball 13/3213/32 |
93513-32008-00 |
US $2.55 |
||
|
17
|
17
150-18182-00-00
Pawl, Shifter
|
150-18182-00-00 |
— | ||
|
18
|
18
905-01060-26-00
Spring, Compression
|
905-01060-26-00 |
— | ||
|
19
|
19
150-18189-00-00
Clip, Pawl Lock
|
150-18189-00-00 |
— | ||
|
20
|
20
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
20
|
20
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
21
|
21
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.36 |
||
| replacement | |||||
|
21
|
21
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
23
|
23
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
23
|
23
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
24
|
24
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
24
|
24
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.70 |
||
|
24
|
24
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
25
|
25
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
27
|
27
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
27
|
27
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
28
|
28
902-01060-46-00
Washer, Plate
|
902-01060-46-00 |
— | ||
|
29
|
29
905-01050-21-00
Spring, Compression
|
905-01050-21-00 |
— | ||
|
30
|
30
902-09060-83-00
Washer, Spec''l Shap
|
902-09060-83-00 |
— | ||
|
31
|
31
150-18189-00-00
Clip, Pawl Lock
|
150-18189-00-00 |
— | ||
|
32
|
32
150-18318-00-00
Shaft, Shifter
|
150-18318-00-00 |
— | ||
|
33
|
33
152-18311-00-00
Fork, Shift 1
|
152-18311-00-00 |
— | ||
|
34
|
34
152-18312-00-00
Fork, Shift 2
|
152-18312-00-00 |
— | ||
|
35
|
35
152-18313-00-00
Fork, Shift 3
|
152-18313-00-00 |
— | ||
|
36
|
36
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.42 |
||
|
37
|
37
150-18316-00-00
Rotor
|
150-18316-00-00 |
— | ||
|
38
|
38
902-49020-03-00
Pin, Spec''l Shape
|
902-49020-03-00 |
— | ||
|
39
|
39
903-34100-06-00
Plug, Straight
|
903-34100-06-00 |
— | ||
