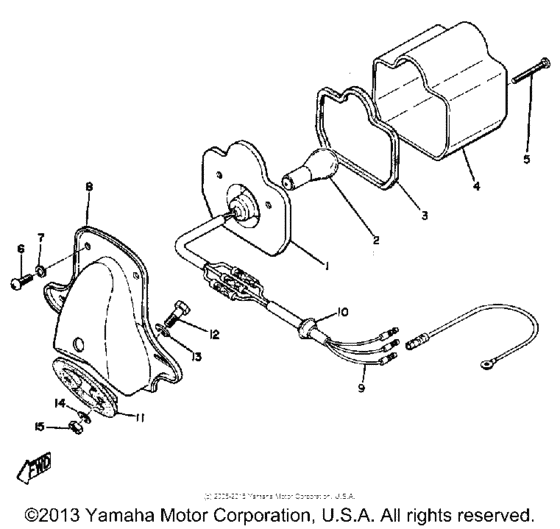

Tail lamp Diagram Yamaha DS
- Year
- 1970
- Sales region
- USA
- Engine Capacity
- 600
- Model
- DS6
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
168-84710-61-00
Taillight Unit Assembly
|
168-84710-61-00 |
— | ||
|
1
|
1
168-84711-01-00
Base, Taillight
|
168-84711-01-00 |
— | ||
|
2
|
2
137-84714-61-00 Bulb (12V-21/5W)12V-21/5W |
137-84714-61-00 |
from US $4.53 |
||
| replacement | |||||
|
2
|
2
137-84714-61-XX
Bulb (12V-21/5W)
12V-21/5W |
137-84714-61-XX |
— | ||
|
3
|
3
168-84712-60-00
Seat, Base
|
168-84712-60-00 |
— | ||
|
4
|
4
168-84721-60-00
Lens, Taillight
|
168-84721-60-00 |
— | ||
|
5
|
5
3AA-84331-00-00
Screw, Rim Adjusting
|
3AA-84331-00-00 |
— | ||
|
6
|
6
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
6
|
6
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
8
|
8
168-84751-00-35
Bracket, License
|
168-84751-00-35 |
— | ||
|
9
|
9
170-84717-00-00
Cord, Taillight
|
170-84717-00-00 |
— | ||
|
10
|
10
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.84 |
||
|
11
|
11
170-84753-00-00
Damper
|
170-84753-00-00 |
— | ||
|
12
|
12
90109-06017-00 Bolt |
90109-06017-00 |
from US $4.11 |
||
|
13
|
13
90201-085E6-00 Washer Plate |
90201-085E6-00 |
from US $4.39 |
||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
15
|
15
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
