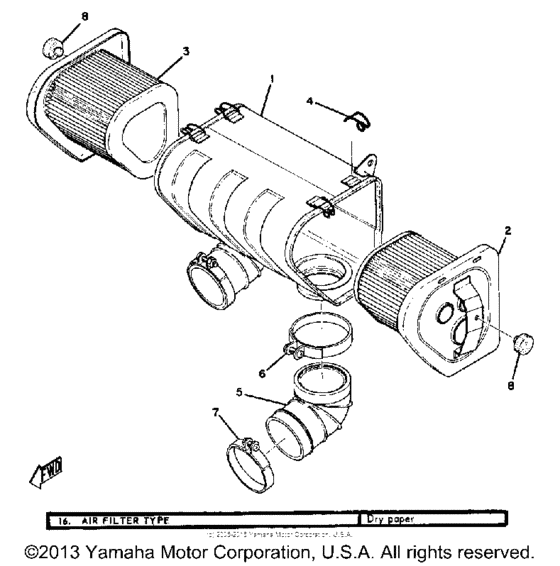

Air cleaner Diagram Yamaha DS
- Year
- 1969
- Sales region
- USA
- Engine Capacity
- 600
- Model
- DS6
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
246-14411-00-33
Case, Air Cleaner 1
|
246-14411-00-33 |
— | ||
|
2
|
2
246-14451-00-00
Element, Air Clnr
|
246-14451-00-00 |
— | ||
|
3
|
3
246-14461-00-00
Element, Air Clnr 2
|
246-14461-00-00 |
— | ||
|
4
|
4
168-14424-00-00
Clip, Cap Fitting
|
168-14424-00-00 |
— | ||
|
5
|
5
246-14453-00-00
Joint, Air Clnr 1
|
246-14453-00-00 |
— | ||
|
6
|
6
904-60492-48-00
Clamp, Hose
ISO |
904-60492-48-00 |
— | ||
|
7
|
7
90460-54137-00 Hose Clamp Assy |
90460-54137-00 |
from US $4.39 |
||
| replacement | |||||
|
7
|
7
90450-54008-00 Hose Clamp Assy |
90450-54008-00 |
from US $4.39 |
||
|
8
|
8
141-21717-00-00 Damper |
141-21717-00-00 |
from US $3.26 |
||
