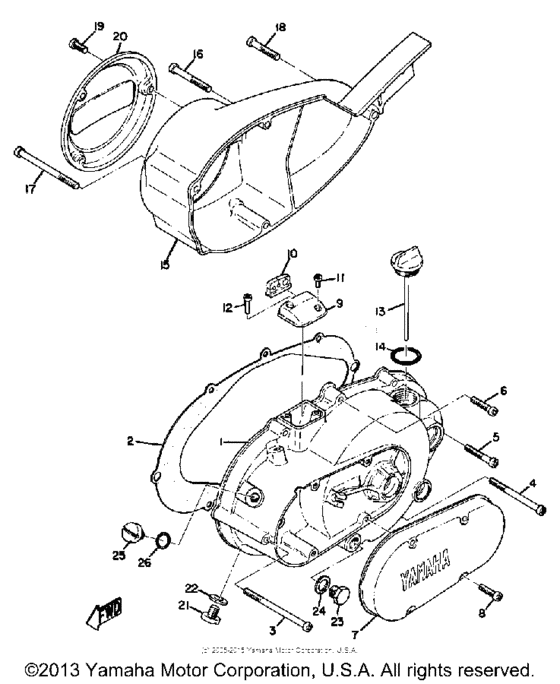

Crankcase cover Diagram Yamaha DS
- Year
- 1969
- Sales region
- USA
- Engine Capacity
- 600
- Model
- DS6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
247-15411-00-00
Cover, Crankcase L
|
247-15411-00-00 |
— | ||
|
1
|
1
246-15411-00-00
Cover, Crankcase L
|
246-15411-00-00 |
— | ||
|
2
|
2
170-15451-00-00
Gasket, Crcs Cover
|
170-15451-00-00 |
— | ||
|
3
|
3
985-01060-95-00
Screw, Pan Head
|
985-01060-95-00 |
— | ||
| replacement | |||||
|
3
|
3
985-07060-95-00
SCREW, PAN
|
985-07060-95-00 |
— | ||
|
4
|
4
985-80065-80-00
Screw, Pan Head
|
985-80065-80-00 |
— | ||
|
5
|
5
98580-06040-00 Screw, Pan Head (90501-06040-0090501-06040-00 |
98580-06040-00 |
from US $1.21 |
||
|
6
|
6
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
6
|
6
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
7
|
7
246-15416-00-00
Cover, Oil Pump
|
246-15416-00-00 |
— | ||
|
8
|
8
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
9
|
9
170-15491-00-00
Protector
|
170-15491-00-00 |
— | ||
|
10
|
10
168-15494-00-00
Seal, Protector
|
168-15494-00-00 |
— | ||
|
11
|
11
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
11
|
11
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
12
|
12
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
12
|
12
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.36 |
||
|
12
|
12
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $1.36 |
||
|
13
|
13
204-15363-01-00
Plug, Oil
|
204-15363-01-00 |
— | ||
|
14
|
14
93210-26033-00 O-Ring |
93210-26033-00 |
from US $2.83 |
||
|
15
|
15
246-15421-00-00
Cover, Crankcase R
|
246-15421-00-00 |
— | ||
|
16
|
16
98580-06055-00 Screw,panhead |
98580-06055-00 |
US $3.40 |
||
| replacement | |||||
|
16
|
16
98580-06555-00 Screw, Panhed (Gc2) |
98580-06555-00 |
from US $3.40 |
||
|
17
|
17
98501-06090-00 Screw Pan Head |
98501-06090-00 |
from US $2.16 |
||
| replacement | |||||
|
17
|
17
98504-06090-00 Screw, Pan Head |
98504-06090-00 |
from US $3.54 |
||
|
18
|
18
98580-06040-00 Screw, Pan Head (90501-06040-0090501-06040-00 |
98580-06040-00 |
from US $1.21 |
||
|
19
|
19
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
19
|
19
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
20
|
20
246-15425-00-00
Cover, Generator R
|
246-15425-00-00 |
— | ||
|
21
|
21
146-15362-00-00
Plug, Oil
|
146-15362-00-00 |
— | ||
|
22
|
22
904-30080-76-00
Gasket
|
904-30080-76-00 |
— | ||
|
23
|
23
90340-14119-00
Plug, Straight Scrw (102-15351-
102-15351- |
90340-14119-00 |
— | ||
|
24
|
24
137-15353-00-00
Gasket, Drain
|
137-15353-00-00 |
— | ||
| replacement | |||||
|
24
|
24
4F4-14766-00-00 Washer, Protector (Gasket) |
4F4-14766-00-00 |
from US $5.95 |
||
|
25
|
25
137-15363-00-00
Plug, Oil
|
137-15363-00-00 |
— | ||
|
26
|
26
93210-13016-00 O-Ring |
93210-13016-00 |
from US $1.98 |
||
