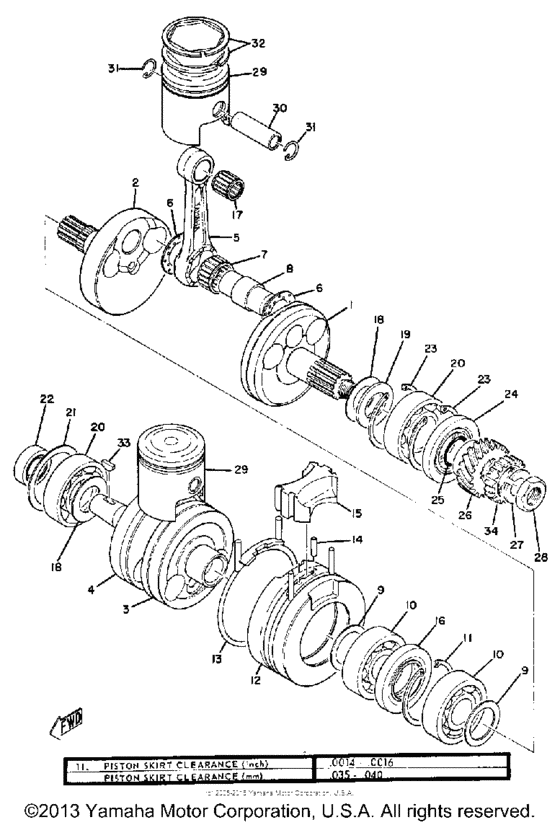

Crankshaft & Piston Diagram Yamaha DS
- Year
- 1969
- Sales region
- USA
- Engine Capacity
- 600
- Model
- DS6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
246-11400-00-00
Crankshaft Assembly
|
246-11400-00-00 |
— | ||
|
1
|
1
170-11412-00-00
Crank 1
|
170-11412-00-00 |
— | ||
|
2
|
2
156-11422-01-00
Crank 2
|
156-11422-01-00 |
— | ||
|
3
|
3
156-11432-01-00
Crank 2 (Lh)
|
156-11432-01-00 |
— | ||
|
4
|
4
170-11442-00-00
Crank 4
|
170-11442-00-00 |
— | ||
|
5
|
5
246-11651-00-00
Rod, Connecting
|
246-11651-00-00 |
— | ||
|
6
|
6
902-09240-73-00 Washer, Special Shape |
902-09240-73-00 |
from US $5.53 |
||
|
7
|
7
933-10424-35-00
Bearing, Cylinder.#10
|
933-10424-35-00 |
— | ||
|
8
|
8
156-11681-00-00
Pin, Crank 1
|
156-11681-00-00 |
— | ||
|
9
|
9
156-11564-00-03
Shim, Crank 4 (25-44-0.3)
25-44-0.3 U.N. |
156-11564-00-03 |
— | ||
|
9
|
9
156-11564-00-04
Shim, Crank 4 (25-44-0.5)
25-44-0.5 U.N. |
156-11564-00-04 |
— | ||
|
9
|
9
156-11564-00-06
Shim, Crank 4
U.N. |
156-11564-00-06 |
— | ||
|
10
|
10
933-06206-22-00
Bearing
|
933-06206-22-00 |
— | ||
| replacement | |||||
|
10
|
10
933-06206-27-00 Bearing (5X5) |
933-06206-27-00 |
from US $31.32 |
||
|
11
|
11
934-20620-70-00
Circlip
|
934-20620-70-00 |
— | ||
| replacement | |||||
|
11
|
11
99009-62500-00 Circlip |
99009-62500-00 |
from US $1.98 |
||
|
12
|
12
246-11511-00-00
Cover, Crank
|
246-11511-00-00 |
— | ||
|
13
|
13
246-11512-00-00
Seal, Crank Cover
|
246-11512-00-00 |
— | ||
|
14
|
14
93604-18058-00
Pin, Dowel
|
93604-18058-00 |
— | ||
| replacement | |||||
|
14
|
14
93604-18251-00
Pin, Dowel(4Ss)
|
93604-18251-00 |
— | ||
|
15
|
15
246-11541-00-00
Metal, Filler
|
246-11541-00-00 |
— | ||
|
16
|
16
145-11515-01-00
Seal, Labyrinth 1
|
145-11515-01-00 |
— | ||
|
17
|
17
933-10216-L2-00 Bearing, Cylindrical |
933-10216-L2-00 |
from US $27.49 |
||
|
18
|
18
156-11562-00-04
Shim, Crank 2
U.R.U.R. |
156-11562-00-04 |
— | ||
|
18
|
18
156-11562-00-05
Shim, Crank 2
U.R.U.R. |
156-11562-00-05 |
— | ||
|
18
|
18
156-11562-00-07
Shim, Crank 2
U.R.U.R. |
156-11562-00-07 |
— | ||
|
19
|
19
156-11561-00-00
Shim, Crank 1
|
156-11561-00-00 |
— | ||
|
20
|
20
93306-30536-00 Bearing (8R9) |
93306-30536-00 |
from US $25.08 |
||
|
21
|
21
156-11563-00-00 Shim, Crank 3 |
156-11563-00-00 |
from US $8.93 |
||
|
22
|
22
931-03201-10-00 Oil Seal, Sw-Type |
931-03201-10-00 |
from US $13.88 |
||
|
23
|
23
934-20620-70-00
Circlip
|
934-20620-70-00 |
— | ||
| replacement | |||||
|
23
|
23
99009-62500-00 Circlip |
99009-62500-00 |
from US $1.98 |
||
|
24
|
24
931-03350-15-00
Oil Seal
|
931-03350-15-00 |
— | ||
|
25
|
25
93210-25071-00 O-Ring |
93210-25071-00 |
from US $1.98 |
||
|
26
|
26
170-16111-00-00
Gear, Pri Drive
|
170-16111-00-00 |
— | ||
|
27
|
27
92901-16100-00 Washer |
92901-16100-00 |
from US $3.40 |
||
| replacement | |||||
|
27
|
27
92907-16100-00 Washer(Jn5) |
92907-16100-00 |
from US $3.40 |
||
|
28
|
28
90170-16182-00 Nut |
90170-16182-00 |
from US $3.12 |
||
| replacement | |||||
|
28
|
28
90170-16425-00 Nut |
90170-16425-00 |
from US $2.02 |
||
|
29
|
29
248-11631-01-96
Piston Std
|
248-11631-01-96 |
— | ||
|
29
|
29
248-11635-01-00
Piston 1 O/s 0.25
O/S 0.25 ALTERNATE PARTS |
248-11635-01-00 |
— | ||
|
29
|
29
248-11636-01-00
Piston 2 O/s 0.50
O/S 0.50 ALTERNATE PARTS |
248-11636-01-00 |
— | ||
|
30
|
30
137-11633-00-00
Pin, Piston
|
137-11633-00-00 |
— | ||
| replacement | |||||
|
30
|
30
137-11633-10-00 Pin, Piston |
137-11633-10-00 |
from US $18.99 |
||
|
31
|
31
93450-17025-00 Circlip |
93450-17025-00 |
from US $1.70 |
||
|
32
|
32
479-11601-00-00 Piston Ring Setstd |
479-11601-00-00 |
from US $50.98 |
||
|
32
|
32
479-11601-10-00 Piston Ringset 1St1ST ALTERNATE PARTS |
479-11601-10-00 |
from US $45.77 |
||
|
32
|
32
479-11601-20-00 Piston Ring Set2Nd |
479-11601-20-00 |
from US $47.14 |
||
|
33
|
33
90280-04005-00
Key, Woodruff
|
90280-04005-00 |
— | ||
|
34
|
34
170-13188-00-00
Gear, Drive
|
170-13188-00-00 |
— | ||
