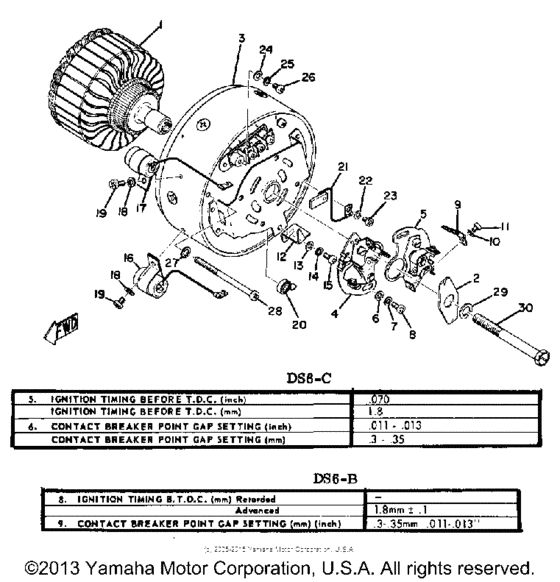

D - c - generator Diagram Yamaha DS
- Year
- 1969
- Sales region
- USA
- Engine Capacity
- 600
- Model
- DS6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
246-81200-20-00
Dc Generator Assembly
|
246-81200-20-00 |
— | ||
|
1
|
1
246-81255-20-00
Armature
|
246-81255-20-00 |
— | ||
|
2
|
2
246-81254-20-00
Plate, Cam
|
246-81254-20-00 |
— | ||
|
3
|
3
246-81210-20-00
Stator Assembly
|
246-81210-20-00 |
— | ||
|
4
|
4
169-81121-22-00
Contact Brkr Assembly
|
169-81121-22-00 |
— | ||
|
5
|
5
169-81122-22-00
Contact Brkr Assembly 2
ISO |
169-81122-22-00 |
— | ||
|
6
|
6
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
7
|
7
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
8
|
8
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
9
|
9
168-81231-20-00
Lubricator
|
168-81231-20-00 |
— | ||
|
10
|
10
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
11
|
11
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
12
|
12
170-81232-20-00
Plate, Timing
|
170-81232-20-00 |
— | ||
|
13
|
13
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
14
|
14
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
15
|
15
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
16
|
16
169-81126-21-00
Condenser 2
|
169-81126-21-00 |
— | ||
|
17
|
17
170-81225-20-00
Condenser 1
|
170-81225-20-00 |
— | ||
|
18
|
18
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
19
|
19
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
20
|
20
131-81213-20-00
Spring, Brush
|
131-81213-20-00 |
— | ||
|
21
|
21
131-81211-20-00
Brush
|
131-81211-20-00 |
— | ||
|
22
|
22
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
23
|
23
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
| replacements | |||||
|
23
|
23
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
23
|
23
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
24
|
24
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
25
|
25
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
25
|
25
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
26
|
26
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
| replacements | |||||
|
26
|
26
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
26
|
26
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
27
|
27
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
28
|
28
98501-05070-00 Screw, Pan Head |
98501-05070-00 |
from US $2.69 |
||
| replacement | |||||
|
28
|
28
985-80055-70-00 SCREW,PAN HEAD |
985-80055-70-00 |
from US $2.20 |
||
|
29
|
29
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
30
|
30
168-81252-21-00
Bolt
|
168-81252-21-00 |
— | ||
