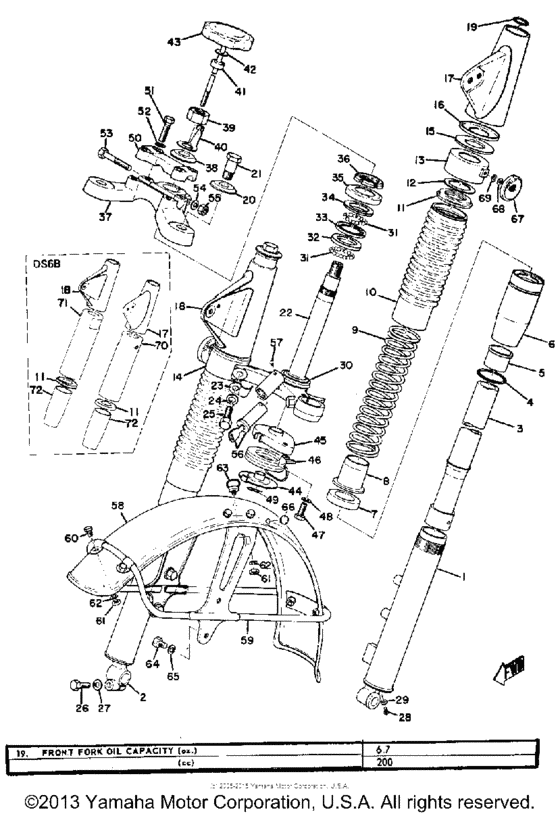

Front fork & front fender Diagram Yamaha DS
- Year
- 1969
- Sales region
- USA
- Engine Capacity
- 600
- Model
- DS6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
247-23100-60-64
Front Fork Assembly
|
247-23100-60-64 |
— | ||
|
1
|
1
247-23100-60-65
Front Fork Assembly
|
247-23100-60-65 |
— | ||
|
1
|
1
246-23100-60-63
Front Fork Assembly
|
246-23100-60-63 |
— | ||
|
1
|
1
246-23126-00-93
Tube, Outer 1
ISO |
246-23126-00-93 |
— | ||
|
2
|
2
246-23136-00-93
Tube, Outer 2
ISO |
246-23136-00-93 |
— | ||
|
3
|
3
246-23124-00-00
Tube, Inner 1
|
246-23124-00-00 |
— | ||
|
4
|
4
156-23147-00-00
O-Ring
|
156-23147-00-00 |
— | ||
|
5
|
5
171-23125-01-00
Metal, Slide 1
|
171-23125-01-00 |
— | ||
|
6
|
6
204-23127-40-00
Nut, Outer Tube
|
204-23127-40-00 |
— | ||
|
7
|
7
2K5-23145-00-00 Oil Seal |
2K5-23145-00-00 |
from US $26.92 |
||
|
8
|
8
156-23143-00-00
Seat, Spring Lower
|
156-23143-00-00 |
— | ||
|
9
|
9
246-23141-00-00
Spring, Front Fork
|
246-23141-00-00 |
— | ||
|
10
|
10
211-23191-40-00
Boot, Front Fork
|
211-23191-40-00 |
— | ||
|
11
|
11
204-23142-40-00
Seat, Spring Upper
|
204-23142-40-00 |
— | ||
|
11
|
11
171-23142-01-00
Seat, Spring Upper
|
171-23142-01-00 |
— | ||
|
12
|
12
156-23146-00-00
Washer, Oil Seal
|
156-23146-00-00 |
— | ||
|
13
|
13
247-23122-60-00
Cover, Outer 1
|
247-23122-60-00 |
— | ||
|
14
|
14
247-23132-60-00
Cover, Outer 2
|
247-23132-60-00 |
— | ||
|
15
|
15
171-23163-01-00
Gasket
|
171-23163-01-00 |
— | ||
|
16
|
16
171-23116-01-00
Guide, Cover Lower
|
171-23116-01-00 |
— | ||
|
17
|
17
246-23121-00-64
Cover, Upper 1
CANDY GREEN |
246-23121-00-64 |
— | ||
|
17
|
17
246-23121-00-63
Cover, Upper 1
CALIFORNIAN ORANGE |
246-23121-00-63 |
— | ||
|
18
|
18
246-23131-00-64
Cover, Upper 2
CANDY GREEN |
246-23131-00-64 |
— | ||
|
18
|
18
246-23131-00-N7
Cover, Upper 2
CALIFORNIAN ORANGE |
246-23131-00-N7 |
— | ||
|
18
|
18
246-23131-00-63
Cover, Upper 2
BRILLIANT RED |
246-23131-00-63 |
— | ||
|
19
|
19
156-23114-00-00
Packing
|
156-23114-00-00 |
— | ||
|
20
|
20
246-23112-00-00
Washer, Cap
|
246-23112-00-00 |
— | ||
|
21
|
21
156-23111-01-00
Bolt, Cap
|
156-23111-01-00 |
— | ||
|
22
|
22
246-23340-00-33
Under Bracket
|
246-23340-00-33 |
— | ||
|
23
|
23
183-23318-00-00
Holder, Cable 1
|
183-23318-00-00 |
— | ||
|
24
|
24
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.36 |
||
|
25
|
25
5J0-23346-00-00
Bolt 1
|
5J0-23346-00-00 |
— | ||
| replacement | |||||
|
25
|
25
122-23346-02-00 Bolt 1 |
122-23346-02-00 |
from US $6.66 |
||
|
26
|
26
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
26
|
26
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
26
|
26
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
26
|
26
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
27
|
27
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
28
|
28
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
29
|
29
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
30
|
30
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $16.29 |
||
| replacement | |||||
|
30
|
30
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
31
|
31
93501-04011-00 Ball |
93501-04011-00 |
from US $1.36 |
||
| replacement | |||||
|
31
|
31
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
32
|
32
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
33
|
33
183-23411-00-00 Race, Ball 1 |
183-23411-00-00 |
from US $6.23 |
||
| replacement | |||||
|
33
|
33
4FP-F3411-20-00 Race, Ball 1 |
4FP-F3411-20-00 |
from US $6.23 |
||
|
34
|
34
183-23412-00-00 Race, Ball 2 |
183-23412-00-00 |
from US $6.09 |
||
| replacements | |||||
|
34
|
34
4FP-F3412-10-00 Race, Ball 2 |
4FP-F3412-10-00 |
from US $6.09 |
||
|
34
|
34
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
34
|
34
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
35
|
35
136-23415-00-00 Cover, Ball Race 1 |
136-23415-00-00 |
from US $3.26 |
||
|
36
|
36
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
36
|
36
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
36
|
36
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
37
|
37
246-23435-00-00
Crown, Handle
|
246-23435-00-00 |
— | ||
|
38
|
38
902-09170-57-00
Washer, Spec''l Shap
|
902-09170-57-00 |
— | ||
|
39
|
39
95303-16600-00
Nut (95301-16600)
95301-16600 |
95303-16600-00 |
— | ||
|
40
|
40
246-23428-00-00
Spring
|
246-23428-00-00 |
— | ||
|
41
|
41
90202-06008-00 Washer, Plate |
90202-06008-00 |
from US $2.69 |
||
|
42
|
42
90201-06061-00 Washer, Plate |
90201-06061-00 |
from US $1.35 |
||
|
43
|
43
183-23419-00-00
Shaft, Damper
|
183-23419-00-00 |
— | ||
|
44
|
44
169-23421-00-33
Plate, Damper 1
|
169-23421-00-33 |
— | ||
|
45
|
45
169-23422-01-00
Plate, Damper 2
|
169-23422-01-00 |
— | ||
|
46
|
46
246-23423-00-00
Plate, Damper 3
|
246-23423-00-00 |
— | ||
|
47
|
47
97313-08012-00 Bolt (661) |
97313-08012-00 |
from US $2.09 |
||
| replacements | |||||
|
47
|
47
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
47
|
47
97013-08012-00 Bolt |
97013-08012-00 |
from US $3.12 |
||
|
48
|
48
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
49
|
49
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
50
|
50
168-23441-00-00
Holder, Handle Upr
|
168-23441-00-00 |
— | ||
|
51
|
51
97313-08035-00 Bolt |
97313-08035-00 |
from US $3.01 |
||
| replacement | |||||
|
51
|
51
97013-08035-00 Bolt |
97013-08035-00 |
from US $4.53 |
||
|
52
|
52
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
53
|
53
97313-08055-00 Bolt (661) |
97313-08055-00 |
from US $4.12 |
||
| replacement | |||||
|
53
|
53
97013-08055-00 Bolt |
97013-08055-00 |
from US $3.55 |
||
|
54
|
54
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
55
|
55
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
55
|
55
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
56
|
56
156-23480-00-00
Steering Lock Assembly
|
156-23480-00-00 |
— | ||
|
57
|
57
122-23483-00-00
Rivet
|
122-23483-00-00 |
— | ||
|
58
|
58
235-21510-00-00
Fender, Front
|
235-21510-00-00 |
— | ||
|
59
|
59
235-21513-00-00
Stay, Fender 1
|
235-21513-00-00 |
— | ||
|
60
|
60
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
60
|
60
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.36 |
||
|
61
|
61
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
62
|
62
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
63
|
63
152-21518-00-00
Holder, Wire
|
152-21518-00-00 |
— | ||
|
64
|
64
97313-08012-00 Bolt (661) |
97313-08012-00 |
from US $2.09 |
||
| replacements | |||||
|
64
|
64
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
64
|
64
97013-08012-00 Bolt |
97013-08012-00 |
from US $3.12 |
||
|
65
|
65
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
66
|
66
170-21746-00-00 Damper 2Damper,cleaner stopper |
170-21746-00-00 |
from US $3.68 |
||
| replacement | |||||
|
66
|
66
5A8-21639-00-00 Damper 2 |
5A8-21639-00-00 |
from US $3.68 |
||
|
67
|
67
233-85111-00-00
Reflector, Front 1
ISO |
233-85111-00-00 |
— | ||
|
68
|
68
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
69
|
69
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.36 |
||
|
70
|
70
246-23123-60-63
Cover, Lower 1
BRILLIANT RED |
246-23123-60-63 |
— | ||
|
71
|
71
246-23133-60-63
Cover, Lower 2
BRILLIANT RED |
246-23133-60-63 |
— | ||
|
72
|
72
246-23150-00-00
Outer Nut
|
246-23150-00-00 |
— | ||
|
73
|
73
169-21337-00-00
Clamp, Cable
|
169-21337-00-00 |
— | ||
