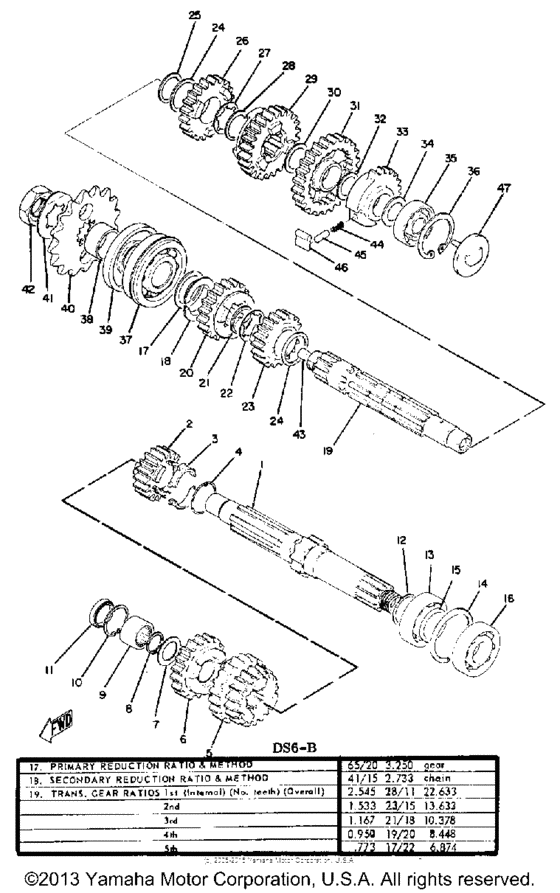

Transmisson Diagram Yamaha DS
- Year
- 1969
- Sales region
- USA
- Engine Capacity
- 600
- Model
- DS6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
170-17411-00-00
Axle, Main
|
170-17411-00-00 |
— | ||
|
2
|
2
246-17121-00-00
Gear, 2Nd Pinion
2ND PINION |
246-17121-00-00 |
— | ||
|
3
|
3
156-17115-00-00
Plate, Setting
|
156-17115-00-00 |
— | ||
|
4
|
4
904-68140-36-00
Clip
|
904-68140-36-00 |
— | ||
|
5
|
5
159-17131-01-00
Gear, 3Rd And 5Th Pinion
3RD PINION |
159-17131-01-00 |
— | ||
|
6
|
6
246-17141-00-00
Gear, 4Th Pinion
4TH PINION |
246-17141-00-00 |
— | ||
|
7
|
7
90201-17255-00 Washer, Plate |
90201-17255-00 |
from US $1.70 |
||
| replacement | |||||
|
7
|
7
90201-177G4-00 Washer, Plate |
90201-177G4-00 |
from US $1.70 |
||
|
8
|
8
99009-17400-00 Circlip |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
93410-17X00-00 Circlip |
93410-17X00-00 |
US $1.56 |
||
|
9
|
9
933-11217-04-00
Bearing
|
933-11217-04-00 |
— | ||
|
10
|
10
99009-25500-00 Circlip |
99009-25500-00 |
from US $1.56 |
||
|
11
|
11
156-17481-00-00
Plug, Blind
|
156-17481-00-00 |
— | ||
|
12
|
12
156-17417-00-01
Shim 1
|
156-17417-00-01 |
— | ||
|
13
|
13
933-06005-01-00
Bearing
|
933-06005-01-00 |
— | ||
| replacement | |||||
|
13
|
13
933-06005-19-00 Bearing |
933-06005-19-00 |
from US $14.88 |
||
|
14
|
14
934-50470-11-00
Circlip
|
934-50470-11-00 |
— | ||
|
15
|
15
905-60250-44-00
Spacer
|
905-60250-44-00 |
— | ||
|
16
|
16
933-06005-07-00 Bearing |
933-06005-07-00 |
from US $20.40 |
||
|
17
|
17
156-17428-00-00
Shim, Main Axle
|
156-17428-00-00 |
— | ||
|
18
|
18
156-17429-00-00
Spacer, Drive Axle
|
156-17429-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
156-17421-00-00
Axle, Drive
|
156-17421-00-00 |
— | ||
|
20
|
20
159-17241-00-00
Gear, 4Th Wheel
4TH WHEEL |
159-17241-00-00 |
— | ||
|
21
|
21
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.70 |
||
|
22
|
22
902-09210-81-00
Washer, Spec''l Shap
|
902-09210-81-00 |
— | ||
|
23
|
23
246-17251-00-00
Gear, 5Th Wheel
5TH WHEEL |
246-17251-00-00 |
— | ||
|
24
|
24
90201-25490-00 Washer, Plate |
90201-25490-00 |
from US $3.29 |
||
|
25
|
25
93410-25010-00 Circlip |
93410-25010-00 |
from US $1.50 |
||
| replacement | |||||
|
25
|
25
99009-25400-00 Circlip |
99009-25400-00 |
from US $1.56 |
||
|
26
|
26
246-17231-00-00
Gear, 3Rd Wheel
3RD WHEEL |
246-17231-00-00 |
— | ||
|
27
|
27
902-09210-81-00
Washer, Spec''l Shap
|
902-09210-81-00 |
— | ||
|
28
|
28
93410-25010-00 CirclipPN 253 |
93410-25010-00 |
from US $1.50 |
||
| replacement | |||||
|
28
|
28
99009-25400-00 CirclipPN 253 |
99009-25400-00 |
from US $1.56 |
||
|
29
|
29
145-17221-00-00
Gear, 2Nd Wheel
2ND WHEEL |
145-17221-00-00 |
— | ||
|
30
|
30
90201-203E7-00 Washer, Plate |
90201-203E7-00 |
from US $1.70 |
||
|
31
|
31
246-17211-00-00
Gear, 1St Wheel
1ST WHEEL |
246-17211-00-00 |
— | ||
|
32
|
32
902-01202-68-00
Washer, Plate
|
902-01202-68-00 |
— | ||
|
33
|
33
156-15631-00-00
Gear, Kick Pinion
|
156-15631-00-00 |
— | ||
|
34
|
34
156-17427-00-07
Shim 1
|
156-17427-00-07 |
— | ||
|
34
|
34
156-17427-00-08
Shim 1
|
156-17427-00-08 |
— | ||
|
34
|
34
156-17427-00-06
Shim 1
|
156-17427-00-06 |
— | ||
|
35
|
35
93306-20310-00 Bearing78 ~ |
93306-20310-00 |
from US $15.30 |
||
|
35
|
35
93306-20333-00 Bearing(39K) |
93306-20333-00 |
from US $15.30 |
||
| replacement | |||||
|
35
|
35
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.30 |
||
|
36
|
36
93420-40064-00 Circlip |
93420-40064-00 |
from US $5.09 |
||
|
37
|
37
933-06305-02-00
Bearing
|
933-06305-02-00 |
— | ||
|
38
|
38
90387-25192-00 Collar |
90387-25192-00 |
from US $15.27 |
||
| replacements | |||||
|
38
|
38
90387-253M9-00 Collar |
90387-253M9-00 |
from US $21.11 |
||
|
38
|
38
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
39
|
39
931-02300-25-00
Oil Seal, Sd-Type
|
931-02300-25-00 |
— | ||
|
40
|
40
156-17461-40-00
Sprocket, Drive
|
156-17461-40-00 |
— | ||
|
40
|
40
938-4E151-55-00
Sprocket Drive (15T)
15T |
938-4E151-55-00 |
— | ||
|
40
|
40
156-17461-60-00
Sprocket, Drive
|
156-17461-60-00 |
— | ||
|
41
|
41
902-15210-22-00
Washer, Lock
|
902-15210-22-00 |
— | ||
| replacement | |||||
|
41
|
41
902-15212-90-00 Washer, Lock |
902-15212-90-00 |
from US $7.23 |
||
|
42
|
42
90179-18020-00 Nut |
90179-18020-00 |
from US $5.06 |
||
|
43
|
43
90336-09002-00
Plug, Taper
|
90336-09002-00 |
— | ||
| replacement | |||||
|
43
|
43
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
44
|
44
905-01050-20-00
Spring, Compression
|
905-01050-20-00 |
— | ||
|
45
|
45
902-50050-07-00
Pin, Straight
|
902-50050-07-00 |
— | ||
|
46
|
46
152-15635-00-00
Pawl, Kick
|
152-15635-00-00 |
— | ||
|
47
|
47
156-17488-00-00
Bucket, Oil 1
78 ~ |
156-17488-00-00 |
— | ||
