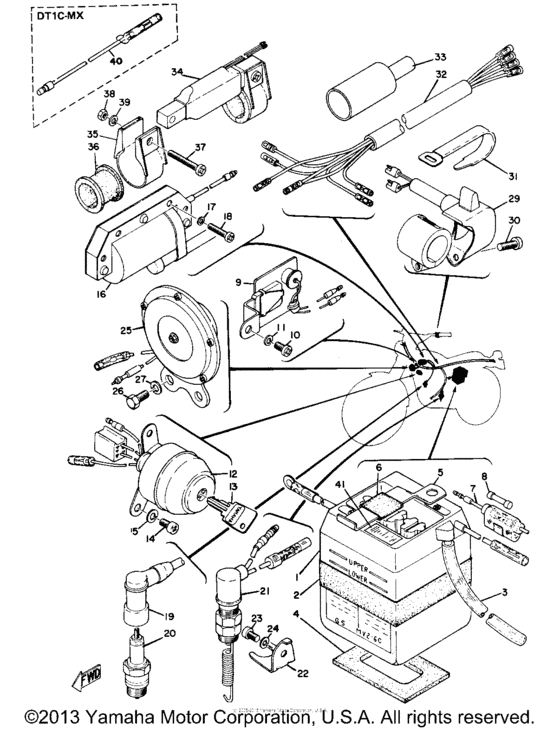

Electrical Diagram Yamaha DT1/ DT2/ DT3
- Year
- 1969
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- DT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BTG-6N22A-30-00
6N2-2A-3 Gs Battery
GS BATTERY |
BTG-6N22A-30-00 |
— | ||
| replacement | |||||
|
1
|
1
6N2-2A300-00-00
BULK PREMIER II CABL
GS BATTERY |
6N2-2A300-00-00 |
— | ||
|
1
|
1
104-82111-10-00
Cap, Battery
|
104-82111-10-00 |
— | ||
|
1
|
1
233-82508-20-00
Main Switch Assembly
|
233-82508-20-00 |
— | ||
|
2
|
2
214-82124-00-00 Band, Battery |
214-82124-00-00 |
US $9.23 |
||
|
3
|
3
214-82112-00-00
Pipe, Breather
|
214-82112-00-00 |
— | ||
|
4
|
4
214-82122-00-00
Seat, Battery
|
214-82122-00-00 |
— | ||
|
5
|
5
214-82131-00-00
Band, Battery
|
214-82131-00-00 |
— | ||
|
6
|
6
214-82121-00-00
No Longer Available
|
214-82121-00-00 |
— | ||
|
7
|
7
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.22 |
||
|
8
|
8
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
8
|
8
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $1.82 |
||
|
9
|
9
315-81970-61-00
Rectifier Assembly
|
315-81970-61-00 |
— | ||
|
10
|
10
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
10
|
10
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $0.90 |
||
|
11
|
11
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $0.97 |
||
|
12
|
12
214-82508-20-00
Main Switch Assembly
|
214-82508-20-00 |
— | ||
|
14
|
14
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
14
|
14
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $0.90 |
||
|
15
|
15
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $0.97 |
||
|
16
|
16
214-82310-09-00
Ignition Coil Assembly
|
214-82310-09-00 |
— | ||
|
17
|
17
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.50 |
||
|
18
|
18
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $0.97 |
||
|
19
|
19
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.16 |
||
|
20
|
20
947-01000-17-00
Spark Plug B10En
B10EN |
947-01000-17-00 |
— | ||
|
20
|
20
974-01000-44-00
New Genuine Part
IN PRICE BOOK |
974-01000-44-00 |
— | ||
|
21
|
21
214-82530-00-00 Stop Switch Assembly |
214-82530-00-00 |
from US $53.49 |
||
|
22
|
22
214-82537-00-00
Attach, Stop Switch
|
214-82537-00-00 |
— | ||
|
23
|
23
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
23
|
23
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $0.90 |
||
|
24
|
24
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $0.97 |
||
|
25
|
25
266-83371-12-00
Horn
|
266-83371-12-00 |
— | ||
|
26
|
26
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
26
|
26
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.94 |
||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
|
28
|
28
214-83974-00-00
Holder, Handle Swch
|
214-83974-00-00 |
— | ||
|
29
|
29
214-83975-09-00
Switch, Handle 2
|
214-83975-09-00 |
— | ||
|
30
|
30
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
30
|
30
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
US $2.84 |
||
|
31
|
31
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.50 |
||
|
32
|
32
233-82590-21-00
Wire Harness Assembly
|
233-82590-21-00 |
— | ||
|
33
|
33
214-82599-00-00
Cover, Connecter
|
214-82599-00-00 |
— | ||
|
34
|
34
233-81990-20-00
Choke Coil Assembly
|
233-81990-20-00 |
— | ||
|
35
|
35
233-81991-00-00
Band, Coil Fitting
|
233-81991-00-00 |
— | ||
|
36
|
36
233-81992-00-00
Damper, Coil Ftng
|
233-81992-00-00 |
— | ||
|
37
|
37
985-01050-30-00
Screw, Pan Head
|
985-01050-30-00 |
— | ||
| replacements | |||||
|
37
|
37
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.05 |
||
|
37
|
37
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.09 |
||
|
38
|
38
95380-05600-00 Nut |
95380-05600-00 |
from US $1.43 |
||
|
39
|
39
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $0.97 |
||
|
40
|
40
284-82319-00-00
Wire, Sub-Lead
|
284-82319-00-00 |
— | ||
|
41
|
41
118-82141-09-00
Label, Battery
|
118-82141-09-00 |
— | ||
| replacements | |||||
|
41
|
41
40A-82141-G0-00
Label, Battery
|
40A-82141-G0-00 |
— | ||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
