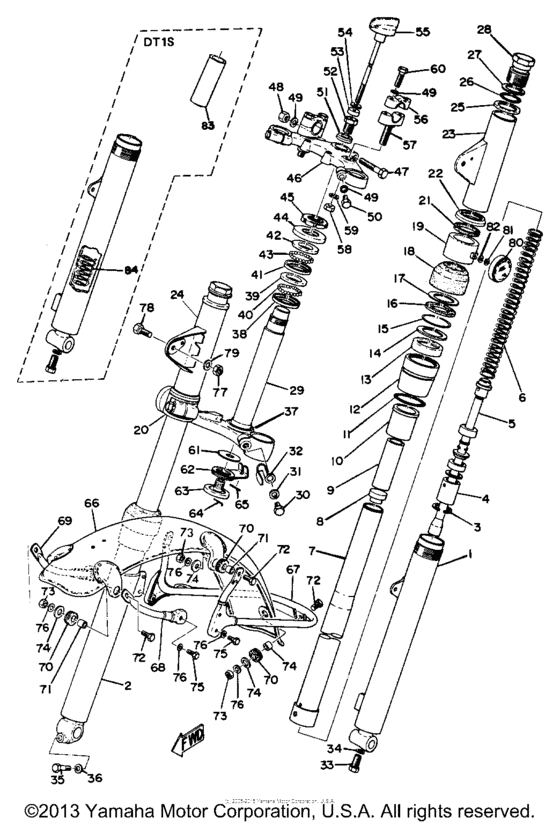

Front fork Diagram Yamaha DT1/ DT2/ DT3
- Year
- 1969
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- DT1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
275-23126-60-35
Tube, Outer 1
|
275-23126-60-35 |
— | ||
|
1
|
1
264-23100-60-52
Front Fork Assembly
|
264-23100-60-52 |
— | ||
|
1
|
1
233-23100-00-56
New Genuine Part
IN PRICE BOOK BRILLIANT REDDISCONTINUED |
233-23100-00-56 |
— | ||
|
1
|
1
264-23166-60-00
Spacer, Oil Lock
|
264-23166-60-00 |
— | ||
|
2
|
2
275-23136-60-35
Tube, Outer 2
|
275-23136-60-35 |
— | ||
|
3
|
3
934-50300-33-00
Circlip, Inner
|
934-50300-33-00 |
— | ||
|
4
|
4
214-23171-00-00
Piston, Front Fork
|
214-23171-00-00 |
— | ||
|
5
|
5
264-23170-61-00
Cylinder, Frtfrk
|
264-23170-61-00 |
— | ||
|
5
|
5
214-23170-00-00
Cylinder, Frtfrk
|
214-23170-00-00 |
— | ||
|
6
|
6
214-23141-00-00
Spring, Front Fork
|
214-23141-00-00 |
— | ||
|
7
|
7
214-23124-00-00
Tube, Inner 1
|
214-23124-00-00 |
— | ||
|
7
|
7
264-23124-60-00
Tube, Inner 1
|
264-23124-60-00 |
— | ||
|
8
|
8
214-23142-00-00
Seat, Spring Upper
|
214-23142-00-00 |
— | ||
|
9
|
9
214-23118-00-00
Spacer
|
214-23118-00-00 |
— | ||
|
10
|
10
168-23125-01-00
Metal, Slide 1
|
168-23125-01-00 |
— | ||
|
11
|
11
156-23147-00-00
O-Ring
|
156-23147-00-00 |
— | ||
|
12
|
12
256-23150-60-00
Outer Nut
|
256-23150-60-00 |
— | ||
|
13
|
13
278-23145-51-00
Oil Seal
|
278-23145-51-00 |
— | ||
| replacement | |||||
|
13
|
13
584-23145-50-00 Oil Seal |
584-23145-50-00 |
from US $24.65 |
||
|
14
|
14
214-23146-00-00
Washer, Oil Seal
|
214-23146-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
214-23156-00-00
Clip, Oil Seal
|
214-23156-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
214-23155-00-00
Ring, Felt
|
214-23155-00-00 |
— | ||
|
18
|
18
292-23144-00-00
Seal, Dust
|
292-23144-00-00 |
— | ||
|
19
|
19
233-23122-00-00
Cover, Outer 1
|
233-23122-00-00 |
— | ||
|
20
|
20
233-23122-00-00
Cover, Outer 1
PN253 |
233-23122-00-00 |
— | ||
|
21
|
21
291-23163-61-00
Gasket (Lamp Stay)
|
291-23163-61-00 |
— | ||
|
22
|
22
447-23116-52-00
Guide, Cover Lower
|
447-23116-52-00 |
— | ||
|
23
|
23
214-23121-01-52
Cover, Upper 1
CANDY ORANGE |
214-23121-01-52 |
— | ||
|
23
|
23
214-23121-01-63
Cover, Upper 1
BRILLIANT RED |
214-23121-01-63 |
— | ||
|
24
|
24
214-23131-01-52
Cover, Upper 2
CANDY ORANGE |
214-23131-01-52 |
— | ||
|
24
|
24
214-23131-01-63
Cover, Upper 2
BRILLIANT RED |
214-23131-01-63 |
— | ||
|
25
|
25
214-23115-00-00
Guide, Cover Upper
|
214-23115-00-00 |
— | ||
|
26
|
26
214-23114-00-00
Gasket
|
214-23114-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
214-23112-00-00
Washer, Cap
|
214-23112-00-00 |
— | ||
|
28
|
28
264-23111-60-00
Bolt, Cap
|
264-23111-60-00 |
— | ||
|
28
|
28
214-23111-02-00
Bolt, Cap
|
214-23111-02-00 |
— | ||
|
29
|
29
291-23340-30-33
Under Bracket
|
291-23340-30-33 |
— | ||
|
30
|
30
5J0-23346-00-00
Bolt 1
|
5J0-23346-00-00 |
— | ||
| replacement | |||||
|
30
|
30
122-23346-02-00 Bolt 1 |
122-23346-02-00 |
from US $6.66 |
||
|
31
|
31
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
32
|
32
256-23318-60-00
Holder, Cable 1
|
256-23318-60-00 |
— | ||
|
33
|
33
913-11080-20-00
Bolt, Hexagon Socket Head
|
913-11080-20-00 |
— | ||
| replacement | |||||
|
33
|
33
91314-08020-00 Bolt, Hexagon Socket Head |
91314-08020-00 |
from US $1.42 |
||
|
34
|
34
214-23158-00-00
Gasket
|
214-23158-00-00 |
— | ||
|
35
|
35
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
35
|
35
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
35
|
35
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
35
|
35
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
36
|
36
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
37
|
37
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.25 |
||
|
38
|
38
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $16.29 |
||
| replacement | |||||
|
38
|
38
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
39
|
39
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
39
|
39
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
40
|
40
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
40
|
40
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
41
|
41
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $8.78 |
||
| replacement | |||||
|
41
|
41
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $6.30 |
||
|
42
|
42
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $7.93 |
||
| replacement | |||||
|
42
|
42
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $7.93 |
||
|
43
|
43
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.35 |
||
| replacement | |||||
|
43
|
43
93503-16003-00 Ball |
93503-16003-00 |
from US $1.34 |
||
|
44
|
44
122-23416-00-00 Cover, Ball Race 2 |
122-23416-00-00 |
from US $2.69 |
||
|
45
|
45
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
45
|
45
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
45
|
45
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
46
|
46
214-23435-02-33
Crown, Handle
|
214-23435-02-33 |
— | ||
|
47
|
47
97313-08045-00 Bolt, Hexagon |
97313-08045-00 |
from US $4.11 |
||
| replacement | |||||
|
47
|
47
97013-08045-00 Bolt |
97013-08045-00 |
from US $4.11 |
||
|
48
|
48
95303-08800-00 Nut (Crown) (93501-08800-00) |
95303-08800-00 |
from US $3.12 |
||
|
49
|
49
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
50
|
50
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
50
|
50
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
50
|
50
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
50
|
50
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
51
|
51
902-09140-22-00
Washer, Spec''l Shap (214-23443
|
902-09140-22-00 |
— | ||
|
52
|
52
901-01141-13-00
Bolt (214-23451-10)
|
901-01141-13-00 |
— | ||
|
53
|
53
90202-06008-00 Washer, Plate |
90202-06008-00 |
from US $2.69 |
||
|
54
|
54
90201-06061-00 Washer, Plate |
90201-06061-00 |
from US $1.35 |
||
|
55
|
55
214-23419-01-00
Shaft, Damper
|
214-23419-01-00 |
— | ||
|
56
|
56
315-23441-00-93
Holder, Handle Upr
|
315-23441-00-93 |
— | ||
|
57
|
57
214-23442-02-00
Holder, Handle Lwr
|
214-23442-02-00 |
— | ||
|
58
|
58
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
58
|
58
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
59
|
59
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
60
|
60
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
60
|
60
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
60
|
60
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
60
|
60
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
61
|
61
214-23423-00-00
Plate, Damper 3
PN283 |
214-23423-00-00 |
— | ||
|
62
|
62
214-23422-01-00
Plate, Damper 2
PN283 |
214-23422-01-00 |
— | ||
|
63
|
63
214-23421-02-00
Plate, Damper 1
PN283 |
214-23421-02-00 |
— | ||
|
64
|
64
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
65
|
65
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
65
|
65
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
66
|
66
214-21510-00-35
Fender, Front
|
214-21510-00-35 |
— | ||
|
67
|
67
214-21512-00-93
Bracket, Fender
|
214-21512-00-93 |
— | ||
|
68
|
68
214-21513-00-00
Stay, Fender 1
|
214-21513-00-00 |
— | ||
|
69
|
69
214-21514-00-00
Stay, Fender 2
|
214-21514-00-00 |
— | ||
|
70
|
70
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
71
|
71
90387-065L7-00 Collar |
90387-065L7-00 |
from US $1.56 |
||
| replacement | |||||
|
71
|
71
90387-06026-00 Collar |
90387-06026-00 |
from US $1.56 |
||
|
72
|
72
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
72
|
72
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
73
|
73
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
74
|
74
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
74
|
74
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
75
|
75
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
75
|
75
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
76
|
76
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
77
|
77
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
77
|
77
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
78
|
78
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
78
|
78
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
79
|
79
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
80
|
80
233-85111-00-00
Reflector, Front 1
|
233-85111-00-00 |
— | ||
|
81
|
81
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
82
|
82
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
83
|
83
264-23118-60-00
Spacer
|
264-23118-60-00 |
— | ||
|
84
|
84
264-23152-60-00
Spring, Sub
|
264-23152-60-00 |
— | ||
