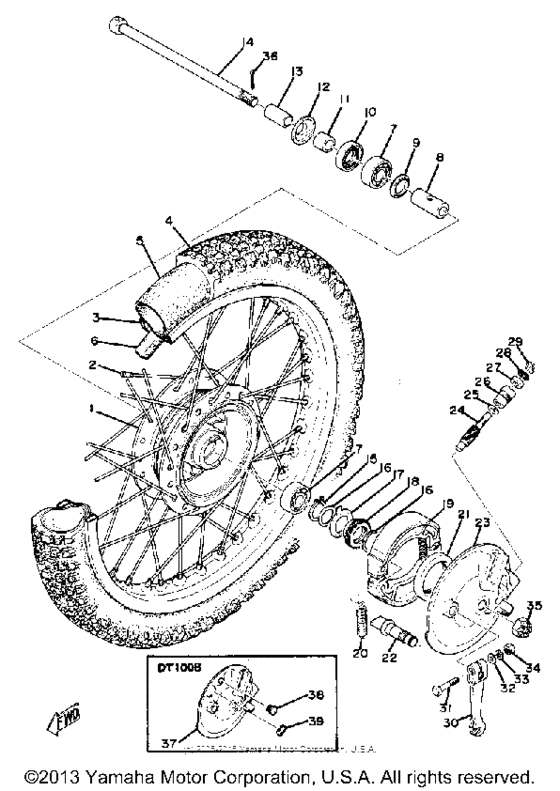

Front wheel Diagram Yamaha DT100
- Year
- 1974
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
248-25111-00-38 Hub, Front |
248-25111-00-38 |
US $196.19 |
||
| replacement | |||||
|
1
|
1
248-25111-10-00 Hub, Front |
248-25111-10-00 |
from US $98.98 |
||
|
2
|
2
276-25196-80-00
Spoke Set, Inner 1
10 PCS. |
276-25196-80-00 |
— | ||
|
2
|
2
276-25104-10-00
Spoke Set, Front
|
276-25104-10-00 |
— | ||
|
2
|
2
276-25197-80-00
Spoke Set, Outer 1
10 PCS. |
276-25197-80-00 |
— | ||
|
3
|
3
94414-19056-00 Rim1.40-19 |
94414-19056-00 |
from US $89.11 |
||
| replacement | |||||
|
3
|
3
944-14190-03-00 Rim (1.40-19)1.40-19 |
944-14190-03-00 |
from US $75.30 |
||
|
4
|
4
941-27193-21-00
275X19 Yoko Y620
Y620 |
941-27193-21-00 |
— | ||
|
5
|
5
94227-19037-00 Tube (2.75-19)(3Gx)2.75-193GX |
94227-19037-00 |
US $30.29 |
||
| replacement | |||||
|
5
|
5
94227-19292-00 Tube2.75-193GX |
94227-19292-00 |
US $41.53 |
||
|
6
|
6
94325-19027-00 Band, Rim (2.00-19)2.00-19 |
94325-19027-00 |
from US $4.39 |
||
| replacement | |||||
|
6
|
6
943-27191-11-00 Band, Rim (2.00-19)2.00-19 |
943-27191-11-00 |
from US $4.39 |
||
|
7
|
7
93306-30103-00 Bearing |
93306-30103-00 |
from US $12.75 |
||
| replacement | |||||
|
7
|
7
933-06301-02-00 Bearing |
933-06301-02-00 |
from US $12.75 |
||
|
8
|
8
90560-12261-00 Spacer |
90560-12261-00 |
from US $4.96 |
||
| replacement | |||||
|
8
|
8
90560-12138-00 Spacer |
90560-12138-00 |
from US $4.96 |
||
|
9
|
9
109-25115-00-00
New Genuine Part
IN PRICE BOOK |
109-25115-00-00 |
— | ||
|
10
|
10
93102-18008-00 Oil Seal |
93102-18008-00 |
from US $7.23 |
||
|
11
|
11
90387-12095-00 Collar |
90387-12095-00 |
from US $5.95 |
||
|
12
|
12
2K5-25118-00-00 Cover, Hub Dust |
2K5-25118-00-00 |
from US $10.26 |
||
|
13
|
13
903-87120-99-00 Collar |
903-87120-99-00 |
from US $4.56 |
||
|
14
|
14
427-25181-10-00 Axle, Wheel (427-25181-00)427-25181-00 |
427-25181-10-00 |
from US $35.99 |
||
|
15
|
15
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
16
|
16
90201-20269-00 Washer, Plate |
90201-20269-00 |
from US $1.70 |
||
|
17
|
17
183-25149-00-00 Clutch, Meter |
183-25149-00-00 |
from US $2.98 |
||
|
18
|
18
301-36246-00-00
New Genuine Part
IN PRICE BOOK |
301-36246-00-00 |
— | ||
|
19
|
19
326-W2536-00-00
Brakeshoe Set-2Pcs (326-25330-1
326-25330-1 |
326-W2536-00-00 |
— | ||
| replacement | |||||
|
19
|
19
4BE-W253E-00-00 Brake Shoe Kit326-25330-1 |
4BE-W253E-00-00 |
from US $27.27 |
||
|
19
|
19
22F-W2534-00-00
Brakeshoe Set
|
22F-W2534-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
21
|
21
93105-47007-00 Oil Seal |
93105-47007-00 |
from US $6.06 |
||
|
22
|
22
122-25351-02-00 Camshaft |
122-25351-02-00 |
from US $36.06 |
||
|
22
|
22
437-25151-00-00
No Longer Available
|
437-25151-00-00 |
— | ||
|
23
|
23
437-25120-10-00
Brake Shoe Plt Assembly
|
437-25120-10-00 |
— | ||
|
24
|
24
301-25138-00-00 Gear, Meter |
301-25138-00-00 |
US $26.07 |
||
|
25
|
25
90201-07076-00 Washer, Plate |
90201-07076-00 |
from US $1.70 |
||
|
26
|
26
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
27
|
27
93104-07003-00 Oil Seal, So-Type |
93104-07003-00 |
from US $1.84 |
||
|
28
|
28
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
28
|
28
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.39 |
||
|
29
|
29
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
30
|
30
137-25155-00-00 Lever, Camshaft 1 |
137-25155-00-00 |
from US $19.84 |
||
|
31
|
31
970-21060-30-00
Bolt
|
970-21060-30-00 |
— | ||
| replacements | |||||
|
31
|
31
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
31
|
31
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.52 |
||
|
32
|
32
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
33
|
33
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
34
|
34
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
35
|
35
90171-12005-00 Nut, Castle |
90171-12005-00 |
from US $3.83 |
||
| replacement | |||||
|
35
|
35
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
36
|
36
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
36
|
36
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
36
|
36
914-01300-75-00
Pin, Cotter
|
914-01300-75-00 |
— | ||
|
37
|
37
437-25120-10-00
Brake Shoe Plt Assembly
|
437-25120-10-00 |
— | ||
|
38
|
38
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
39
|
39
437-25134-00-00
Label, Indicator
|
437-25134-00-00 |
— | ||
