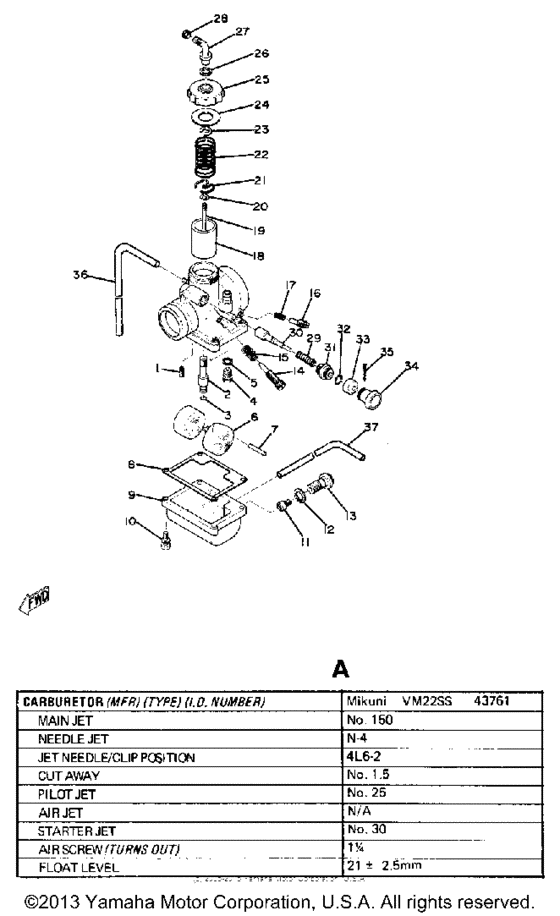

Carburetor Diagram Yamaha DT100
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
260-14142-25-00 Jet, Pilot# 25 |
260-14142-25-00 |
from US $10.46 |
||
|
1
|
1
540-14101-60-00
Carburetor Assembly 1
FOR 5 H.P. |
540-14101-60-00 |
— | ||
|
1
|
1
437-14101-62-00
Carburetor Assembly 1 (437-1410
437-1410 217~DT100B |
437-14101-62-00 |
— | ||
|
2
|
2
437-14141-24-00
Nozzle, Main
|
437-14141-24-00 |
— | ||
|
3
|
3
214-14147-00-00 O-Ring |
214-14147-00-00 |
from US $3.04 |
||
|
4
|
4
353-14190-15-00 Needle Valve Assembly |
353-14190-15-00 |
from US $45.32 |
||
|
5
|
5
127-14195-00-00 Washer, Needle Valve |
127-14195-00-00 |
from US $2.98 |
||
|
6
|
6
304-14185-00-00 Float |
304-14185-00-00 |
from US $26.95 |
||
| replacement | |||||
|
6
|
6
4NR-14185-00-00 Float |
4NR-14185-00-00 |
from US $40.48 |
||
|
7
|
7
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.98 |
||
|
8
|
8
304-14184-00-00 Gasket, Float Chamber |
304-14184-00-00 |
from US $4.04 |
||
|
9
|
9
437-14181-00-33
Body, Float Chmbr 1
|
437-14181-00-33 |
— | ||
|
10
|
10
985-03040-14-00
Screw, Pan Head
M4-043 |
985-03040-14-00 |
— | ||
| replacement | |||||
|
10
|
10
98580-04014-00 Screw, Pan HeadM4-043 |
98580-04014-00 |
from US $1.42 |
||
|
11
|
11
137-14143-28-A0 Jet, Main (#140) |
137-14143-28-A0 |
from US $10.71 |
||
|
11
|
11
137-14143-30-00 Jet, Main#150 U.R. STD |
137-14143-30-00 |
from US $10.62 |
||
|
11
|
11
137-14143-32-00 Jet, Main #160#160 U.R. |
137-14143-32-00 |
from US $10.85 |
||
|
12
|
12
304-14198-00-00 Gasket |
304-14198-00-00 |
from US $8.78 |
||
|
13
|
13
248-14166-00-00
Bolt, Banjo
M4-043 |
248-14166-00-00 |
— | ||
| replacement | |||||
|
13
|
13
479-14166-00-00
Bolt, Banjo
M4-043 |
479-14166-00-00 |
— | ||
|
14
|
14
493-14122-00-00
Screw, Throttle
FOR 5 H.P. |
493-14122-00-00 |
— | ||
|
14
|
14
23X-14103-00-00 Throttle Screw SetM4-043 |
23X-14103-00-00 |
from US $31.17 |
||
|
15
|
15
137-14133-00-00 Spring, Throttle StopM4-043 |
137-14133-00-00 |
from US $5.10 |
||
|
15
|
15
493-14133-00-00 Spring, Throttle StopFOR 5 H.P. |
493-14133-00-00 |
US $10.43 |
||
|
16
|
16
22K-14104-00-00 Air Screw SetM4-043 |
22K-14104-00-00 |
from US $12.13 |
||
|
17
|
17
174-14134-00-00 Spring, Air Adjusting |
174-14134-00-00 |
from US $7.79 |
||
|
18
|
18
304-14112-15-00 Valve, Throttle 1 |
304-14112-15-00 |
US $84.11 |
||
|
19
|
19
18L-1490J-00-00 Needle |
18L-1490J-00-00 |
from US $22.53 |
||
|
20
|
20
164-14137-00-00
Clip
|
164-14137-00-00 |
— | ||
| replacement | |||||
|
20
|
20
3FA-14137-00-00 Clip |
3FA-14137-00-00 |
from US $2.69 |
||
|
21
|
21
137-14136-00-00 Seat, Spring |
137-14136-00-00 |
US $16.20 |
||
|
22
|
22
3X3-14131-00-00 Spring, Thrtl Valve |
3X3-14131-00-00 |
from US $14.45 |
||
|
23
|
23
363-14137-00-00 Clip |
363-14137-00-00 |
from US $12.13 |
||
|
24
|
24
193-14126-00-00 Gasket |
193-14126-00-00 |
from US $3.26 |
||
|
25
|
25
437-14158-00-33
Top, Mixing Chamber
|
437-14158-00-33 |
— | ||
|
26
|
26
363-14198-00-00 Gasket |
363-14198-00-00 |
from US $6.38 |
||
|
27
|
27
363-14155-00-00
Guide, Cable
|
363-14155-00-00 |
— | ||
|
28
|
28
127-14161-00-00 Nut, Cable Adjusting |
127-14161-00-00 |
from US $4.96 |
||
|
29
|
29
156-14135-00-00 Coil, Spring |
156-14135-00-00 |
from US $7.79 |
||
|
30
|
30
304-14171-00-00
Plunger, Starter
|
304-14171-00-00 |
— | ||
|
31
|
31
152-14174-00-00 Cap, PlungerM4-043 |
152-14174-00-00 |
from US $27.49 |
||
|
32
|
32
152-14138-00-00
Clip, Plunger
|
152-14138-00-00 |
— | ||
|
33
|
33
132-14173-00-00 Cover, Plunger Cap |
132-14173-00-00 |
from US $8.08 |
||
|
34
|
34
304-14261-00-00 Holder |
304-14261-00-00 |
from US $31.17 |
||
|
35
|
35
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.77 |
||
|
36
|
36
183-14197-01-00 Pipe, Airvent |
183-14197-01-00 |
from US $18.56 |
||
|
37
|
37
23F-14197-00-00 Pipe, Airvent |
23F-14197-00-00 |
from US $15.58 |
||
