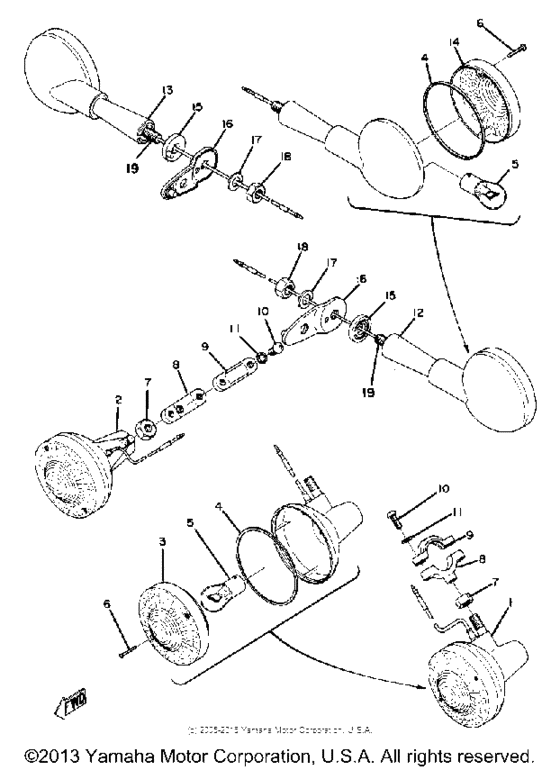

Flasher light Diagram Yamaha DT100
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
438-83310-62-93
Frt Flshr Lite Assemblylamp Ass
|
438-83310-62-93 |
— | ||
|
2
|
2
438-83310-62-93
Frt Flshr Lite Assemblylamp Ass
|
438-83310-62-93 |
— | ||
|
3
|
3
341-83312-70-00 Lens, Flasher |
341-83312-70-00 |
from US $7.76 |
||
|
4
|
4
3Y6-83313-00-00 Gasket, Flasher Lens |
3Y6-83313-00-00 |
from US $4.39 |
||
|
5
|
5
115-83311-60-00 Bulb 6V21Cp(1129)Bulb (6v/18w) 6V21CP1129 |
115-83311-60-00 |
from US $4.53 |
||
| replacement | |||||
|
5
|
5
115-83311-60-XX BULB 6V21CP(1129)6V21CP1129 |
115-83311-60-XX |
US $9.02 |
||
|
6
|
6
341-83333-70-00 Screw, Special |
341-83333-70-00 |
from US $1.56 |
||
| replacements | |||||
|
6
|
6
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
|
6
|
6
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $2.22 |
||
|
7
|
7
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
7
|
7
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
8
|
8
437-83328-01-00
Stay, Flasher 2
|
437-83328-01-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
275-83318-00-00
Stay, Flasher 1
|
275-83318-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
10
|
10
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
11
|
11
92901-06300-00 Washer,in.toothWasher,tooth 100101~ |
92901-06300-00 |
US $1.84 |
||
| replacement | |||||
|
11
|
11
92990-06300-00 Washer, Internal Tooth |
92990-06300-00 |
from US $1.84 |
||
|
12
|
12
437-83330-61-93
R Flshr Lite Assembly
|
437-83330-61-93 |
— | ||
|
13
|
13
437-83340-61-93
No Longer Available
|
437-83340-61-93 |
— | ||
|
14
|
14
341-83332-70-00
Lens, Flasher
|
341-83332-70-00 |
— | ||
|
15
|
15
437-83326-00-00
Collar, Flasher 2
|
437-83326-00-00 |
— | ||
|
16
|
16
437-83367-01-00
Stay, Flasher3
|
437-83367-01-00 |
— | ||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
18
|
18
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
18
|
18
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
19
|
19
360-83367-09-00
Bolt, Stud
M4-091 |
360-83367-09-00 |
— | ||
