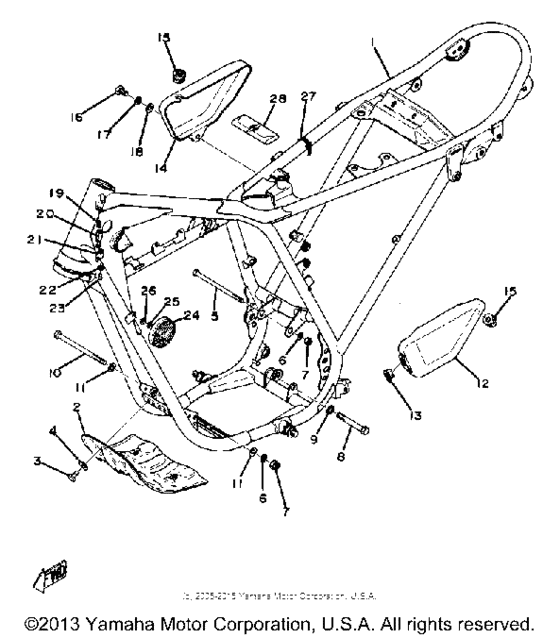

Frame side cover Diagram Yamaha DT100
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
437-21110-20-33
Frame
|
437-21110-20-33 |
— | ||
|
2
|
2
401-21471-00-90
Protector, Engine
|
401-21471-00-90 |
— | ||
|
3
|
3
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
3
|
3
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
4
|
4
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
5
|
5
90105-08120-00 Bolt, Flange |
90105-08120-00 |
from US $7.51 |
||
| replacement | |||||
|
5
|
5
95817-08105-00 Bolt, Flange |
95817-08105-00 |
from US $7.79 |
||
|
6
|
6
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
7
|
7
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
7
|
7
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
8
|
8
90105-10037-00 Bolt, Flange |
90105-10037-00 |
from US $6.52 |
||
|
9
|
9
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
10
|
10
90105-08024-00 Bolt, Flange |
90105-08024-00 |
from US $5.10 |
||
|
11
|
11
90209-08050-00 Washer, Spec''l Shap |
90209-08050-00 |
from US $4.11 |
||
|
12
|
12
437-21710-00-00
Side Cover Assembly 1
|
437-21710-00-00 |
— | ||
|
13
|
13
437-21717-10-00 Damper |
437-21717-10-00 |
from US $5.53 |
||
|
14
|
14
437-21721-00-00
Cover, Side 2
|
437-21721-00-00 |
— | ||
|
15
|
15
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.94 |
||
|
16
|
16
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
16
|
16
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
19
|
19
905-02080-05-00
Spring, Conical (214-23485-00)
214-23485-00 |
905-02080-05-00 |
— | ||
|
20
|
20
341-23408-01-00 Steering Lock Assembly (214-234214-234 |
341-23408-01-00 |
from US $86.63 |
||
|
21
|
21
134-23484-10-00 Cap, Handle Lock |
134-23484-10-00 |
from US $10.34 |
||
|
22
|
22
90206-04003-00
Washer, Wave
214-23488-00 |
90206-04003-00 |
— | ||
|
23
|
23
90269-04003-00 Rivet |
90269-04003-00 |
from US $2.55 |
||
|
24
|
24
355-85111-01-00 Reflector, Front 1 |
355-85111-01-00 |
from US $11.62 |
||
|
25
|
25
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
26
|
26
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
27
|
27
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
27
|
27
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
27
|
27
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
28
|
28
315-W2810-10-00 Tool Kit |
315-W2810-10-00 |
US $67.15 |
||
