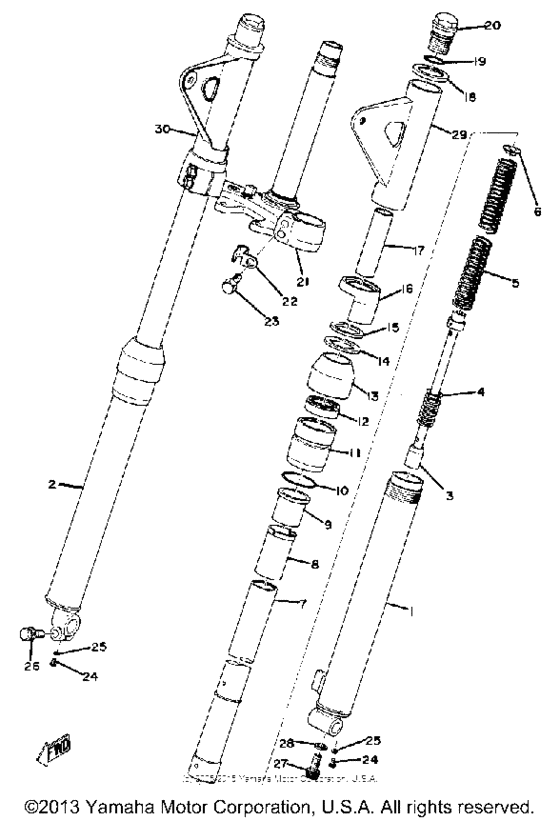

Front fork Diagram Yamaha DT100
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
437-23101-01-00
Front Fork Assembly
|
437-23101-01-00 |
— | ||
|
1
|
1
437-23126-00-00
Tube, Outer 1
|
437-23126-00-00 |
— | ||
|
2
|
2
437-23136-00-00
Tube, Outer 2
|
437-23136-00-00 |
— | ||
|
3
|
3
248-23170-01-00
Cylinder, Frtfrk
|
248-23170-01-00 |
— | ||
|
4
|
4
248-23152-00-00
Spring, Sub
|
248-23152-00-00 |
— | ||
|
5
|
5
318-23141-00-00
Spring, Front Fork
|
318-23141-00-00 |
— | ||
|
6
|
6
304-23142-50-00
Seat, Spring Upper
|
304-23142-50-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
437-23124-00-00
Tube, Inner 1
|
437-23124-00-00 |
— | ||
|
8
|
8
248-23166-00-00
Spacer, Oil Lock
|
248-23166-00-00 |
— | ||
|
9
|
9
137-23125-01-00
Metal, Slide 1
|
137-23125-01-00 |
— | ||
|
10
|
10
137-23147-00-00
O-Ring
|
137-23147-00-00 |
— | ||
|
11
|
11
193-23150-40-00
Outer Nut
|
193-23150-40-00 |
— | ||
|
12
|
12
137-23145-01-00 Oil Seal |
137-23145-01-00 |
from US $47.66 |
||
|
13
|
13
248-23144-00-00 Seal, Dust |
248-23144-00-00 |
from US $35.20 |
||
|
14
|
14
437-23163-00-00
Gasket
|
437-23163-00-00 |
— | ||
|
15
|
15
437-23161-00-00
Washer, Light Stay
|
437-23161-00-00 |
— | ||
|
16
|
16
304-23122-50-00
Cover, Outer 1
|
304-23122-50-00 |
— | ||
|
17
|
17
248-23118-00-00
Spacer
|
248-23118-00-00 |
— | ||
|
18
|
18
248-23115-01-00
Guide, Cover Upper
|
248-23115-01-00 |
— | ||
|
19
|
19
146-23114-00-00 Packing |
146-23114-00-00 |
from US $13.74 |
||
|
20
|
20
2K5-23111-00-00
Bolt, Cap
|
2K5-23111-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
437-23340-00-33
Under Bracket
|
437-23340-00-33 |
— | ||
|
22
|
22
256-23318-60-00
Holder, Cable 1
|
256-23318-60-00 |
— | ||
|
23
|
23
18G-23128-00-00 Bolt, With Washer |
18G-23128-00-00 |
from US $7.37 |
||
|
24
|
24
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
25
|
25
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
26
|
26
90119-08010-00
Bolt, With Washer
|
90119-08010-00 |
— | ||
| replacement | |||||
|
26
|
26
5X6-23181-L0-00
Bolt, Hexagon Socket Head
|
5X6-23181-L0-00 |
— | ||
|
27
|
27
913-11080-20-00
Bolt, Hexagon Socket Head
|
913-11080-20-00 |
— | ||
| replacement | |||||
|
27
|
27
91314-08020-00 Bolt, Hexagon Socket Head |
91314-08020-00 |
from US $1.52 |
||
|
28
|
28
214-23158-00-00
Gasket
|
214-23158-00-00 |
— | ||
|
29
|
29
438-23121-00-20
Cover, Upper 1
CRYSTAL SILVER |
438-23121-00-20 |
— | ||
|
30
|
30
438-23131-00-20
Cover, Upper 2
CRYSTAL SILVER |
438-23131-00-20 |
— | ||
