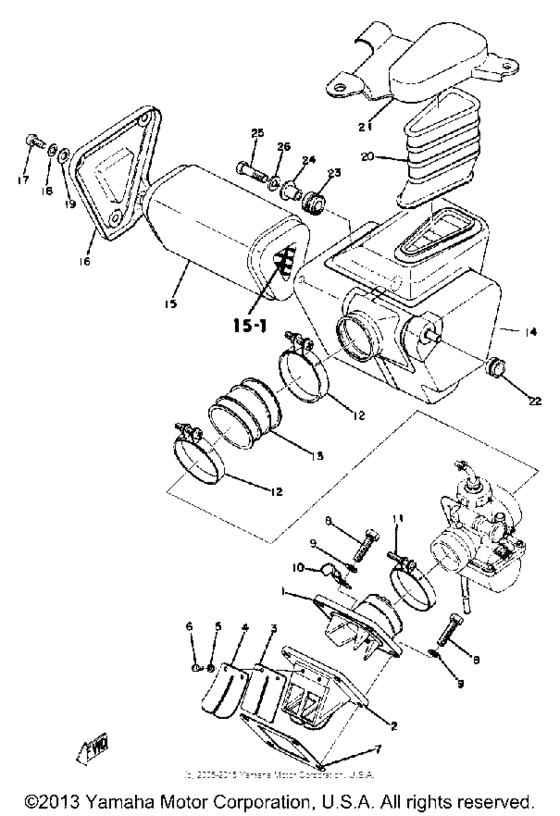

Intake Diagram Yamaha DT100
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
401-13565-01-00
Joint, Carburetor
|
401-13565-01-00 |
— | ||
|
2
|
2
558-13610-00-00 Reed Valve Asy |
558-13610-00-00 |
from US $276.32 |
||
| replacement | |||||
|
2
|
2
345-13610-20-00 Reed Valve Assy |
345-13610-20-00 |
from US $276.32 |
||
|
3
|
3
345-13613-70-00 Reed, Valve |
345-13613-70-00 |
from US $46.70 |
||
|
4
|
4
345-13616-70-00 Stopper, Reed Valve |
345-13616-70-00 |
from US $21.99 |
||
|
5
|
5
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
6
|
6
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
7
|
7
87A-13621-00-00 Gasket, Valve Seat |
87A-13621-00-00 |
from US $4.11 |
||
|
8
|
8
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.52 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
90462-05005-00 Clamp |
90462-05005-00 |
from US $2.13 |
||
|
11
|
11
90460-43053-00 Clamp, Hose |
90460-43053-00 |
from US $7.65 |
||
| replacement | |||||
|
11
|
11
90460-43179-00 Clamp, Hose |
90460-43179-00 |
from US $7.65 |
||
|
12
|
12
90460-51059-00 Clamp, Hose |
90460-51059-00 |
from US $7.65 |
||
|
13
|
13
437-14453-00-00 Joint, Air Clnr 1 |
437-14453-00-00 |
from US $21.68 |
||
|
14
|
14
437-14411-01-00
Case, Air Cleaner 1
|
437-14411-01-00 |
— | ||
|
15
|
15
437-14451-09-00 Element, Air Clnr |
437-14451-09-00 |
from US $39.13 |
||
| replacement | |||||
|
15
|
15
437-14451-08-00 |
437-14451-08-00 |
US $23.35 |
||
|
16
|
16
437-14412-00-00
Cap, Cleaner Case 1
|
437-14412-00-00 |
— | ||
|
17
|
17
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
17
|
17
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
20
|
20
437-14437-01-00
Duct
|
437-14437-01-00 |
— | ||
|
21
|
21
437-14418-00-00
Cover 2
|
437-14418-00-00 |
— | ||
|
22
|
22
90480-10091-00 Grommet (214-21746-00)214-21746-00 |
90480-10091-00 |
from US $2.83 |
||
|
23
|
23
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
24
|
24
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
25
|
25
970-21060-30-00
Bolt
|
970-21060-30-00 |
— | ||
| replacements | |||||
|
25
|
25
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
25
|
25
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.52 |
||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
