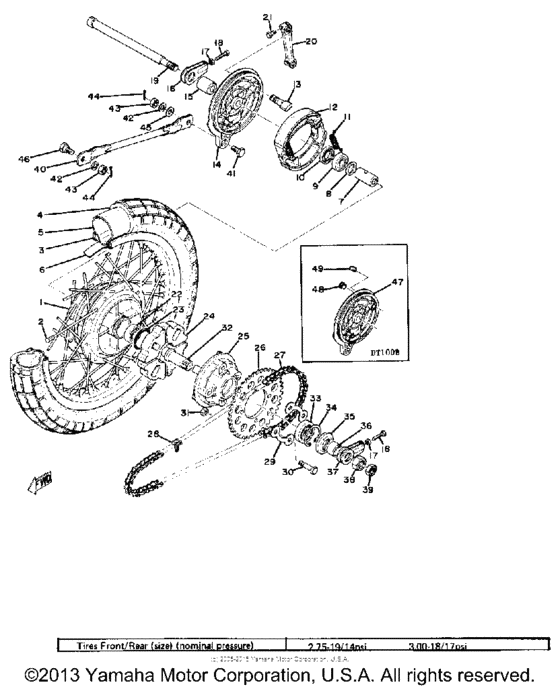

Rear wheel Diagram Yamaha DT100
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
183-25311-00-38
Hub,rear
|
183-25311-00-38 |
— | ||
| replacement | |||||
|
1
|
1
183-25311-00-00 FLANGE,SPACER 2 |
183-25311-00-00 |
from US $158.52 |
||
|
2
|
2
183-25304-01-00 Spoke Set, Rear |
183-25304-01-00 |
US $111.64 |
||
|
2
|
2
183-25397-90-00
Spoke Set, Outer 2
10 PCS. |
183-25397-90-00 |
— | ||
|
3
|
3
944-14180-07-00
Rim (1.40-18)
1.40-18 |
944-14180-07-00 |
— | ||
| replacement | |||||
|
3
|
3
944-14185-45-00 Rim (1.40-18), Union Cycle1.40-18 |
944-14185-45-00 |
from US $89.94 |
||
|
4
|
4
941-30183-22-00
300X18 Yoko Y620
Y620 |
941-30183-22-00 |
— | ||
|
5
|
5
94230-18084-00 Tube (3.00-18) |
94230-18084-00 |
US $27.38 |
||
| replacement | |||||
|
5
|
5
94227-18195-00 Tube |
94227-18195-00 |
US $37.53 |
||
|
6
|
6
94325-18043-00 Band, Rim (538)2.50-18 |
94325-18043-00 |
from US $4.39 |
||
| replacement | |||||
|
6
|
6
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.72 |
||
|
7
|
7
90560-15136-00 Spacer (136-25317-00)136-25317-00 |
90560-15136-00 |
from US $11.19 |
||
|
8
|
8
146-25116-00-00 Flange, Spacer 2 |
146-25116-00-00 |
from US $4.53 |
||
|
9
|
9
93306-20211-00 Bearing (B6202) |
93306-20211-00 |
from US $19.13 |
||
|
10
|
10
93104-22018-00 Oil Seal |
93104-22018-00 |
from US $6.52 |
||
|
11
|
11
90506-17328-00 Spring, Tension |
90506-17328-00 |
from US $8.36 |
||
|
12
|
12
183-W2536-00-00
Brake Shoe Set-2Pcs
|
183-W2536-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
437-W2536-00-00
Brake Shoe Set-2Pcs
|
437-W2536-00-00 |
— | ||
| replacement | |||||
|
12
|
12
3KG-W253E-00-00 Brake Shoe Kit |
3KG-W253E-00-00 |
from US $30.49 |
||
|
13
|
13
2RH-25351-00-00 Camshaft |
2RH-25351-00-00 |
from US $33.29 |
||
|
14
|
14
437-25026-10-35 Brake Shoe Plate Assemblyassy ( |
437-25026-10-35 |
from US $142.30 |
||
|
15
|
15
90387-15425-00 Collar |
90387-15425-00 |
from US $7.81 |
||
|
16
|
16
248-25388-00-00 Puller, Chain 1 |
248-25388-00-00 |
from US $28.90 |
||
|
17
|
17
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
17
|
17
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
18
|
18
90101-08699-00 Bolt |
90101-08699-00 |
from US $3.42 |
||
| replacements | |||||
|
18
|
18
90101-08060-00 Bolt |
90101-08060-00 |
from US $3.54 |
||
|
18
|
18
90101-08777-00 Bolt |
90101-08777-00 |
from US $1.81 |
||
|
19
|
19
382-25381-00-00
Axle, Wheel
|
382-25381-00-00 |
— | ||
|
20
|
20
214-25355-00-00 Lever, Camshaft |
214-25355-00-00 |
from US $49.05 |
||
|
21
|
21
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
21
|
21
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
22
|
22
933-06202-04-00 Bearing |
933-06202-04-00 |
from US $12.06 |
||
|
23
|
23
93210-42101-00 O-Ring |
93210-42101-00 |
from US $2.77 |
||
|
24
|
24
304-25364-01-00 Damper, Clutch |
304-25364-01-00 |
from US $5.40 |
||
|
25
|
25
58K-25366-00-00
Clutch, Hub
|
58K-25366-00-00 |
— | ||
|
26
|
26
276-25449-10-00
Sprocket, Drivn 49T (49T)
49T 49T U.R. STD |
276-25449-10-00 |
— | ||
|
26
|
26
276-25452-10-00
Std (Ht1Bm) Pn302Sprocket, Driv
|
276-25452-10-00 |
— | ||
|
26
|
26
276-25455-10-33
Sprocket, Drivn 55T
55T U.R. |
276-25455-10-33 |
— | ||
|
26
|
26
183-25446-20-00 Sprocket, Drvn45T (45T)45T U.R. |
183-25446-20-00 |
from US $49.91 |
||
|
27
|
27
945-80241-16-00 Chain (Did428Hg-11 |
945-80241-16-00 |
from US $36.75 |
||
| replacements | |||||
|
27
|
27
9Y5-80881-15-00 Chain |
9Y5-80881-15-00 |
from US $38.15 |
||
|
27
|
27
9Y5-82511-15-00 CHAIN |
9Y5-82511-15-00 |
from US $36.75 |
||
|
28
|
28
946-04240-01-00
New Genuine Part
IN PRICE BOOK |
946-04240-01-00 |
— | ||
|
29
|
29
102-25412-00-00 Washer, Lock |
102-25412-00-00 |
from US $2.55 |
||
| replacements | |||||
|
29
|
29
4AW-25412-00-00 Washer |
4AW-25412-00-00 |
from US $2.55 |
||
|
29
|
29
3M5-25412-00-00 Washer, Lock |
3M5-25412-00-00 |
from US $4.39 |
||
|
30
|
30
90101-08672-00 Bolt |
90101-08672-00 |
from US $1.70 |
||
|
31
|
31
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
31
|
31
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
32
|
32
183-25387-00-00 Axle, Sprocket |
183-25387-00-00 |
from US $28.49 |
||
|
33
|
33
93306-00406-00 Bearing |
93306-00406-00 |
from US $15.44 |
||
| replacement | |||||
|
33
|
33
93306-00438-00 Bearing |
93306-00438-00 |
from US $14.48 |
||
|
34
|
34
990-09425-00-00 Circlip |
990-09425-00-00 |
from US $1.66 |
||
|
35
|
35
93106-26005-00 Oil Seal |
93106-26005-00 |
from US $7.08 |
||
|
36
|
36
90387-20165-00 Collar |
90387-20165-00 |
from US $7.79 |
||
|
37
|
37
214-25388-00-00 Puller, Chain 1 |
214-25388-00-00 |
from US $20.71 |
||
|
38
|
38
90170-20167-00 Nut, Hexagon (137-25385-00)137-25385-00 |
90170-20167-00 |
from US $21.68 |
||
|
39
|
39
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
39
|
39
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
|
40
|
40
401-25371-01-00
Bar, Tension
|
401-25371-01-00 |
— | ||
|
41
|
41
90109-08063-00 Bolt |
90109-08063-00 |
from US $4.39 |
||
|
42
|
42
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
43
|
43
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
43
|
43
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
44
|
44
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
44
|
44
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
45
|
45
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
46
|
46
90109-08368-00 Bolt |
90109-08368-00 |
from US $5.67 |
||
|
47
|
47
437-25026-10-35 Brake Shoe Plate Assemblyassy ( |
437-25026-10-35 |
from US $142.30 |
||
|
48
|
48
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
49
|
49
437-25134-00-00
Label, Indicator
|
437-25134-00-00 |
— | ||
