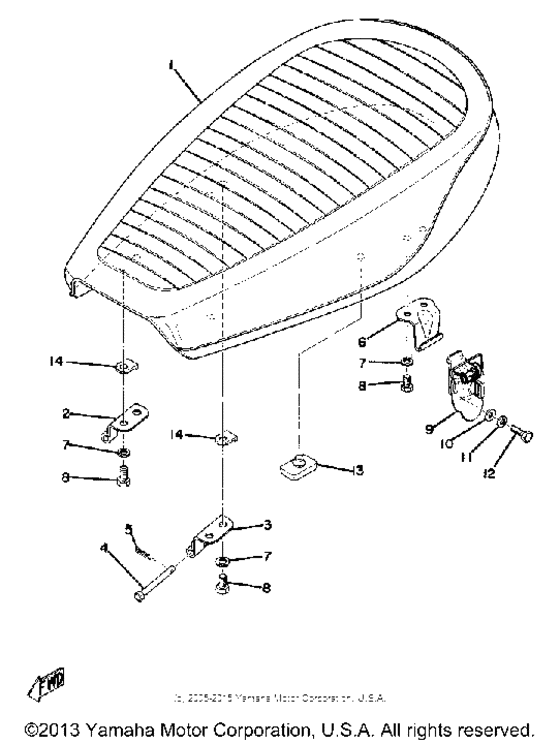

Seat Diagram Yamaha DT100
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
452-24730-01-00
Single Seat Assembly
|
452-24730-01-00 |
— | ||
|
1
|
1
437-24711-01-00
Cover, Single Seat
|
437-24711-01-00 |
— | ||
|
2
|
2
248-24726-00-33
Hinge, Seat
|
248-24726-00-33 |
— | ||
|
3
|
3
437-24726-00-00
Hinge, Seat
|
437-24726-00-00 |
— | ||
|
4
|
4
91701-05055-00 Pin |
91701-05055-00 |
from US $2.98 |
||
|
5
|
5
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
6
|
6
214-24728-00-33
Bracket, Seat
|
214-24728-00-33 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
8
|
8
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
8
|
8
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
9
|
9
1K8-24705-00-00 Seat Lock Assembly (2A3-24705-02A3-24705-0 |
1K8-24705-00-00 |
from US $94.72 |
||
|
10
|
10
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
12
|
12
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
13
|
13
214-24724-00-00 Damper, Seat |
214-24724-00-00 |
from US $7.65 |
||
|
14
|
14
437-24768-00-00
Stopper
|
437-24768-00-00 |
— | ||
