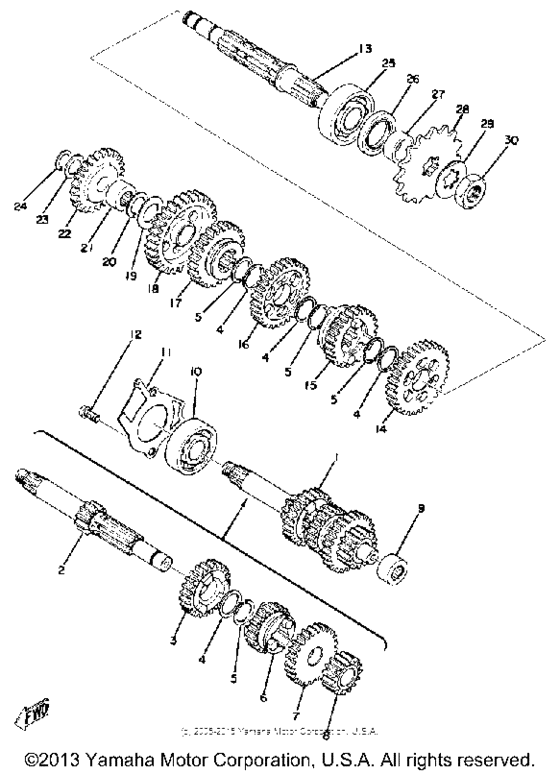

Transmission Diagram Yamaha DT100
- Year
- 1975
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
437-17410-00-00
Main Axle
|
437-17410-00-00 |
— | ||
|
2
|
2
437-17411-01-00 Axle, Main |
437-17411-01-00 |
from US $132.89 |
||
|
3
|
3
437-17141-00-00 Gear,4Th Pinion |
437-17141-00-00 |
US $52.20 |
||
| replacement | |||||
|
3
|
3
4EG-17141-00-00 Gear, 4Th Pinion |
4EG-17141-00-00 |
US $49.63 |
||
|
4
|
4
90201-20266-00 Washer, Plate |
90201-20266-00 |
from US $1.56 |
||
|
5
|
5
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.94 |
||
|
6
|
6
427-17131-00-00 Gear, 3Rd Pinion3RD PINION 19T |
427-17131-00-00 |
US $110.43 |
||
|
7
|
7
437-17151-00-00 Gear, 5Th Pinion5TH PINION 25T |
437-17151-00-00 |
US $103.27 |
||
|
8
|
8
437-17121-02-00 Gear, 2Nd Pinion2ND PINION |
437-17121-02-00 |
US $53.46 |
||
|
9
|
9
93315-31502-00 Bearing |
93315-31502-00 |
from US $12.12 |
||
|
10
|
10
933-06303-09-00
Bearing
|
933-06303-09-00 |
— | ||
| replacement | |||||
|
10
|
10
93306-30317-00 Bearing |
93306-30317-00 |
from US $27.74 |
||
|
11
|
11
1G8-17471-00-00 Plate, Cover |
1G8-17471-00-00 |
US $14.96 |
||
|
12
|
12
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
13
|
13
315-17421-01-00 Axle, Drive |
315-17421-01-00 |
from US $151.98 |
||
|
14
|
14
427-17221-00-00 Gear, 2Nd Wheel2ND WHEEL 30T |
427-17221-00-00 |
from US $51.88 |
||
|
15
|
15
437-17251-00-00
Gear, 5Th Wheel
5TH WHEEL 20T |
437-17251-00-00 |
— | ||
|
16
|
16
427-17231-00-00 Gear, 3Rd WheelGear, 3rd wheel 3RD WHEEL 26T |
427-17231-00-00 |
from US $76.03 |
||
|
17
|
17
248-17241-00-00
Gear,4Th Wheel
|
248-17241-00-00 |
— | ||
| replacement | |||||
|
17
|
17
4EG-17241-00-00
Gear, 4Th Wheel
|
4EG-17241-00-00 |
— | ||
|
18
|
18
248-17211-00-00 Gear, 1St Wheel1ST WHEEL 35T |
248-17211-00-00 |
US $96.99 |
||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
1ST WHEEL 35T |
999-99999-99-00 |
— | ||
|
19
|
19
164-17427-00-06 Shim 1T=0.6 |
164-17427-00-06 |
from US $3.12 |
||
|
20
|
20
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
20
|
20
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.18 |
||
|
21
|
21
93311-31567-00 Bearing |
93311-31567-00 |
from US $24.24 |
||
|
22
|
22
403-15651-00-00 Gear, Kick Idle (28T)28T |
403-15651-00-00 |
from US $51.88 |
||
|
23
|
23
132-15653-00-12
Washer (13.3-22-1.2)
13.3-22-1.2 U.R. |
132-15653-00-12 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
13.3-22-1.2 U.R. |
999-99999-99-00 |
— | ||
|
23
|
23
132-15653-00-14
Washer
|
132-15653-00-14 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
99009-13400-00 Circlip |
99009-13400-00 |
from US $2.41 |
||
|
25
|
25
93306-30421-00 Bearing |
93306-30421-00 |
from US $31.91 |
||
| replacement | |||||
|
25
|
25
933-06304-42-00 Bearing |
933-06304-42-00 |
from US $25.80 |
||
|
26
|
26
931-02260-42-00 Oil Seal |
931-02260-42-00 |
from US $6.51 |
||
|
27
|
27
90387-20491-00 Collar |
90387-20491-00 |
from US $5.81 |
||
|
28
|
28
93822-15065-00 Sprocket,drive 15T(1741746150)15T1741746150 U.R. |
93822-15065-00 |
from US $20.26 |
||
|
28
|
28
93822-14037-00 Sprocket, Drive (5N0-17461-40-014T1741746140 U.R. STD |
93822-14037-00 |
from US $17.71 |
||
| replacement | |||||
|
28
|
28
938-22140-43-00 Sprocket, Drive (5N0-17461-40-014T1741746140 U.R. STD |
938-22140-43-00 |
from US $24.68 |
||
|
28
|
28
93822-13024-00 Sprocket, Drive (13T)13T1741746130 U.R. |
93822-13024-00 |
from US $18.84 |
||
| replacement | |||||
|
28
|
28
93822-13213-00 Sprocket, Drive (13T)13T1741746130 U.R. |
93822-13213-00 |
from US $18.84 |
||
|
29
|
29
90215-16020-00 Washer, Lock |
90215-16020-00 |
from US $3.68 |
||
| replacement | |||||
|
29
|
29
90215-16127-00 Washer, Lock (1L8) |
90215-16127-00 |
from US $3.68 |
||
|
30
|
30
90179-16018-00 Nut |
90179-16018-00 |
from US $3.26 |
||
| replacement | |||||
|
30
|
30
90179-16226-00 Nut (1L8) |
90179-16226-00 |
from US $7.49 |
||
