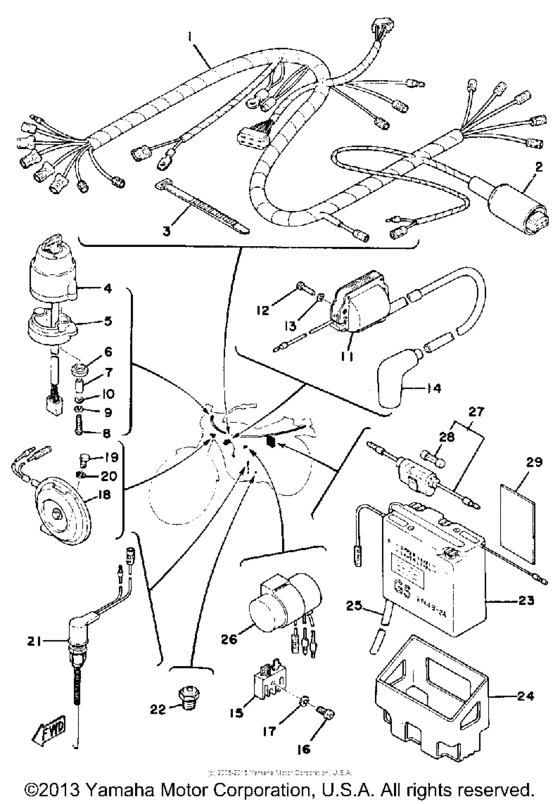

Electrical Diagram Yamaha DT100
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
558-82590-20-00
Wire Harness Assembly
|
558-82590-20-00 |
— | ||
|
2
|
2
307-82599-01-00
No Longer Available
M5-076 |
307-82599-01-00 |
— | ||
|
3
|
3
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
4
|
4
443-82508-21-00
Main Switch Assembly
|
443-82508-21-00 |
— | ||
|
5
|
5
437-82555-00-00
Damper, Main Swch 1Switch 1
1SWITCH 1 |
437-82555-00-00 |
— | ||
|
6
|
6
1M1-82556-00-00
Damper, Stopper
|
1M1-82556-00-00 |
— | ||
|
7
|
7
437-82516-00-00
Collar, Main Switch
|
437-82516-00-00 |
— | ||
|
8
|
8
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
8
|
8
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
9
|
9
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
11
|
11
1Y8-82310-40-00 Ignition Coil Assembly |
1Y8-82310-40-00 |
from US $151.70 |
||
|
12
|
12
98580-06020-00 Screw, Pan HeadM5-076 |
98580-06020-00 |
from US $1.02 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
15
|
15
353-81970-63-00 Rectifier Assembly |
353-81970-63-00 |
from US $40.62 |
||
| replacements | |||||
|
15
|
15
353-81970-M0-00 Rectifier Assy |
353-81970-M0-00 |
from US $40.62 |
||
|
15
|
15
353-81970-M1-00 Rectifier Assy |
353-81970-M1-00 |
US $17.99 |
||
|
16
|
16
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
16
|
16
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
16
|
16
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
17
|
17
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
18
|
18
437-83371-13-00
Horn
|
437-83371-13-00 |
— | ||
|
19
|
19
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
19
|
19
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
21
|
21
437-82530-02-00
Stop Switch Assembly
|
437-82530-02-00 |
— | ||
|
22
|
22
136-82540-00-00 Reverse Switch Assembly |
136-82540-00-00 |
from US $18.84 |
||
| replacement | |||||
|
22
|
22
136-82540-03-00 Reverse Switch Assembly |
136-82540-03-00 |
from US $18.84 |
||
|
23
|
23
BTY-6N4B2-A3-00
Yuasa 6N4B-2A-3
|
BTY-6N4B2-A3-00 |
— | ||
| replacement | |||||
|
23
|
23
6N4-B2A3Y-00-00
CB7LB GS BATTERY
|
6N4-B2A3Y-00-00 |
— | ||
|
24
|
24
558-82122-00-00
Seat, Battery
|
558-82122-00-00 |
— | ||
|
25
|
25
90445-08286-00 Hose |
90445-08286-00 |
US $4.96 |
||
| replacement | |||||
|
25
|
25
90445-081F1-00 Hose (L508) |
90445-081F1-00 |
from US $4.96 |
||
|
26
|
26
438-83350-62-00
Flasher Relay Assembly
|
438-83350-62-00 |
— | ||
|
27
|
27
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
| replacement | |||||
|
27
|
27
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
28
|
28
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
28
|
28
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
29
|
29
118-82141-09-00
Label, Battery
|
118-82141-09-00 |
— | ||
| replacements | |||||
|
29
|
29
40A-82141-G0-00
Label, Battery
|
40A-82141-G0-00 |
— | ||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
