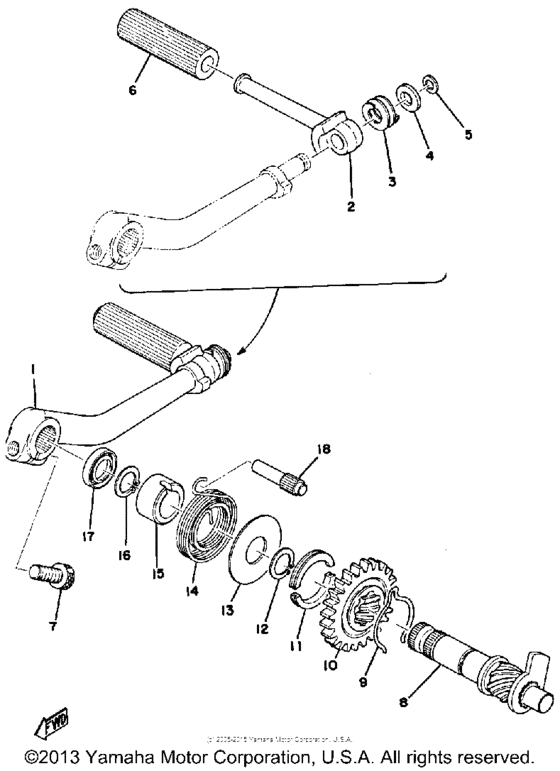

Starter Diagram Yamaha DT100
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1X0-15620-00-00 Kick Crank Assembly (437-15610-437-15610- |
1X0-15620-00-00 |
from US $115.03 |
||
|
2
|
2
137-15612-01-00
Lever, Kick
|
137-15612-01-00 |
— | ||
|
3
|
3
90504-18031-00 Spring, Compression |
90504-18031-00 |
from US $3.05 |
||
|
4
|
4
90209-10108-00
Washer,spec'l Shape
|
90209-10108-00 |
— | ||
| replacement | |||||
|
4
|
4
902-09102-10-00
Washer (5L1)
|
902-09102-10-00 |
— | ||
|
5
|
5
934-40100-28-00
Circlip, Outer
|
934-40100-28-00 |
— | ||
|
6
|
6
156-15618-01-00 Cover, Kick Lever |
156-15618-01-00 |
from US $4.58 |
||
|
7
|
7
91316-08025-00 Bolt |
91316-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $1.16 |
||
|
8
|
8
403-15660-01-00 Kick Axle Assembly |
403-15660-01-00 |
US $102.29 |
||
| replacement | |||||
|
8
|
8
403-15660-02-00 Kick Axle Assembly |
403-15660-02-00 |
US $102.29 |
||
|
9
|
9
90468-26048-00 Clip |
90468-26048-00 |
from US $1.94 |
||
|
10
|
10
315-15641-00-00 Gear, Kick27T |
315-15641-00-00 |
from US $59.13 |
||
|
11
|
11
248-15654-00-00 Holder, Kick Gear |
248-15654-00-00 |
from US $9.21 |
||
|
12
|
12
99009-30400-00 Circlip |
99009-30400-00 |
from US $1.56 |
||
|
13
|
13
401-15676-00-00 Cover, Spring |
401-15676-00-00 |
from US $2.98 |
||
|
14
|
14
90508-26041-00 Spring, Torsion |
90508-26041-00 |
from US $8.93 |
||
|
15
|
15
401-15666-00-00
Spacer
|
401-15666-00-00 |
— | ||
|
16
|
16
99009-17400-00 Circlip |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
93410-17X00-00 Circlip |
93410-17X00-00 |
US $1.50 |
||
|
17
|
17
93101-17062-00 Oil Seal |
93101-17062-00 |
from US $8.22 |
||
|
18
|
18
257-15668-00-00 Stopper |
257-15668-00-00 |
from US $3.67 |
||
