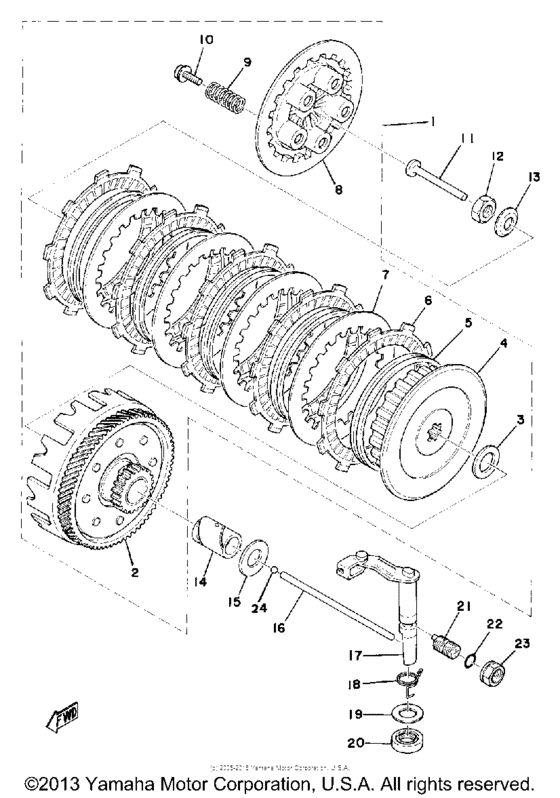

Clutch Diagram Yamaha DT100
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
558-16301-01-00
Clutch Assembly
|
558-16301-01-00 |
— | ||
|
2
|
2
525-16150-00-00
Pri Driven Gear (74T)
74T |
525-16150-00-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
74T |
999-99999-99-00 |
— | ||
|
3
|
3
122-16164-00-00 Plate, Thrust 2 |
122-16164-00-00 |
from US $7.79 |
||
|
4
|
4
525-16371-02-00
Boss, Clutch
|
525-16371-02-00 |
— | ||
|
5
|
5
307-16367-00-00
Ring, Cushion
|
307-16367-00-00 |
— | ||
|
6
|
6
559-16321-01-00
Plate, Friction
|
559-16321-01-00 |
— | ||
| replacement | |||||
|
6
|
6
36X-16321-00-00 Plate, Friction |
36X-16321-00-00 |
from US $15.50 |
||
|
7
|
7
137-16325-70-00 Plate, Clutch 2 |
137-16325-70-00 |
from US $17.78 |
||
| replacement | |||||
|
7
|
7
137-16325-80-00 Plate, Clutch 2 |
137-16325-80-00 |
US $16.85 |
||
|
8
|
8
525-16351-00-00
Plate, Pressure 1
|
525-16351-00-00 |
— | ||
|
9
|
9
90501-20125-00 Spring, Compression |
90501-20125-00 |
from US $4.11 |
||
|
10
|
10
90159-05011-00 Screw, With Washer |
90159-05011-00 |
from US $1.70 |
||
|
11
|
11
137-16356-00-00 Rod, Push 1 |
137-16356-00-00 |
from US $18.99 |
||
|
12
|
12
90170-12060-00 Nut |
90170-12060-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90170-12337-00 Nut(37F) |
90170-12337-00 |
from US $2.31 |
||
|
13
|
13
90208-12015-00 Washer, Conical Spring |
90208-12015-00 |
US $1.70 |
||
| replacement | |||||
|
13
|
13
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $1.04 |
||
|
14
|
14
90560-17147-00 Spacer |
90560-17147-00 |
from US $18.42 |
||
|
15
|
15
90201-17558-00 Washer, Plate |
90201-17558-00 |
from US $6.80 |
||
|
16
|
16
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
16
|
16
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
16
|
16
1W1-16357-00-00
Rod, Push 2
|
1W1-16357-00-00 |
— | ||
|
16
|
16
999-99009-10-00
Push Rod Assembly
|
999-99009-10-00 |
— | ||
|
17
|
17
525-16380-00-00 Push Lever Assembly |
525-16380-00-00 |
US $103.36 |
||
|
18
|
18
90508-14132-00 Spring, Torsion |
90508-14132-00 |
US $4.99 |
||
|
19
|
19
90201-14217-00 Washer, Plate |
90201-14217-00 |
from US $1.70 |
||
|
20
|
20
93104-14059-00 Oil Seal |
93104-14059-00 |
from US $4.72 |
||
|
21
|
21
90149-12097-00
Screw
|
90149-12097-00 |
— | ||
|
22
|
22
93210-10096-00 O-Ring |
93210-10096-00 |
from US $1.81 |
||
|
23
|
23
90179-12197-00
Nut
|
90179-12197-00 |
— | ||
| replacements | |||||
|
23
|
23
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
93503-16010-00 Ball 3-168215 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
24
|
24
93503-16003-00 Ball8215 |
93503-16003-00 |
from US $1.39 |
||
