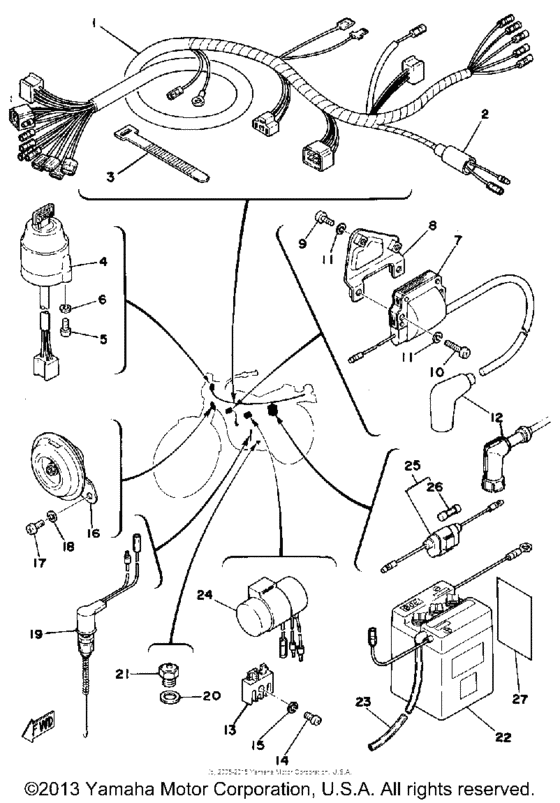

Electrical Diagram Yamaha DT100
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T9-82590-21-00
Wire Harness Assembly
|
1T9-82590-21-00 |
— | ||
|
2
|
2
307-82599-01-00
No Longer Available
|
307-82599-01-00 |
— | ||
|
3
|
3
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
4
|
4
1T9-82508-20-00
Main Switch Assembly
|
1T9-82508-20-00 |
— | ||
|
4
|
4
1T9-82508-50-00
New Genuine Part
IN PRICE BOOK CANADA |
1T9-82508-50-00 |
— | ||
|
5
|
5
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
5
|
5
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
6
|
6
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
7
|
7
5G4-82310-40-00 Ignition Coil Assembly |
5G4-82310-40-00 |
from US $163.03 |
||
| replacement | |||||
|
7
|
7
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
8
|
8
336-82316-01-00
Bracket, Ignition Coil
|
336-82316-01-00 |
— | ||
|
9
|
9
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
9
|
9
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
10
|
10
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
10
|
10
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
12
|
12
512-82370-10-00 Plug Cap Assembly |
512-82370-10-00 |
from US $44.80 |
||
| replacement | |||||
|
12
|
12
7KA-82370-00-00 Plug Cap Assy |
7KA-82370-00-00 |
from US $52.92 |
||
|
13
|
13
353-81970-63-00 Rectifier Assembly |
353-81970-63-00 |
from US $40.62 |
||
| replacements | |||||
|
13
|
13
353-81970-M0-00 Rectifier Assy |
353-81970-M0-00 |
from US $40.62 |
||
|
13
|
13
353-81970-M1-00 Rectifier Assy |
353-81970-M1-00 |
US $17.99 |
||
|
14
|
14
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
14
|
14
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
14
|
14
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
15
|
15
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
16
|
16
1K8-83371-01-00
New Genuine Part
IN PRICE BOOK |
1K8-83371-01-00 |
— | ||
|
17
|
17
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
17
|
17
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
2F5-82530-02-00
Stop Switch Assembly
|
2F5-82530-02-00 |
— | ||
|
20
|
20
37R-82543-00-00 Washer, Plate |
37R-82543-00-00 |
from US $1.28 |
||
| replacement | |||||
|
20
|
20
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
21
|
21
136-82540-00-00 Reverse Switch Assembly |
136-82540-00-00 |
from US $18.84 |
||
| replacement | |||||
|
21
|
21
136-82540-03-00 Reverse Switch Assembly |
136-82540-03-00 |
from US $18.84 |
||
|
22
|
22
BTG-6N42A-20-00
6N4-2A-2 Gs Battery
GS BATTERY |
BTG-6N42A-20-00 |
— | ||
| replacement | |||||
|
22
|
22
6N4-2A200-00-00
Bat 6N4-2A-2 Gs
GS BATTERY |
6N4-2A200-00-00 |
— | ||
|
23
|
23
90445-08172-00 Hose (L450) |
90445-08172-00 |
US $10.91 |
||
| replacement | |||||
|
23
|
23
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
24
|
24
542-83350-60-00
Flasher Relay Assembly
|
542-83350-60-00 |
— | ||
|
25
|
25
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
| replacement | |||||
|
25
|
25
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
26
|
26
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
26
|
26
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
27
|
27
118-82141-09-00
Label, Battery
U.S.A. |
118-82141-09-00 |
— | ||
| replacements | |||||
|
27
|
27
40A-82141-G0-00
Label, Battery
U.S.A. |
40A-82141-G0-00 |
— | ||
|
27
|
27
999-99999-99-00
Not Available
U.S.A. |
999-99999-99-00 |
— | ||
