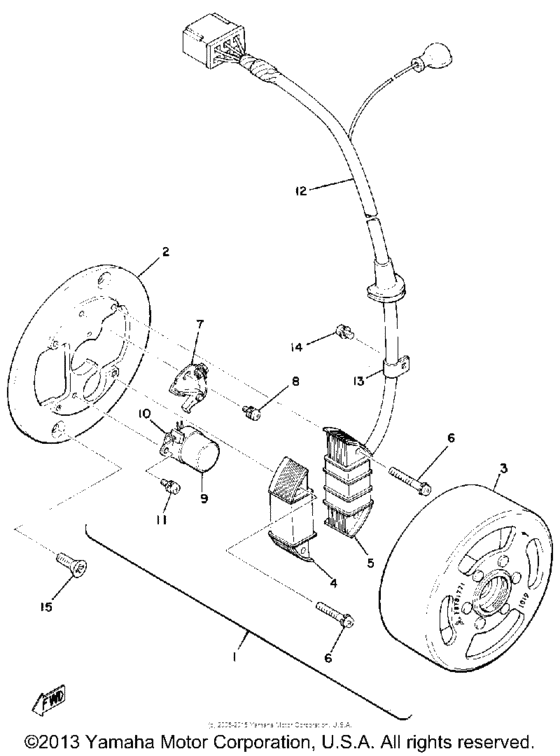

Flywheel & magneto Diagram Yamaha DT100
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T9-81300-20-00
Flywhl Magneto Assembly
|
1T9-81300-20-00 |
— | ||
|
2
|
2
437-81309-20-00
Base, Magneto
|
437-81309-20-00 |
— | ||
|
3
|
3
437-81350-20-00
Rotor Assembly
|
437-81350-20-00 |
— | ||
|
4
|
4
2U7-81312-21-00
Coil, Source
|
2U7-81312-21-00 |
— | ||
|
5
|
5
1T9-81313-20-00
Coil, Lighting 1
|
1T9-81313-20-00 |
— | ||
|
6
|
6
97602-04125-00 Screw, Pan Head With Washer |
97602-04125-00 |
US $1.21 |
||
| replacement | |||||
|
6
|
6
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
7
|
7
2F5-81321-20-00 Contact Brkr Assemblyassy |
2F5-81321-20-00 |
from US $61.02 |
||
| replacement | |||||
|
7
|
7
2A6-81321-20-00 Contact Brkr Assemblyassy |
2A6-81321-20-00 |
from US $56.34 |
||
|
8
|
8
110-81346-21-00 Screw, Pan Head |
110-81346-21-00 |
from US $4.39 |
||
|
9
|
9
1K8-81325-20-00 Condenser 1 |
1K8-81325-20-00 |
from US $46.28 |
||
|
10
|
10
116-81331-20-00 Lubricator |
116-81331-20-00 |
US $4.41 |
||
|
11
|
11
110-81346-21-00 Screw, Pan Head |
110-81346-21-00 |
from US $4.39 |
||
|
12
|
12
437-81315-20-00
Lead Wire Assembly
|
437-81315-20-00 |
— | ||
|
13
|
13
104-81328-20-00 Clamp |
104-81328-20-00 |
from US $2.69 |
||
|
14
|
14
976-01041-06-00
Screw, Pan Head With Washer
|
976-01041-06-00 |
— | ||
| replacement | |||||
|
14
|
14
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
15
|
15
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
