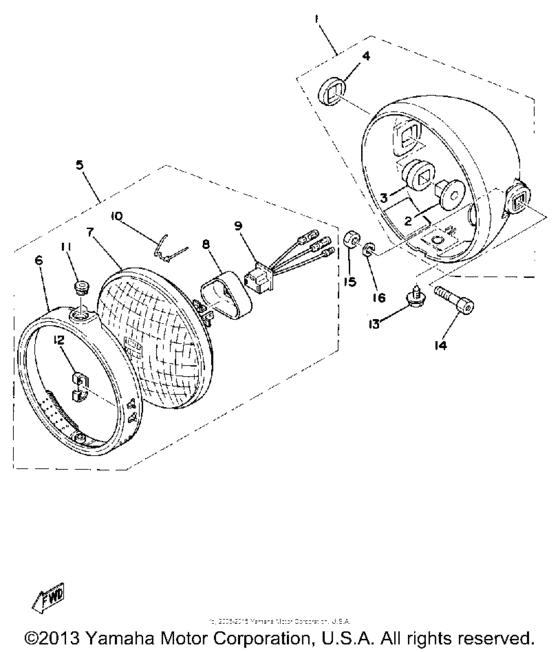

Head lamp Diagram Yamaha DT100
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1M1-84130-60-00
Body Assembly, Headlight (1M1-8
1M1-8 YAMAHA BLACK |
1M1-84130-60-00 |
— | ||
|
2
|
2
498-84145-60-00 Collar, Body Fitting |
498-84145-60-00 |
from US $9.66 |
||
|
3
|
3
498-84163-60-00 Damper |
498-84163-60-00 |
from US $9.63 |
||
|
4
|
4
1M1-84164-60-00 Damper |
1M1-84164-60-00 |
from US $16.58 |
||
|
5
|
5
UNA-VAILA-BL-EI
Carburetor Assembly
GROOVE |
UNA-VAILA-BL-EI |
— | ||
|
6
|
6
1M1-84195-61-00
Ring, Retaining
|
1M1-84195-61-00 |
— | ||
| replacement | |||||
|
6
|
6
3J0-84195-60-00 Ring, Retaining |
3J0-84195-60-00 |
from US $64.33 |
||
|
7
|
7
498-84120-61-00
Lens Assembly
|
498-84120-61-00 |
— | ||
|
8
|
8
341-83497-61-00
New Genuine Part
IN PRICE BOOK |
341-83497-61-00 |
— | ||
|
9
|
9
371-84312-60-00 Socket |
371-84312-60-00 |
from US $34.06 |
||
|
10
|
10
148-84324-00-00 Spring |
148-84324-00-00 |
from US $3.68 |
||
|
11
|
11
1M1-84133-60-00 Collar, Screw |
1M1-84133-60-00 |
from US $7.23 |
||
|
12
|
12
498-84128-60-00
Spacer
|
498-84128-60-00 |
— | ||
|
13
|
13
1M1-84137-60-00 Bolt, Special |
1M1-84137-60-00 |
from US $9.09 |
||
|
14
|
14
90109-08448-00
Bolt
|
90109-08448-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
15
|
15
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
