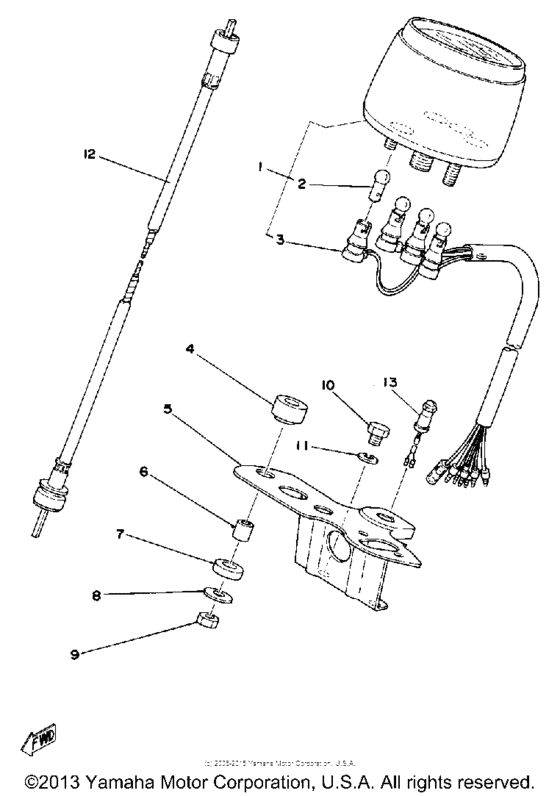

Speedometer Diagram Yamaha DT100
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T9-83510-60-00
Speedometer Assembly
|
1T9-83510-60-00 |
— | ||
|
1
|
1
1T9-83510-10-00
New Genuine Part
IN PRICE BOOK KM/H CANADA |
1T9-83510-10-00 |
— | ||
|
2
|
2
122-83516-10-00 Bulb, Mtr 6V1Cp Ba9S6V1CP BA9S |
122-83516-10-00 |
US $3.54 |
||
| replacement | |||||
|
2
|
2
122-83516-10-XX
Bulb
6V1CP BA9S |
122-83516-10-XX |
— | ||
|
3
|
3
1K8-83520-00-00
Socket Cord Assembly
|
1K8-83520-00-00 |
— | ||
|
4
|
4
1M3-83513-00-00
Damper
|
1M3-83513-00-00 |
— | ||
|
5
|
5
1T9-83519-00-98
Bracket, Meter
|
1T9-83519-00-98 |
— | ||
|
6
|
6
355-83522-00-00 Collar |
355-83522-00-00 |
US $9.79 |
||
|
7
|
7
355-83526-00-00 Damper 2 |
355-83526-00-00 |
from US $2.98 |
||
|
8
|
8
90201-06412-00 Washer, Plate |
90201-06412-00 |
from US $2.13 |
||
|
9
|
9
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
10
|
10
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
10
|
10
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
12
|
12
2A1-83550-10-00
Speedometer Cable
|
2A1-83550-10-00 |
— | ||
|
13
|
13
1T9-84101-60-00
Pilot Light Assembly
|
1T9-84101-60-00 |
— | ||
