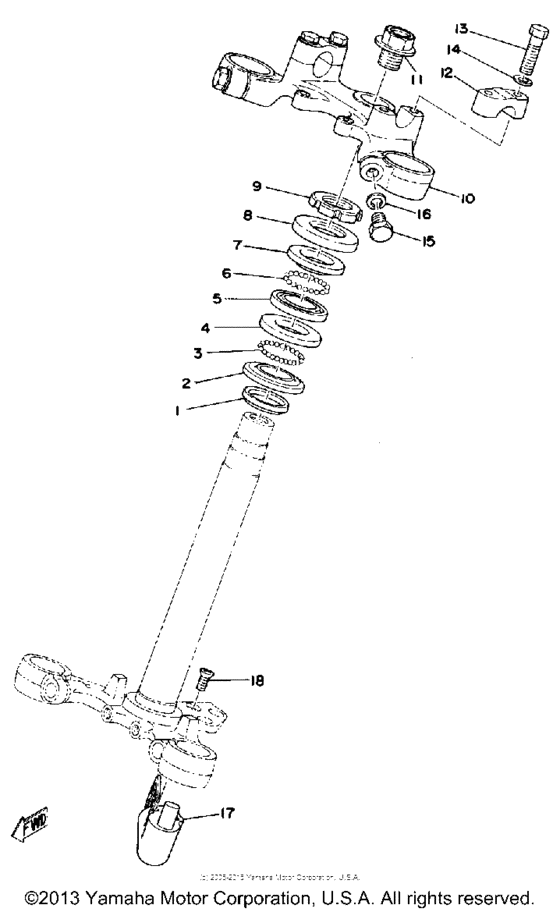

Steering Diagram Yamaha DT100
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.72 |
||
|
2
|
2
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
2
|
2
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
3
|
3
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
4
|
4
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
4
|
4
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
5
|
5
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
5
|
5
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
6
|
6
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
6
|
6
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
7
|
7
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
7
|
7
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
8
|
8
122-23416-00-00 Cover, Ball Race 2 |
122-23416-00-00 |
from US $2.69 |
||
|
9
|
9
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
9
|
9
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
9
|
9
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
10
|
10
354-23435-00-33
Crown, Handle
|
354-23435-00-33 |
— | ||
|
11
|
11
90105-14136-00 Bolt, Flange |
90105-14136-00 |
from US $2.77 |
||
| replacements | |||||
|
11
|
11
901-05142-20-00 Bolt, Flange |
901-05142-20-00 |
from US $3.68 |
||
|
11
|
11
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
12
|
12
401-23441-00-98
Holder, Handle Upper
|
401-23441-00-98 |
— | ||
|
13
|
13
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
13
|
13
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
13
|
13
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
13
|
13
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
14
|
14
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
15
|
15
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
15
|
15
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
15
|
15
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
15
|
15
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
17
|
17
353-23480-01-00 Steering Lock Assembly (266-234266-234 |
353-23480-01-00 |
US $66.91 |
||
| replacement | |||||
|
17
|
17
2N3-23408-00-00
Steering Lock Assembly (266-234
266-234 |
2N3-23408-00-00 |
— | ||
|
18
|
18
98780-05012-00 Screw, Flat Head |
98780-05012-00 |
from US $2.69 |
||
