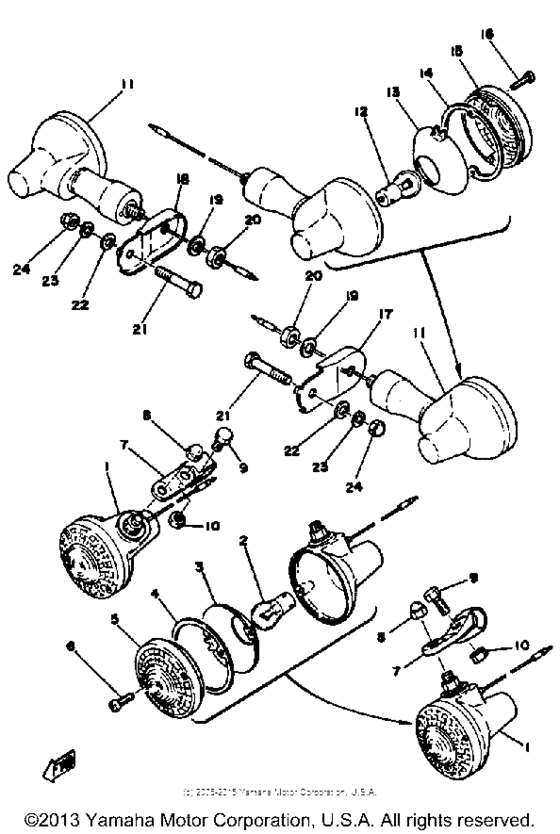

Flasher light Diagram Yamaha DT100
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1M1-83310-60-00
Front Flasher Light Assembly 1
|
1M1-83310-60-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
115-83311-60-00 Bulb 6V21Cp(1129)Bulb (6v/18w) 6V21CP1129 |
115-83311-60-00 |
from US $4.53 |
||
| replacement | |||||
|
2
|
2
115-83311-60-XX BULB 6V21CP(1129)6V21CP1129 |
115-83311-60-XX |
US $9.02 |
||
|
3
|
3
1M1-83309-60-00
Reflector
|
1M1-83309-60-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
1M1-83313-60-00
Gasket, Flasher Lens
|
1M1-83313-60-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
341-83312-70-00 Lens, Flasher |
341-83312-70-00 |
from US $7.76 |
||
|
6
|
6
97780-30120-00 Screw, Panhead Tap |
97780-30120-00 |
from US $1.84 |
||
|
7
|
7
2F5-83318-00-00 Stay, Flasher 1 |
2F5-83318-00-00 |
US $54.32 |
||
|
8
|
8
95303-08800-00 Nut (Crown) (93501-08800-00)93501-08800-00 |
95303-08800-00 |
from US $3.12 |
||
|
9
|
9
973-13080-20-00
Bolt (661)
661 |
973-13080-20-00 |
— | ||
| replacements | |||||
|
9
|
9
97080-08020-00 Bolt(6Td)661 |
97080-08020-00 |
from US $4.05 |
||
|
9
|
9
97013-08020-00 Bolt661 |
97013-08020-00 |
from US $1.64 |
||
|
10
|
10
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
10
|
10
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
11
|
11
1T9-83330-60-00 R Flshr Lite Assembly |
1T9-83330-60-00 |
from US $153.36 |
||
|
12
|
12
115-83311-60-00 Bulb 6V21Cp(1129)Bulb (6v/18w) 6V21CP1129 |
115-83311-60-00 |
from US $4.53 |
||
| replacement | |||||
|
12
|
12
115-83311-60-XX BULB 6V21CP(1129)6V21CP1129 |
115-83311-60-XX |
US $9.02 |
||
|
13
|
13
1M1-83309-60-00
Reflector
|
1M1-83309-60-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
1M1-83313-60-00
Gasket, Flasher Lens
|
1M1-83313-60-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
341-83312-70-00 Lens, Flasher |
341-83312-70-00 |
from US $7.76 |
||
|
16
|
16
97780-30120-00 Screw, Panhead Tap |
97780-30120-00 |
from US $1.84 |
||
|
17
|
17
1T9-83368-01-00
Stay, Flasher
|
1T9-83368-01-00 |
— | ||
|
18
|
18
1T9-83369-01-00
Stay, Flasher
|
1T9-83369-01-00 |
— | ||
|
19
|
19
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
20
|
20
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
21
|
21
97313-08040-00 Bolt, Hexagon |
97313-08040-00 |
US $5.29 |
||
| replacements | |||||
|
21
|
21
97014-08040-00 Bolt, Hexagon |
97014-08040-00 |
from US $2.35 |
||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
23
|
23
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
24
|
24
95303-08800-00 Nut (Crown) (93501-08800-00)93501-08800-00 |
95303-08800-00 |
from US $3.12 |
||
