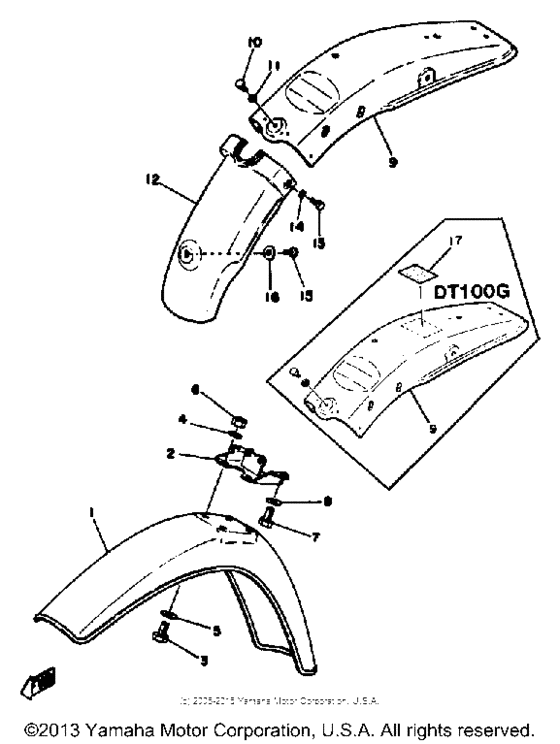

Front fender rear fender Diagram Yamaha DT100
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2E7-21511-00-00
Fender, Front
|
2E7-21511-00-00 |
— | ||
|
1
|
1
2M5-21511-00-00
Fender, Front
|
2M5-21511-00-00 |
— | ||
|
1
|
1
2M4-21511-00-00
Fender, Front
|
2M4-21511-00-00 |
— | ||
|
2
|
2
1T9-21513-00-00
Stay, Fender 1
|
1T9-21513-00-00 |
— | ||
|
3
|
3
97301-06014-00 Bolt, Hexagon |
97301-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
3
|
3
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
5
|
5
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
5
|
5
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
6
|
6
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
7
|
7
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
7
|
7
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
1T9-21611-00-66
Fender, Rear
|
1T9-21611-00-66 |
— | ||
|
9
|
9
1T9-21611-00-36
Fender, Rear
|
1T9-21611-00-36 |
— | ||
|
9
|
9
1T9-21611-00-V3
Fender, Rear
|
1T9-21611-00-V3 |
— | ||
|
10
|
10
97301-06014-00 Bolt, Hexagon |
97301-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
10
|
10
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
11
|
11
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
11
|
11
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
12
|
12
1T9-21621-00-00
Flap
|
1T9-21621-00-00 |
— | ||
|
13
|
13
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
13
|
13
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
14
|
14
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
14
|
14
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
15
|
15
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
15
|
15
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
16
|
16
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
16
|
16
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
17
|
17
3A3-21683-00-00
Plate, Spec
|
3A3-21683-00-00 |
— | ||
