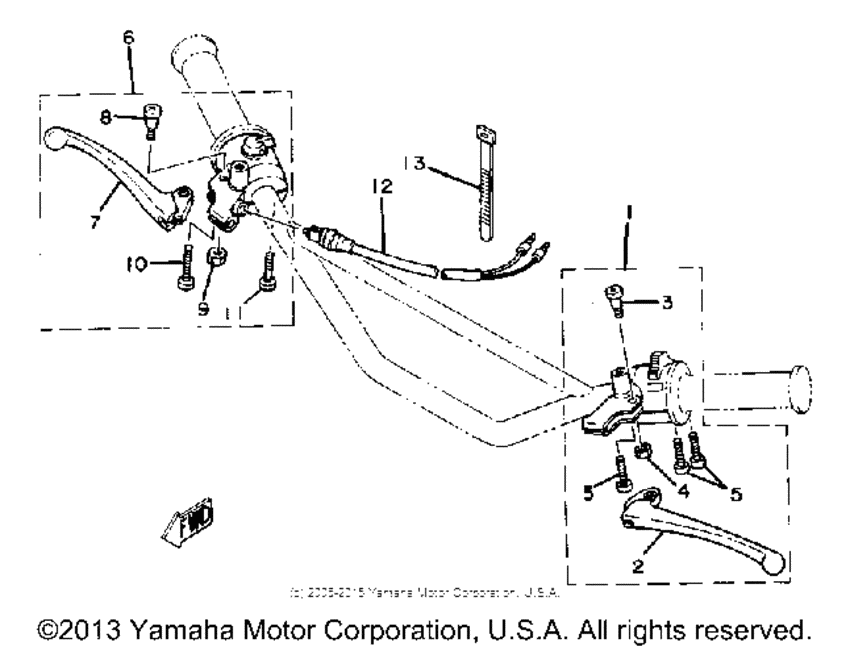

Handle switch & lever Diagram Yamaha DT100
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3A3-82910-00-00
Lever Holder Assembly 1
|
3A3-82910-00-00 |
— | ||
|
2
|
2
137-83912-02-38 Lever L |
137-83912-02-38 |
from US $28.71 |
||
|
3
|
3
90149-05120-00 Screw, Spec''l Shape |
90149-05120-00 |
from US $2.69 |
||
|
4
|
4
95601-05100-00 Nut, U |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
4
|
4
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
5
|
5
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
6
|
6
1T9-82920-X0-00
Lever Holder Assembly 2
|
1T9-82920-X0-00 |
— | ||
|
7
|
7
2N3-83922-00-00 Lever R |
2N3-83922-00-00 |
from US $23.09 |
||
|
8
|
8
90149-05120-00 Screw, Spec''l Shape |
90149-05120-00 |
from US $2.69 |
||
|
9
|
9
95601-05100-00 Nut, U |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
9
|
9
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
10
|
10
985-01050-30-00
Screw, Pan Head
|
985-01050-30-00 |
— | ||
| replacements | |||||
|
10
|
10
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
10
|
10
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
11
|
11
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
12
|
12
395-83980-00-00 Front Stop Switch AsAS |
395-83980-00-00 |
from US $34.31 |
||
| replacement | |||||
|
12
|
12
395-83980-09-00 Front Stop Switch AssyAS |
395-83980-09-00 |
from US $28.79 |
||
|
13
|
13
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
