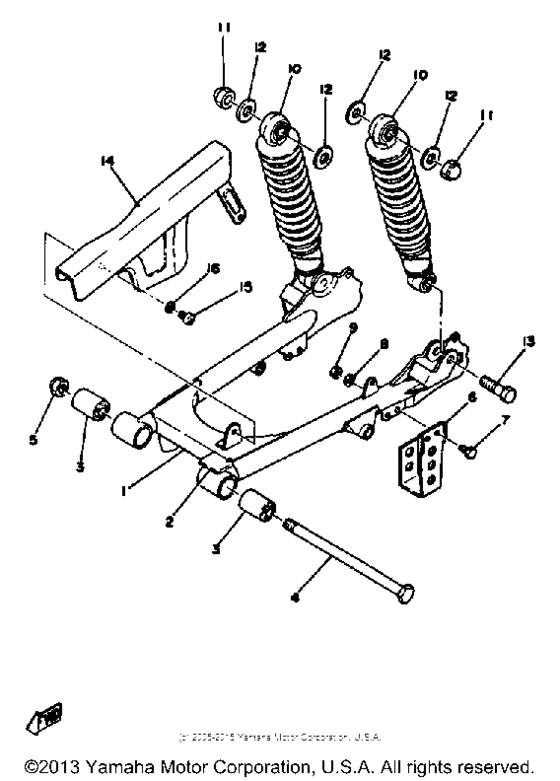

Rear arm rear cushion chain case Diagram Yamaha DT100
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T9-22110-01-33
Rear Arm
|
1T9-22110-01-33 |
— | ||
|
2
|
2
183-22151-00-00 Seal, Guard |
183-22151-00-00 |
from US $7.37 |
||
|
3
|
3
276-22123-00-00 Bush 1 |
276-22123-00-00 |
from US $16.86 |
||
|
4
|
4
401-22141-00-00 Axle, Wheel |
401-22141-00-00 |
US $46.46 |
||
| replacement | |||||
|
4
|
4
2J5-25381-01-00 Axle, Wheel |
2J5-25381-01-00 |
US $46.46 |
||
|
5
|
5
95712-12300-00 Nut, Nylon (79N) |
95712-12300-00 |
from US $3.54 |
||
| replacement | |||||
|
5
|
5
95717-12300-00 Nut, Flange |
95717-12300-00 |
from US $3.04 |
||
|
5
|
5
901-85120-67-00 Nut, Flange |
901-85120-67-00 |
from US $3.54 |
||
| replacement | |||||
|
5
|
5
95717-12300-00 Nut, Flange |
95717-12300-00 |
from US $3.04 |
||
|
6
|
6
492-22153-00-33
Guard, Chain
|
492-22153-00-33 |
— | ||
|
7
|
7
97301-06014-00 Bolt, Hexagon |
97301-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
7
|
7
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
10
|
10
1T9-22210-00-33
Shk/abs Assembly, Rear
|
1T9-22210-00-33 |
— | ||
| replacement | |||||
|
10
|
10
3UL-22210-00-33
TUBE,OUTER 1
|
3UL-22210-00-33 |
— | ||
|
11
|
11
95303-12800-00 Nut, Crown |
95303-12800-00 |
US $8.08 |
||
| replacement | |||||
|
11
|
11
95380-12800-00 Nut, Crown |
95380-12800-00 |
from US $4.04 |
||
|
12
|
12
90201-12190-00 Washer, Plate 1222224300 |
90201-12190-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90201-126A7-00 Washer, Plate (4N0) |
90201-126A7-00 |
from US $1.81 |
||
|
13
|
13
90101-10633-00 Bolt |
90101-10633-00 |
from US $1.28 |
||
| replacement | |||||
|
13
|
13
90101-10776-00 Bolt |
90101-10776-00 |
from US $1.28 |
||
|
14
|
14
1T9-22311-00-33
Case, Chain
|
1T9-22311-00-33 |
— | ||
|
15
|
15
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
15
|
15
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
16
|
16
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
