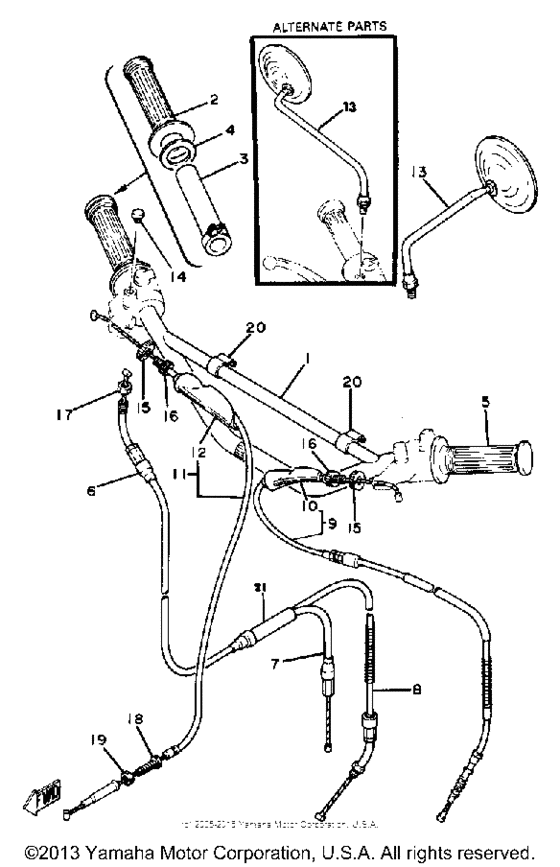

Handlebar cable Diagram Yamaha DT100
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T9-26111-01-00
Handlebar
|
1T9-26111-01-00 |
— | ||
| replacement | |||||
|
1
|
1
3M1-26111-01-00
Handlebar
|
3M1-26111-01-00 |
— | ||
|
2
|
2
1A0-26242-01-00 Grip Rh (R.h.)RH R.H. |
1A0-26242-01-00 |
from US $10.44 |
||
|
3
|
3
1V1-26243-00-00 Tube, Thrtl Guide |
1V1-26243-00-00 |
from US $17.10 |
||
|
4
|
4
90201-261L1-00 Washer, Plate (1V1-26249-00)1V1-26249-00 |
90201-261L1-00 |
from US $2.69 |
||
|
5
|
5
1E6-26241-00-00 Grip Lh (L.h.)LH L.H. |
1E6-26241-00-00 |
from US $12.46 |
||
|
6
|
6
2F5-26311-00-00
Cable, Throttle 1
|
2F5-26311-00-00 |
— | ||
|
7
|
7
1T9-26312-00-00
Cable, Throttle 2
|
1T9-26312-00-00 |
— | ||
|
8
|
8
1T9-26321-00-00 Cable, Pump |
1T9-26321-00-00 |
US $43.18 |
||
| replacement | |||||
|
8
|
8
1T9-26321-10-00 Cable, Pump |
1T9-26321-10-00 |
US $39.55 |
||
|
9
|
9
1T9-26335-00-00
Cable, clutch
|
1T9-26335-00-00 |
— | ||
|
10
|
10
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
10
|
10
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
11
|
11
3M1-26341-00-00 Cable, Brake |
3M1-26341-00-00 |
US $41.62 |
||
|
12
|
12
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
13
|
13
266-26290-10-00
3Mirror Assembly Lh
LH |
266-26290-10-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
LH |
999-99999-99-00 |
— | ||
|
13
|
13
395-26290-00-00
Mirror Assembly Rh
RH ALTERNATE PART |
395-26290-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
RH ALTERNATE PART |
999-99999-99-00 |
— | ||
|
14
|
14
90338-07011-00 Plug |
90338-07011-00 |
from US $2.13 |
||
| replacement | |||||
|
14
|
14
90338-07124-00 Plug |
90338-07124-00 |
from US $2.13 |
||
|
15
|
15
90179-08316-00 Nut |
90179-08316-00 |
from US $4.55 |
||
| replacements | |||||
|
15
|
15
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
15
|
15
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
16
|
16
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
16
|
16
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
17
|
17
901-70100-44-00
Nut, Hexagon
|
901-70100-44-00 |
— | ||
|
18
|
18
90123-06011-00 BoltBolt (109-26345-00) |
90123-06011-00 |
from US $8.08 |
||
|
19
|
19
90179-06143-00 Nut, Spec''l Shape |
90179-06143-00 |
from US $3.26 |
||
|
20
|
20
90468-15064-00 Clip |
90468-15064-00 |
from US $3.60 |
||
|
21
|
21
214-26261-00-00 Connector, Cable |
214-26261-00-00 |
from US $9.21 |
||
