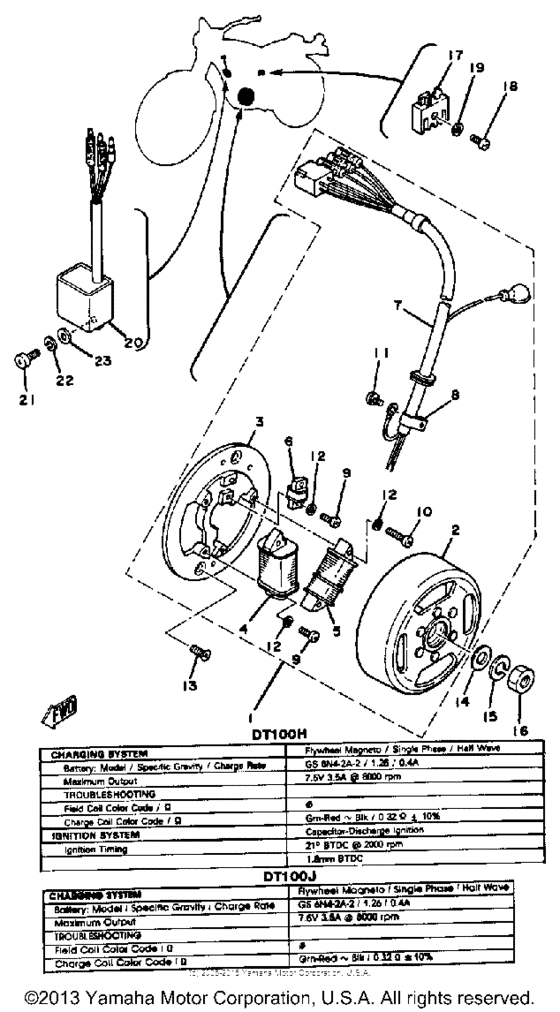

CDI & magneto Diagram Yamaha DT100
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3A3-85500-20-00
Cdi Magneto Assembly
|
3A3-85500-20-00 |
— | ||
|
2
|
2
3A3-85550-20-00
Rotor Assembly
|
3A3-85550-20-00 |
— | ||
|
3
|
3
3A3-85509-20-00
Base, Magneto
|
3A3-85509-20-00 |
— | ||
|
4
|
4
3A3-85512-20-00
Coil Source 2
|
3A3-85512-20-00 |
— | ||
|
5
|
5
3A3-85513-20-00
Coil, Lighting 1
|
3A3-85513-20-00 |
— | ||
|
6
|
6
3A3-85580-20-00
Coil, Pulser
|
3A3-85580-20-00 |
— | ||
|
7
|
7
3A3-85515-20-00
Lead Wire Assembly
|
3A3-85515-20-00 |
— | ||
|
8
|
8
104-81328-20-00 Clamp |
104-81328-20-00 |
from US $2.69 |
||
|
9
|
9
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
9
|
9
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
10
|
10
985-11040-25-00
Screw, Pan Head
|
985-11040-25-00 |
— | ||
| replacement | |||||
|
10
|
10
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
11
|
11
976-01041-06-00
Screw, Pan Head With Washer
|
976-01041-06-00 |
— | ||
| replacement | |||||
|
11
|
11
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
12
|
12
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
13
|
13
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
|
14
|
14
90201-12535-00 Washer, Plate |
90201-12535-00 |
from US $2.27 |
||
|
15
|
15
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
16
|
16
90170-12175-00 Nut |
90170-12175-00 |
from US $2.55 |
||
|
17
|
17
353-81970-63-00 Rectifier Assembly |
353-81970-63-00 |
from US $40.62 |
||
| replacements | |||||
|
17
|
17
353-81970-M0-00 Rectifier Assy |
353-81970-M0-00 |
from US $40.62 |
||
|
17
|
17
353-81970-M1-00 Rectifier Assy |
353-81970-M1-00 |
US $17.99 |
||
|
18
|
18
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
18
|
18
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
18
|
18
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
19
|
19
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
20
|
20
3A3-85540-20-00
Cdi Unit Assembly
|
3A3-85540-20-00 |
— | ||
|
21
|
21
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
21
|
21
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
23
|
23
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
