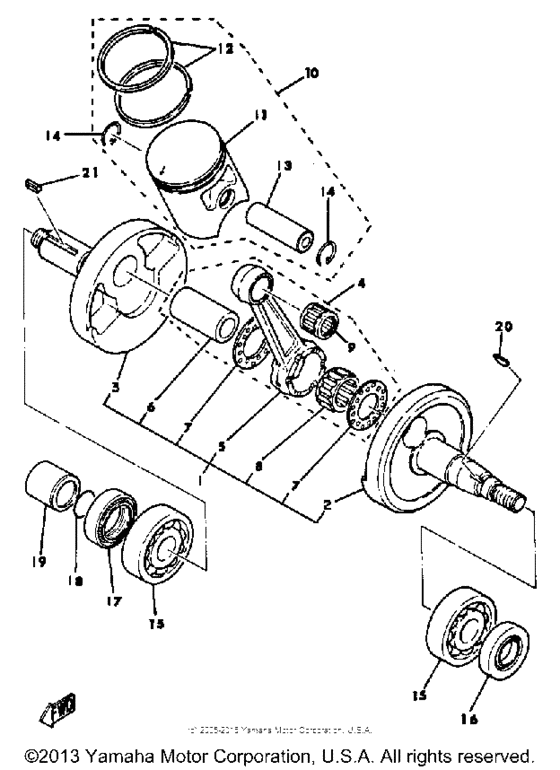

Crankshaft & Piston Diagram Yamaha DT100
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
558-11400-00-00
Crankshaft Assembly
|
558-11400-00-00 |
— | ||
|
2
|
2
558-11412-00-00 Crank 1 |
558-11412-00-00 |
from US $207.24 |
||
|
3
|
3
558-11422-00-00
Crank 2
|
558-11422-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
1M7-11650-00-00 Connecting Rod Assembly (558-558- |
1M7-11650-00-00 |
from US $197.75 |
||
|
5
|
5
1M7-11651-00-00 Rod, Connecting |
1M7-11651-00-00 |
from US $129.56 |
||
|
6
|
6
5E2-11681-00-00 Pin, Crank 1 |
5E2-11681-00-00 |
from US $34.94 |
||
|
7
|
7
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $4.38 |
||
|
8
|
8
93310-422E7-00 Bearing, Cyl. #10Bearing, cylindrical |
93310-422E7-00 |
from US $11.76 |
||
|
9
|
9
93310-21403-00 Bearing |
93310-21403-00 |
from US $7.36 |
||
|
10
|
10
3A3-11630-00-00
Piston Kit Std
|
3A3-11630-00-00 |
— | ||
|
10
|
10
3A3-11630-10-00
Piston Kit 1St
1ST ALT. PART |
3A3-11630-10-00 |
— | ||
|
10
|
10
3A3-11630-20-00
Piston Kit 2Nd
2ND ALT. PART |
3A3-11630-20-00 |
— | ||
|
10
|
10
3A3-11630-30-00
Piston Kit 3Rd
3RD ALT. PART |
3A3-11630-30-00 |
— | ||
|
10
|
10
3A3-11630-40-00
Piston Kit 4Th
4TH ALT. PART |
3A3-11630-40-00 |
— | ||
|
11
|
11
3A3-11631-00-96
Piston Std
|
3A3-11631-00-96 |
— | ||
|
11
|
11
3A3-11635-00-00
Piston 1 O/s 0.25
O/S 0.25 ALT. PART |
3A3-11635-00-00 |
— | ||
| replacement | |||||
|
11
|
11
3UL-11635-00-00 Piston (0.25Mm O/s)Piston (0.25mm o/s) O/S 0.25 ALT. PART |
3UL-11635-00-00 |
US $68.63 |
||
|
11
|
11
3A3-11636-00-00
Piston 2 O/s 0.50
O/S 0.50 ALT. PART |
3A3-11636-00-00 |
— | ||
| replacement | |||||
|
11
|
11
3UL-11636-00-00 Piston (0.50Mm O/s)Piston (0.50mm o/s) O/S 0.50 ALT. PART |
3UL-11636-00-00 |
US $80.68 |
||
|
11
|
11
3A3-11637-00-00
Piston 3 O/s 0.75
O/S 0.75 ALT. PART |
3A3-11637-00-00 |
— | ||
| replacement | |||||
|
11
|
11
3UL-11637-00-00 Piston (0.75Mm O/s)Piston (0.75mm o/s) O/S 0.75 ALT. PART |
3UL-11637-00-00 |
US $145.60 |
||
|
11
|
11
3A3-11638-00-00
Piston 4 O/s 1.00
O/S 1.00 ALT. PART |
3A3-11638-00-00 |
— | ||
| replacement | |||||
|
11
|
11
3UL-11638-00-00 Piston (1.00Mm O/s)Piston (1.00mm o/s) O/S 1.00 ALT. PART |
3UL-11638-00-00 |
US $102.28 |
||
|
12
|
12
3A3-11610-00-00 Piston Ring Set |
3A3-11610-00-00 |
US $69.91 |
||
|
12
|
12
3A3-11610-10-00 Piston Ring Set0.25MM O/S ALT. PART |
3A3-11610-10-00 |
US $43.02 |
||
|
12
|
12
3A3-11610-20-00
Piston Ring Set
0.50MM O/S ALT. PART |
3A3-11610-20-00 |
— | ||
|
12
|
12
3A3-11610-30-00
Piston Ring Set
0.75MM O/S |
3A3-11610-30-00 |
— | ||
|
12
|
12
3A3-11610-40-00
Piston Ring Set
1.00MM O/S ALT. PART |
3A3-11610-40-00 |
— | ||
|
13
|
13
131-11633-00-00 Pin, Piston |
131-11633-00-00 |
from US $15.58 |
||
|
14
|
14
93450-15023-00 Circlip |
93450-15023-00 |
from US $1.70 |
||
|
15
|
15
93306-30421-00 Bearing |
93306-30421-00 |
from US $31.91 |
||
| replacement | |||||
|
15
|
15
933-06304-42-00 Bearing |
933-06304-42-00 |
from US $25.80 |
||
|
16
|
16
931-02204-47-00 Oil Seal |
931-02204-47-00 |
from US $4.72 |
||
|
17
|
17
93103-28011-00 Oil Seal, Sw-Type (93103-28100)93103-28100 |
93103-28011-00 |
from US $7.49 |
||
|
18
|
18
93210-180A6-00 O-Ring |
93210-180A6-00 |
from US $2.02 |
||
|
19
|
19
90387-20175-00 Collar |
90387-20175-00 |
from US $8.78 |
||
|
20
|
20
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
21
|
21
90282-05005-00 Key, Straight |
90282-05005-00 |
from US $1.70 |
||
