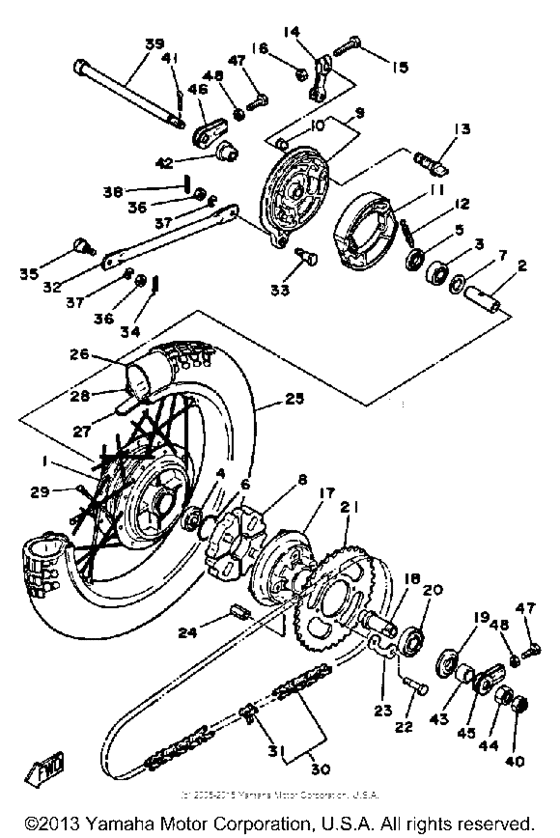

Rear wheel Diagram Yamaha DT100
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
999-99022-13-00 Hub, RearLW GLOSS BK |
999-99022-13-00 |
US $271.42 |
||
|
2
|
2
90560-12145-00 Spacer |
90560-12145-00 |
from US $8.22 |
||
|
3
|
3
93306-30103-00 Bearing |
93306-30103-00 |
from US $12.75 |
||
| replacement | |||||
|
3
|
3
933-06301-02-00 Bearing |
933-06301-02-00 |
from US $12.75 |
||
|
4
|
4
93306-30101-00 Bearing |
93306-30101-00 |
from US $9.57 |
||
|
5
|
5
93104-21016-00 Oil Seal, Sd-Type |
93104-21016-00 |
from US $9.35 |
||
|
6
|
6
93210-41041-00 O-Ring |
93210-41041-00 |
from US $1.81 |
||
|
7
|
7
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
8
|
8
304-25364-01-00 Damper, Clutch |
304-25364-01-00 |
from US $5.40 |
||
|
9
|
9
355-25026-00-98
Brake Shoe Plt Assembly
LW GLOSS BK |
355-25026-00-98 |
— | ||
|
10
|
10
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
11
|
11
5H0-W2536-00-00 Brake Shoe Kit |
5H0-W2536-00-00 |
US $23.56 |
||
| replacements | |||||
|
11
|
11
4BE-W253E-00-00 Brake Shoe Kit |
4BE-W253E-00-00 |
from US $27.27 |
||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
10X-W2536-00-00 Brake Shoe Kit |
10X-W2536-00-00 |
from US $21.24 |
||
| replacement | |||||
|
11
|
11
2JL-W253E-20-00 Brake Shoe KitJuego de zapata de freno |
2JL-W253E-20-00 |
from US $24.98 |
||
|
12
|
12
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
12
|
12
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
13
|
13
3Y6-25351-00-00 Camshaft |
3Y6-25351-00-00 |
from US $27.77 |
||
| replacement | |||||
|
13
|
13
4GL-25351-00-00 Camshaft |
4GL-25351-00-00 |
from US $27.77 |
||
|
14
|
14
1T9-25355-00-00 Lever, Camshaft |
1T9-25355-00-00 |
from US $11.97 |
||
| replacement | |||||
|
14
|
14
5DV-25355-00-00
Lever, Camshaft
|
5DV-25355-00-00 |
— | ||
|
15
|
15
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
16
|
16
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
17
|
17
296-25366-01-98 Clutch, HubLW GLOSS BK |
296-25366-01-98 |
from US $51.88 |
||
| replacement | |||||
|
17
|
17
296-25366-01-33 Clutch, HubLW GLOSS BK |
296-25366-01-33 |
from US $74.86 |
||
|
18
|
18
167-25387-00-00 Axle, Sprocket |
167-25387-00-00 |
from US $36.61 |
||
|
19
|
19
93106-30004-00 Oil Seal |
93106-30004-00 |
from US $7.21 |
||
|
20
|
20
93306-00406-00 Bearing |
93306-00406-00 |
from US $15.44 |
||
| replacement | |||||
|
20
|
20
93306-00438-00 Bearing |
93306-00438-00 |
from US $14.48 |
||
|
21
|
21
283-25445-10-00
Sprocket, Drvn 45T
45T YAMAHA BLK |
283-25445-10-00 |
— | ||
| replacement | |||||
|
21
|
21
283-25445-11-00
element
45T YAMAHA BLK |
283-25445-11-00 |
— | ||
|
22
|
22
90109-08361-00 Bolt |
90109-08361-00 |
from US $6.52 |
||
|
23
|
23
102-25412-00-00 Washer, Lock |
102-25412-00-00 |
from US $2.55 |
||
| replacements | |||||
|
23
|
23
4AW-25412-00-00 Washer |
4AW-25412-00-00 |
from US $2.55 |
||
|
23
|
23
3M5-25412-00-00 Washer, Lock |
3M5-25412-00-00 |
from US $4.39 |
||
|
24
|
24
90179-08639-00 Nut, Spec''l Shape (30)30 |
90179-08639-00 |
from US $1.81 |
||
|
25
|
25
94130-16368-00
Tire (3.00-16)
3.00-16 |
94130-16368-00 |
— | ||
| replacement | |||||
|
25
|
25
94130-16571-00
Tire
3.00-16 |
94130-16571-00 |
— | ||
|
26
|
26
942-30106-75-00
New Genuine Part
IN PRICE BOOK INOUE |
942-30106-75-00 |
— | ||
|
27
|
27
94330-16058-00 Band, Rim (1.60-16)1.60-16 INOUE |
94330-16058-00 |
from US $4.25 |
||
|
28
|
28
94416-16008-00
Rim (1.60-16)
|
94416-16008-00 |
— | ||
| replacement | |||||
|
28
|
28
944-16160-02-00 Rim |
944-16160-02-00 |
US $86.63 |
||
|
29
|
29
538-25304-10-00 Spoke Set |
538-25304-10-00 |
from US $86.63 |
||
|
30
|
30
945-00031-02-00 Chain, Drive |
945-00031-02-00 |
from US $22.24 |
||
| replacement | |||||
|
30
|
30
9Y580-52101-00 Chain |
9Y580-52101-00 |
from US $21.77 |
||
|
31
|
31
94600-03001-00
Joint, Chain
|
94600-03001-00 |
— | ||
|
32
|
32
1T9-25371-00-00 Bar, Tension |
1T9-25371-00-00 |
US $31.97 |
||
|
33
|
33
90109-08183-00 Bolt |
90109-08183-00 |
from US $5.67 |
||
| replacement | |||||
|
33
|
33
90109-08816-00 Bolt |
90109-08816-00 |
US $2.55 |
||
|
34
|
34
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
35
|
35
90109-08368-00 Bolt |
90109-08368-00 |
from US $5.67 |
||
|
36
|
36
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
36
|
36
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
37
|
37
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
38
|
38
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
38
|
38
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
39
|
39
390-25381-01-00
Axle, Wheel
|
390-25381-01-00 |
— | ||
|
40
|
40
90171-10004-00 Nut, Castle |
90171-10004-00 |
from US $2.45 |
||
| replacement | |||||
|
40
|
40
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $2.02 |
||
|
41
|
41
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
41
|
41
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
42
|
42
90387-12102-00 Collar |
90387-12102-00 |
from US $11.33 |
||
|
43
|
43
90387-18144-00 Collar |
90387-18144-00 |
from US $12.33 |
||
|
44
|
44
90170-18165-00 Nut |
90170-18165-00 |
from US $7.65 |
||
|
45
|
45
241-25388-00-00 Puller, Chain 1 |
241-25388-00-00 |
from US $33.15 |
||
|
46
|
46
241-25389-10-00 Puller, Chain 2 |
241-25389-10-00 |
from US $33.15 |
||
|
47
|
47
90101-06016-00 Bolt |
90101-06016-00 |
from US $7.37 |
||
|
48
|
48
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
