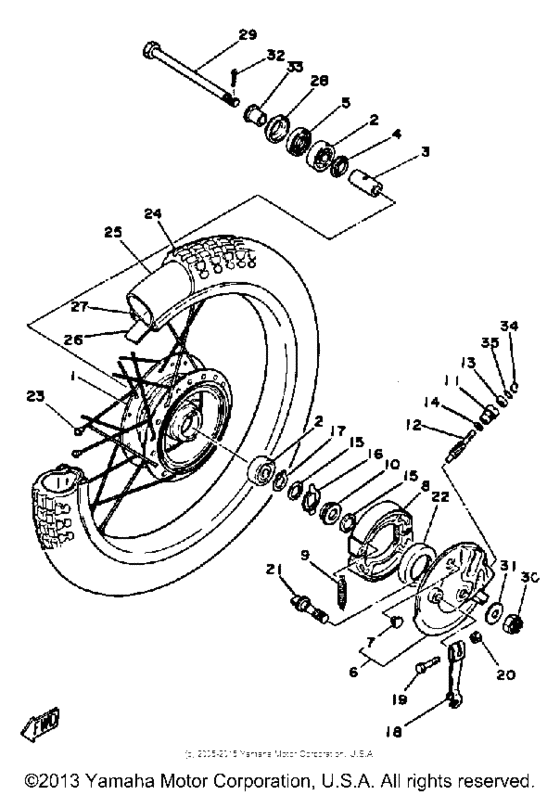

Front wheel Diagram Yamaha DT100
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
248-25111-00-98 Hub, FrontLW GLOSS BK |
248-25111-00-98 |
from US $144.70 |
||
|
2
|
2
93306-30103-00 Bearing |
93306-30103-00 |
from US $12.75 |
||
| replacement | |||||
|
2
|
2
933-06301-02-00 Bearing |
933-06301-02-00 |
from US $12.75 |
||
|
3
|
3
90560-12261-00 Spacer |
90560-12261-00 |
from US $4.96 |
||
| replacement | |||||
|
3
|
3
90560-12138-00 Spacer |
90560-12138-00 |
from US $4.96 |
||
|
4
|
4
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
5
|
5
93102-18008-00 Oil Seal |
93102-18008-00 |
from US $7.23 |
||
|
6
|
6
1T9-25016-01-98
Brake Shoe Plt Assembly
LW GLOSS BK |
1T9-25016-01-98 |
— | ||
|
7
|
7
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.81 |
||
|
8
|
8
5H0-W2536-00-00 Brake Shoe Kit |
5H0-W2536-00-00 |
US $23.56 |
||
| replacements | |||||
|
8
|
8
4BE-W253E-00-00 Brake Shoe Kit |
4BE-W253E-00-00 |
from US $27.27 |
||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
10X-W2536-00-00 Brake Shoe Kit |
10X-W2536-00-00 |
from US $21.24 |
||
| replacement | |||||
|
8
|
8
2JL-W253E-20-00 Brake Shoe KitJuego de zapata de freno |
2JL-W253E-20-00 |
from US $24.98 |
||
|
9
|
9
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
9
|
9
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
10
|
10
1T9-25135-00-00
Gear, Drive
|
1T9-25135-00-00 |
— | ||
|
11
|
11
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
12
|
12
1T9-25138-00-00
Gear, Meter
|
1T9-25138-00-00 |
— | ||
|
13
|
13
93104-07003-00 Oil Seal, So-Type |
93104-07003-00 |
from US $1.84 |
||
|
14
|
14
90201-07076-00 Washer, Plate |
90201-07076-00 |
from US $1.70 |
||
|
15
|
15
90201-20269-00 Washer, Plate |
90201-20269-00 |
from US $1.70 |
||
|
16
|
16
183-25149-00-00 Clutch, Meter |
183-25149-00-00 |
from US $2.98 |
||
|
17
|
17
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
18
|
18
5H0-25155-00-00 Lever, Camshaft 1 |
5H0-25155-00-00 |
from US $14.22 |
||
|
19
|
19
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
20
|
20
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
21
|
21
3Y6-25351-00-00 Camshaft |
3Y6-25351-00-00 |
from US $27.77 |
||
| replacement | |||||
|
21
|
21
4GL-25351-00-00 Camshaft |
4GL-25351-00-00 |
from US $27.77 |
||
|
22
|
22
93105-47007-00 Oil Seal |
93105-47007-00 |
from US $6.06 |
||
|
23
|
23
276-25104-40-00
Spoke Set
|
276-25104-40-00 |
— | ||
|
24
|
24
94125-18369-00 Tire (2.50-18)Tire 2.50-18 |
94125-18369-00 |
US $113.89 |
||
|
25
|
25
94225-18194-00 Tube2.50-18 |
94225-18194-00 |
US $38.75 |
||
|
26
|
26
94325-18059-00 Band, Rim |
94325-18059-00 |
US $4.39 |
||
|
27
|
27
944-14180-07-00
Rim (1.40-18)
1.40-18 |
944-14180-07-00 |
— | ||
| replacement | |||||
|
27
|
27
944-14185-45-00 Rim (1.40-18), Union Cycle1.40-18 |
944-14185-45-00 |
from US $89.94 |
||
|
28
|
28
481-25118-01-00 Cover, Hub Dust |
481-25118-01-00 |
from US $6.23 |
||
|
29
|
29
901-02120-15-00 Bolt, With Hole |
901-02120-15-00 |
from US $17.42 |
||
|
30
|
30
95301-12900-00 Nut, Castle |
95301-12900-00 |
US $3.37 |
||
| replacement | |||||
|
30
|
30
90171-12058-00 Nut, Castle |
90171-12058-00 |
US $3.37 |
||
|
31
|
31
90201-122A7-00 Washer, Plate (4L0) |
90201-122A7-00 |
from US $1.84 |
||
| replacements | |||||
|
31
|
31
90201-12047-00 Washer, Plate |
90201-12047-00 |
from US $1.84 |
||
|
31
|
31
90201-12749-00 Washer, Plate |
90201-12749-00 |
from US $1.84 |
||
|
32
|
32
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
32
|
32
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
33
|
33
90387-12616-00 Collar |
90387-12616-00 |
from US $8.38 |
||
|
34
|
34
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
35
|
35
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
35
|
35
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.39 |
||
