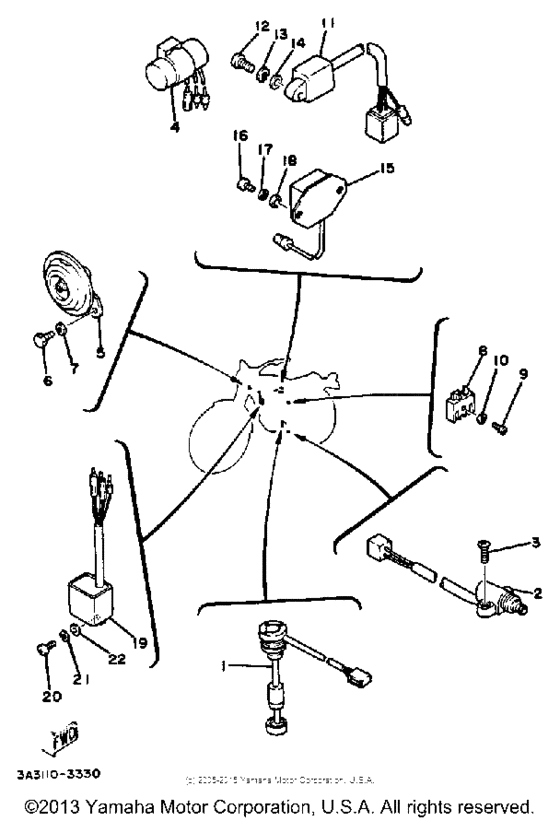

Electrical Diagram Yamaha DT100
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T9-85720-01-00
Oil Lvl Gauge Assembly
|
1T9-85720-01-00 |
— | ||
|
2
|
2
3A3-82566-10-00
Switch, Side Stand
|
3A3-82566-10-00 |
— | ||
|
3
|
3
987-06050-16-00
Screw, Flat Head
|
987-06050-16-00 |
— | ||
| replacement | |||||
|
3
|
3
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
4
|
4
542-83350-60-00
Flasher Relay Assembly
|
542-83350-60-00 |
— | ||
|
5
|
5
2A7-83371-10-00
Horn
|
2A7-83371-10-00 |
— | ||
|
6
|
6
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
6
|
6
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
8
|
8
353-81970-63-00 Rectifier Assembly |
353-81970-63-00 |
from US $40.62 |
||
| replacements | |||||
|
8
|
8
353-81970-M0-00 Rectifier Assy |
353-81970-M0-00 |
from US $40.62 |
||
|
8
|
8
353-81970-M1-00 Rectifier Assy |
353-81970-M1-00 |
US $17.99 |
||
|
9
|
9
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
9
|
9
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
9
|
9
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
10
|
10
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
11
|
11
3A3-85540-20-00
Cdi Unit Assembly
|
3A3-85540-20-00 |
— | ||
|
12
|
12
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
12
|
12
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
15
|
15
443-81910-62-00
Voltage Reg Assembly (498-81910
498-81910 |
443-81910-62-00 |
— | ||
|
16
|
16
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
16
|
16
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
19
|
19
4Y3-85590-M0-00
Control Unit Assembly
|
4Y3-85590-M0-00 |
— | ||
|
20
|
20
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
22
|
22
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
