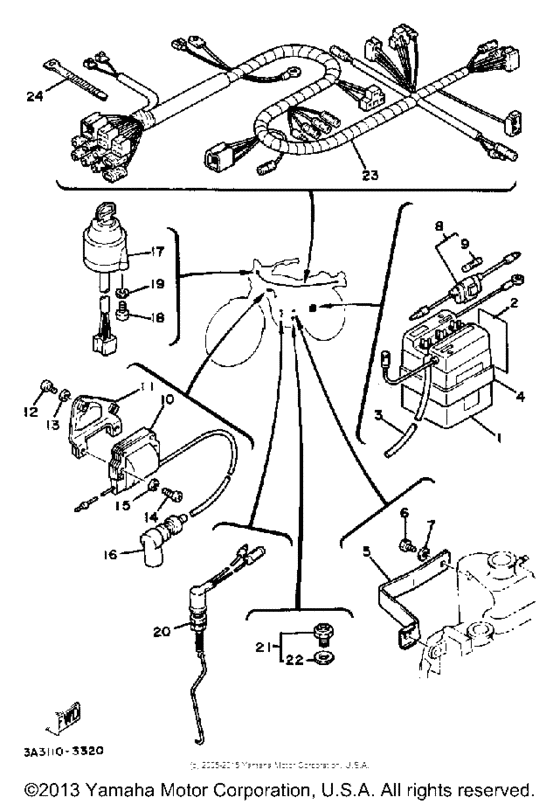

Electrical Diagram Yamaha DT100
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 100
- Model
- DT100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BTG-6N42A-20-00
6N4-2A-2 Gs Battery
GS BATTERY |
BTG-6N42A-20-00 |
— | ||
| replacement | |||||
|
1
|
1
6N4-2A200-00-00
Bat 6N4-2A-2 Gs
GS BATTERY |
6N4-2A200-00-00 |
— | ||
|
2
|
2
118-82141-09-00
Label, Battery
|
118-82141-09-00 |
— | ||
| replacements | |||||
|
2
|
2
40A-82141-G0-00
Label, Battery
|
40A-82141-G0-00 |
— | ||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
90445-08172-00 Hose (L450) |
90445-08172-00 |
US $10.91 |
||
| replacement | |||||
|
3
|
3
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
4
|
4
214-82124-00-00 Band, Battery |
214-82124-00-00 |
US $9.23 |
||
|
5
|
5
1T9-82136-00-00
Plate, Batt Fitting
|
1T9-82136-00-00 |
— | ||
|
6
|
6
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
6
|
6
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
8
|
8
55K-82150-01-00 Fuse H0Lder Assy |
55K-82150-01-00 |
from US $11.33 |
||
| replacement | |||||
|
8
|
8
55K-82150-02-00 FUSE HOLDER ASSY |
55K-82150-02-00 |
from US $11.55 |
||
|
9
|
9
116-82151-00-00
Fuse (12V-10A)
12V-10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
9
|
9
1A0-82151-00-00 Fuse (12V-10A)12V-10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
10
|
10
5G4-82310-40-00 Ignition Coil Assembly |
5G4-82310-40-00 |
from US $163.03 |
||
| replacement | |||||
|
10
|
10
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
11
|
11
336-82316-01-00
Bracket, Ignition Coil
|
336-82316-01-00 |
— | ||
|
12
|
12
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
14
|
14
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
16
|
16
81E-82370-20-00 Plug Cap Assembly |
81E-82370-20-00 |
from US $28.34 |
||
| replacement | |||||
|
16
|
16
8DG-82370-00-00 Plug Cap Assy |
8DG-82370-00-00 |
from US $28.34 |
||
|
16
|
16
8E7-82370-11-00 Plug Cap AssemblyPlug cap assy with noise suppressor |
8E7-82370-11-00 |
from US $44.80 |
||
| replacement | |||||
|
16
|
16
7KA-82370-00-00 Plug Cap Assy |
7KA-82370-00-00 |
from US $52.92 |
||
|
17
|
17
1FE-82510-00-00 Main Switch Assy |
1FE-82510-00-00 |
from US $77.24 |
||
| replacements | |||||
|
17
|
17
53C-82510-00-00 MAIN SWITCH ASSY |
53C-82510-00-00 |
from US $63.95 |
||
|
17
|
17
53C-82510-01-00 Main Switch Assy |
53C-82510-01-00 |
US $70.74 |
||
|
18
|
18
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
19
|
19
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
20
|
20
2F5-82530-02-00
Stop Switch Assembly
|
2F5-82530-02-00 |
— | ||
|
21
|
21
136-82540-00-00 Reverse Switch Assembly |
136-82540-00-00 |
from US $18.84 |
||
| replacement | |||||
|
21
|
21
136-82540-03-00 Reverse Switch Assembly |
136-82540-03-00 |
from US $18.84 |
||
|
22
|
22
37R-82543-00-00 Washer, Plate |
37R-82543-00-00 |
from US $1.28 |
||
| replacement | |||||
|
22
|
22
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
23
|
23
3A3-82590-51-00
Wire Harness Assembly
|
3A3-82590-51-00 |
— | ||
|
24
|
24
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
