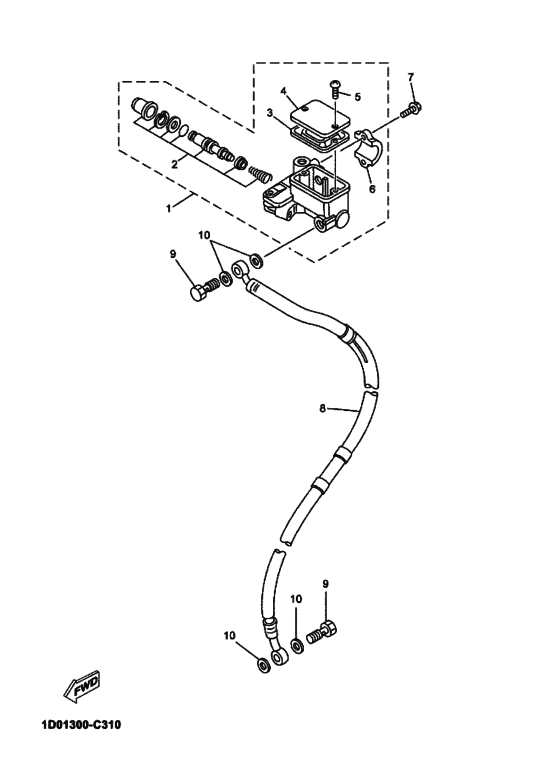

Front master cylinder Diagram Yamaha DT125 DT125R
- Year
- 2004
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 1D01
- Sales region
- Europe (040)
- Engine Capacity
- 125
- Color Variant
- B
- Model
- DT125R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1D0-F583T-00-00
Master Cylinder Assy
|
1D0-F583T-00-00 |
— | ||
|
2
|
2
5XT-W0041-00-00 Cylinder Kit, Master |
5XT-W0041-00-00 |
from US $30.60 |
||
|
3
|
3
55U-25854-00-00 Gasket, Diaphragm |
55U-25854-00-00 |
from US $11.66 |
||
|
4
|
4
3GM-25852-22-00 Cap, Reservoir |
3GM-25852-22-00 |
from US $24.28 |
||
|
5
|
5
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
5
|
5
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
6
|
6
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
7
|
7
9502M-06025-00 Bolt, Flange |
9502M-06025-00 |
from US $1.42 |
||
| replacements | |||||
|
7
|
7
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
7
|
7
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
|
8
|
8
1D0-F5872-00-00
Hose, Brake 1
|
1D0-F5872-00-00 |
— | ||
|
9
|
9
90401-10X04-00
Bolt, Union
|
90401-10X04-00 |
— | ||
|
10
|
10
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
10
|
10
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
