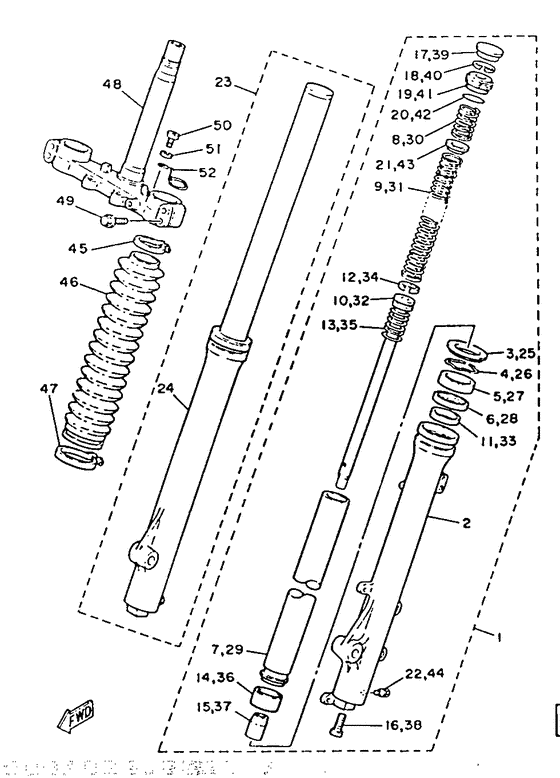

Front fork Diagram Yamaha DT125 DT125
- Year
- 1987
- Colour
- White (WW; 0036)
- Model code
- 2AJ
- Sales region
- Spain (999)
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2AJ-F3102-00-00
Front fork assy (l.h)
|
2AJ-F3102-00-00 |
— | ||
|
02
|
02
2AJ-23126-00-00
Tube, outer (left)
|
2AJ-23126-00-00 |
— | ||
|
03
|
03
2AJ-23144-00-00
Seal, dust
|
2AJ-23144-00-00 |
— | ||
|
04
|
04
2AJ-23156-00-00
Clip, oil seal
|
2AJ-23156-00-00 |
— | ||
|
05
|
05
1KH-23145-00-00 Oil Seal |
1KH-23145-00-00 |
from US $14.17 |
||
|
06
|
06
2AJ-23147-00-00
O-ring espaciador
|
2AJ-23147-00-00 |
— | ||
|
07
|
07
2AJ-23110-00-00
Inner Tube Comp.1
|
2AJ-23110-00-00 |
— | ||
|
08
|
08
2AJ-23351-00-00
Spring
|
2AJ-23351-00-00 |
— | ||
|
09
|
09
2AJ-23141-00-00
Spring, front fork
|
2AJ-23141-00-00 |
— | ||
|
10
|
10
2AJ-23171-00-00
Piston, Front Fork
|
2AJ-23171-00-00 |
— | ||
|
11
|
11
2AJ-23125-00-00
Metal, Slide 1
|
2AJ-23125-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
2AJ-23157-00-00
Ring, piston
|
2AJ-23157-00-00 |
— | ||
|
13
|
13
2AJ-23151-00-00
Spring, rebound
|
2AJ-23151-00-00 |
— | ||
|
14
|
14
2AJ-23135-00-00
Metal, Slide 2
|
2AJ-23135-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
2AJ-23166-00-00
Spacer, oil lock
|
2AJ-23166-00-00 |
— | ||
|
16
|
16
2AJ-23181-00-00
Bolt, hexagon socket head
|
2AJ-23181-00-00 |
— | ||
|
17
|
17
2AJ-23168-00-00
Cap, front fork
|
2AJ-23168-00-00 |
— | ||
|
18
|
18
2AJ-23183-00-00
Circlip
|
2AJ-23183-00-00 |
— | ||
|
19
|
19
2AJ-23111-00-00
Bolt, cap
|
2AJ-23111-00-00 |
— | ||
|
20
|
20
2AJ-23114-00-00
Gasket
|
2AJ-23114-00-00 |
— | ||
|
21
|
21
2AJ-23142-00-00
Seat, spring upper
|
2AJ-23142-00-00 |
— | ||
|
22
|
22
2AJ-23119-00-00
Plug, drain
|
2AJ-23119-00-00 |
— | ||
|
23
|
23
2AJ-F3102-00-00
Front fork assy (l.h)
|
2AJ-F3102-00-00 |
— | ||
|
24
|
24
2AJ-23136-00-38
Tube, Outer (Right)
|
2AJ-23136-00-38 |
— | ||
|
25
|
25
2AJ-23144-00-00
Seal, dust
|
2AJ-23144-00-00 |
— | ||
|
26
|
26
2AJ-23156-00-00
Clip, oil seal
|
2AJ-23156-00-00 |
— | ||
|
27
|
27
1KH-23145-00-00 Oil Seal |
1KH-23145-00-00 |
from US $14.17 |
||
|
28
|
28
2AJ-23147-00-00
O-ring espaciador
|
2AJ-23147-00-00 |
— | ||
|
29
|
29
2AJ-23110-00-00
Inner Tube Comp.1
|
2AJ-23110-00-00 |
— | ||
|
30
|
30
2AJ-23351-00-00
Spring
|
2AJ-23351-00-00 |
— | ||
|
31
|
31
2AJ-23141-00-00
Spring, front fork
|
2AJ-23141-00-00 |
— | ||
|
32
|
32
2AJ-23171-00-00
Piston, Front Fork
|
2AJ-23171-00-00 |
— | ||
|
33
|
33
2AJ-23125-00-00
Metal, Slide 1
|
2AJ-23125-00-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
34
|
34
2AJ-23157-00-00
Ring, piston
|
2AJ-23157-00-00 |
— | ||
|
35
|
35
2AJ-23151-00-00
Spring, rebound
|
2AJ-23151-00-00 |
— | ||
|
36
|
36
2AJ-23135-00-00
Metal, Slide 2
|
2AJ-23135-00-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
37
|
37
2AJ-23166-00-00
Spacer, oil lock
|
2AJ-23166-00-00 |
— | ||
|
38
|
38
2AJ-23181-00-00
Bolt, hexagon socket head
|
2AJ-23181-00-00 |
— | ||
|
39
|
39
2AJ-23168-00-00
Cap, front fork
|
2AJ-23168-00-00 |
— | ||
|
40
|
40
2AJ-23183-00-00
Circlip
|
2AJ-23183-00-00 |
— | ||
|
41
|
41
2AJ-23111-00-00
Bolt, cap
|
2AJ-23111-00-00 |
— | ||
|
42
|
42
2AJ-23114-00-00
Gasket
|
2AJ-23114-00-00 |
— | ||
|
43
|
43
2AJ-23142-00-00
Seat, spring upper
|
2AJ-23142-00-00 |
— | ||
|
44
|
44
2AJ-23119-00-00
Plug, drain
|
2AJ-23119-00-00 |
— | ||
|
45
|
45
34X-23192-00-00 Band |
34X-23192-00-00 |
from US $17.71 |
||
|
46
|
46
34X-23191-00-00
Boot
Rojo |
34X-23191-00-00 |
— | ||
|
47
|
47
34X-2311E-00-00 BandRojo |
34X-2311E-00-00 |
from US $5.81 |
||
| replacement | |||||
|
47
|
47
3RW-23192-00-00 BandRojo |
3RW-23192-00-00 |
from US $5.81 |
||
|
48
|
48
34Y-23340-00-90
Under Bracket Comp
Negro |
34Y-23340-00-90 |
— | ||
| replacement | |||||
|
48
|
48
53V-23340-00-90 Under Bracket CompNegro |
53V-23340-00-90 |
US $492.46 |
||
|
49
|
49
34X-23346-00-00 Bolt 1 |
34X-23346-00-00 |
US $1.07 |
||
| replacement | |||||
|
49
|
49
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
50
|
50
92506-06012-00 Screw |
92506-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
50
|
50
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
51
|
51
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
51
|
51
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
52
|
52
10V-2331E-01-00 Guide, Cable |
10V-2331E-01-00 |
from US $6.57 |
||
| replacement | |||||
|
52
|
52
10V-2331E-02-00 Guide, Cable |
10V-2331E-02-00 |
from US $7.65 |
||
