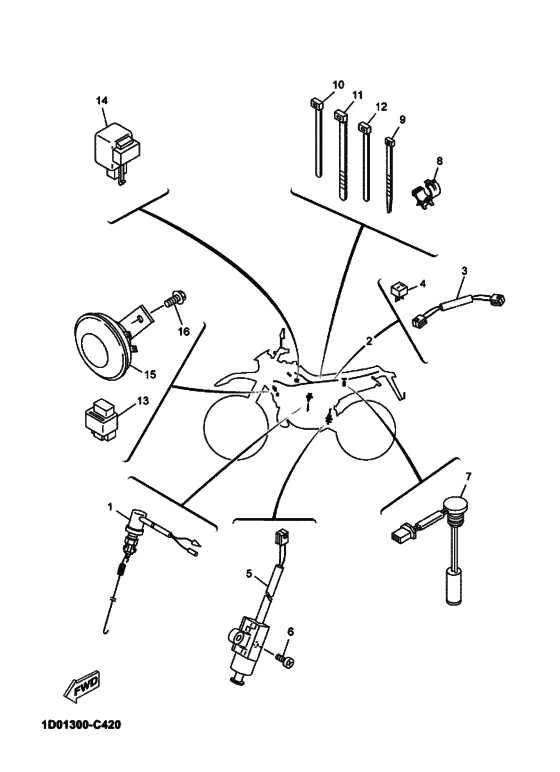

Electrical 2 Diagram Yamaha DT125 DT125X
- Year
- 2005
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 2C81
- Sales region
- Europe (020)
- Engine Capacity
- 125
- Color Variant
- A
- Model
- DT125X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4TP-82530-00-00
Stop Switch Assy
|
4TP-82530-00-00 |
— | ||
|
2
|
2
1D0-H2590-00-00
Wire Harness Assy
|
1D0-H2590-00-00 |
— | ||
|
3
|
3
5DS-H4148-00-00
Wire, Lead 1
|
5DS-H4148-00-00 |
— | ||
|
4
|
4
4YV-H1980-00-00
Diode Assy
|
4YV-H1980-00-00 |
— | ||
|
5
|
5
3LD-82566-50-00 Switch, Side Stand |
3LD-82566-50-00 |
from US $66.18 |
||
| replacement | |||||
|
5
|
5
3LD-82566-51-00 Switch, Side Stand |
3LD-82566-51-00 |
from US $56.36 |
||
|
6
|
6
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.42 |
||
|
7
|
7
3XP-85720-03-00 Oil Level Gauge Assy |
3XP-85720-03-00 |
from US $46.48 |
||
|
8
|
8
90464-20191-00 Clamp |
90464-20191-00 |
from US $1.81 |
||
|
9
|
9
90464-12X02-00
Clamp
|
90464-12X02-00 |
— | ||
|
10
|
10
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
11
|
11
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
12
|
12
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.52 |
||
|
13
|
13
25G-81950-01-00 Relay Assy (25G-01) |
25G-81950-01-00 |
from US $34.43 |
||
| replacement | |||||
|
13
|
13
25G-81950-02-00 реле в сборереле в сборе |
25G-81950-02-00 |
from US $33.05 |
||
|
14
|
14
3XV-83350-21-00 Flasher Relay Assy |
3XV-83350-21-00 |
from US $59.73 |
||
|
15
|
15
1D0-H3371-00-00 Horn |
1D0-H3371-00-00 |
US $83.86 |
||
|
16
|
16
9580M-06012-00 Bolt, Flange |
9580M-06012-00 |
from US $0.81 |
||
| replacement | |||||
|
16
|
16
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
