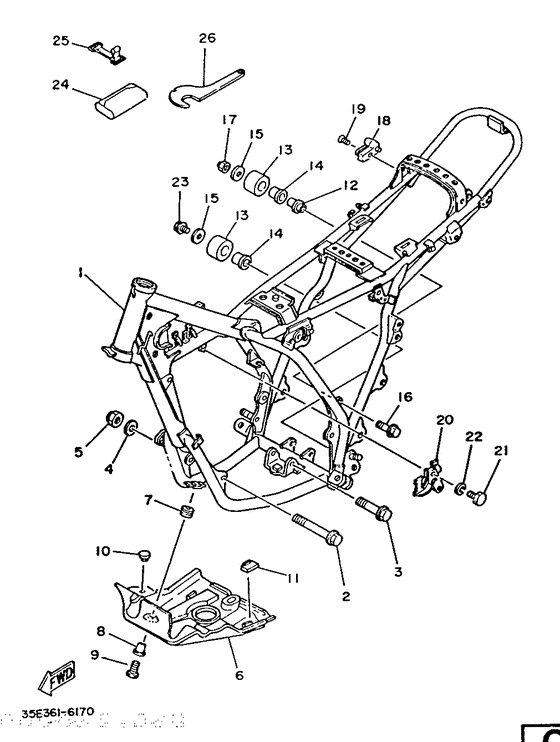

Frame Diagram Yamaha DT125 DT125L
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 35E
- Sales region
- Switzerland (999)
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
35E-21110-00-FH
Frame Comp
Fire red |
35E-21110-00-FH |
— | ||
|
02
|
02
90105-08222-00 Bolt, Flange |
90105-08222-00 |
US $5.81 |
||
| replacement | |||||
|
02
|
02
90105-08099-00 Bolt, Flange |
90105-08099-00 |
from US $5.81 |
||
|
03
|
03
90105-08221-00 Bolt, Flange |
90105-08221-00 |
from US $5.38 |
||
| replacement | |||||
|
03
|
03
90105-08721-00 Bolt, Washer Based(4Jg) |
90105-08721-00 |
from US $5.97 |
||
|
04
|
04
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.81 |
||
| replacement | |||||
|
04
|
04
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
|
05
|
05
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
05
|
05
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
06
|
06
10V-21471-00-00
Protector, Engine
|
10V-21471-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
08
|
08
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
09
|
09
97301-06025-00 Bolt |
97301-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
09
|
09
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
10
|
10
22W-24181-00-00 Damper, Locating 1 |
22W-24181-00-00 |
from US $3.89 |
||
|
11
|
11
10V-21485-00-00
Damper, Rubber 1
|
10V-21485-00-00 |
— | ||
|
12
|
12
2K7-2148A-00-00 Shaft |
2K7-2148A-00-00 |
from US $13.18 |
||
|
13
|
13
30X-22178-00-00 Tensioner |
30X-22178-00-00 |
from US $10.10 |
||
|
14
|
14
10V-22184-00-00 Bush |
10V-22184-00-00 |
from US $5.97 |
||
|
15
|
15
90201-08310-00 Washer, Plate |
90201-08310-00 |
from US $1.70 |
||
|
16
|
16
95806-08050-00 Bolt Hexagon |
95806-08050-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
95817-08050-00 Bolt, Flange |
95817-08050-00 |
from US $1.66 |
||
|
17
|
17
95606-08100-00 Nut, U |
95606-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
17
|
17
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.20 |
||
|
18
|
18
5A8-21308-00-00
Helmet Hanger Assembly
|
5A8-21308-00-00 |
— | ||
|
19
|
19
92706-06025-00 Screw, Flat Head |
92706-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
98707-06025-00 Screw, Flat Head |
98707-06025-00 |
from US $1.42 |
||
|
20
|
20
34X-21364-00-00
Holder, Cable Cylinder
|
34X-21364-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
97006-06012-00 Bolt |
97006-06012-00 |
from US $1.21 |
||
| replacement | |||||
|
21
|
21
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.39 |
||
|
22
|
22
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
23
|
23
95802-08012-00 Bolt, Flange |
95802-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
23
|
23
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
24
|
24
34X-28100-00-00
Tool Kit
|
34X-28100-00-00 |
— | ||
|
25
|
25
47X-82131-00-00 Band, Battery |
47X-82131-00-00 |
from US $9.92 |
||
| replacement | |||||
|
25
|
25
3TJ-82131-00-00 Band, Battery |
3TJ-82131-00-00 |
from US $10.96 |
||
|
26
|
26
1W1-28135-10-00 Spanner, Special |
1W1-28135-10-00 |
US $45.14 |
||
| replacement | |||||
|
26
|
26
10V-28135-00-00 Spanner, Special |
10V-28135-00-00 |
US $45.14 |
||
