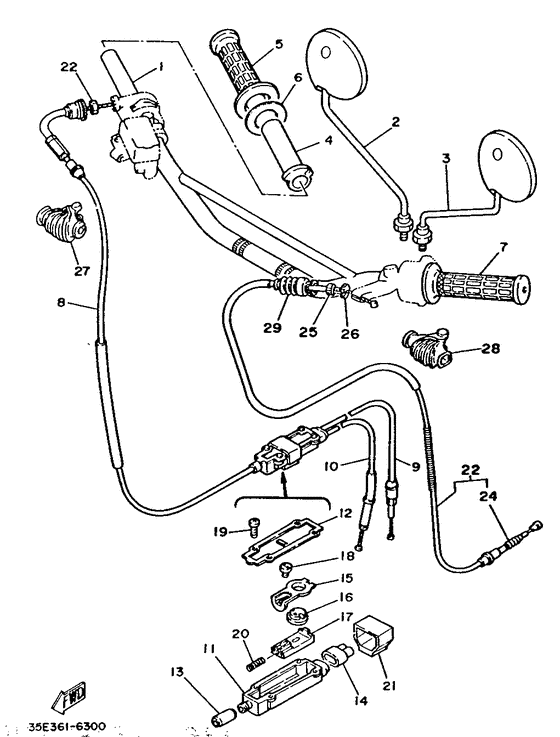

Steering handle & cable Diagram Yamaha DT125 DT125L
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 35E
- Sales region
- Switzerland (999)
- Engine Capacity
- 125
- Model
- DT125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
34X-26111-00-00
Handlebar
|
34X-26111-00-00 |
— | ||
| replacement | |||||
|
01
|
01
3WC-26111-10-00
Handlebar
|
3WC-26111-10-00 |
— | ||
|
02
|
02
1Y1-26290-60-00 Rear View Mirror Assy (Right) |
1Y1-26290-60-00 |
US $21.69 |
||
|
03
|
03
1Y1-26290-50-00 Rear View Mirror Assy (Right) |
1Y1-26290-50-00 |
US $21.69 |
||
|
04
|
04
434-26243-00-00 Tube, Throttle Guide |
434-26243-00-00 |
from US $8.93 |
||
|
05
|
05
33G-26242-00-00 Grip (Right) |
33G-26242-00-00 |
from US $14.88 |
||
| replacement | |||||
|
05
|
05
33G-26242-01-00 Grip (Right) |
33G-26242-01-00 |
from US $14.09 |
||
|
06
|
06
1M1-26249-01-00 Ring, Leaf |
1M1-26249-01-00 |
from US $3.68 |
||
|
07
|
07
33G-26241-00-00 Grip (Left) |
33G-26241-00-00 |
from US $21.05 |
||
| replacement | |||||
|
07
|
07
33G-26241-01-00 Grip (Left) |
33G-26241-01-00 |
from US $19.94 |
||
|
08
|
08
34Y-26311-00-00
Cable, Throttle 1
|
34Y-26311-00-00 |
— | ||
|
09
|
09
34X-26312-00-00
Cable, Throttle 2
|
34X-26312-00-00 |
— | ||
| replacement | |||||
|
09
|
09
34X-26312-01-00
Cable, Throttle 2
|
34X-26312-01-00 |
— | ||
|
10
|
10
34X-26321-00-00
Cable, Pump
|
34X-26321-00-00 |
— | ||
| replacement | |||||
|
10
|
10
34X-26321-01-00
Cable, Pump
|
34X-26321-01-00 |
— | ||
|
11
|
11
3J0-26261-00-00 Connector, Cable |
3J0-26261-00-00 |
from US $8.08 |
||
|
12
|
12
3J0-26262-00-00 Cap, Cble Connector |
3J0-26262-00-00 |
from US $7.29 |
||
|
13
|
13
360-26266-00-00 Boot, Cylinder |
360-26266-00-00 |
from US $2.09 |
||
|
14
|
14
34X-26272-00-00
Cap
|
34X-26272-00-00 |
— | ||
|
15
|
15
2T5-26274-00-00 Guide, Rotor |
2T5-26274-00-00 |
from US $5.99 |
||
|
16
|
16
2T5-26273-00-00 Rotor |
2T5-26273-00-00 |
from US $3.26 |
||
|
17
|
17
2T5-26244-00-00 Slider, Throttle |
2T5-26244-00-00 |
from US $3.72 |
||
|
18
|
18
2T5-26267-00-00 Pin |
2T5-26267-00-00 |
from US $2.02 |
||
|
19
|
19
90167-03004-00 Screw, Tapping |
90167-03004-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
97707-30514-00 Screw, Tapping |
97707-30514-00 |
from US $2.27 |
||
|
20
|
20
90501-05512-00 Spring, Compression |
90501-05512-00 |
from US $1.70 |
||
|
21
|
21
3J0-26393-00-00 Holder |
3J0-26393-00-00 |
from US $7.51 |
||
|
22
|
22
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $4.53 |
||
|
23
|
23
34X-26335-00-00
Cable, clutch
|
34X-26335-00-00 |
— | ||
|
24
|
24
363-26342-00-00
Boot, Cable
|
363-26342-00-00 |
— | ||
|
25
|
25
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
25
|
25
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
26
|
26
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
26
|
26
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
27
|
27
1T5-26372-00-00 Cover, Handle Lever 1 |
1T5-26372-00-00 |
from US $14.29 |
||
|
28
|
28
1E6-26372-00-00 Cover, Handle Lever 1 |
1E6-26372-00-00 |
from US $14.29 |
||
|
29
|
29
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
